Product Description

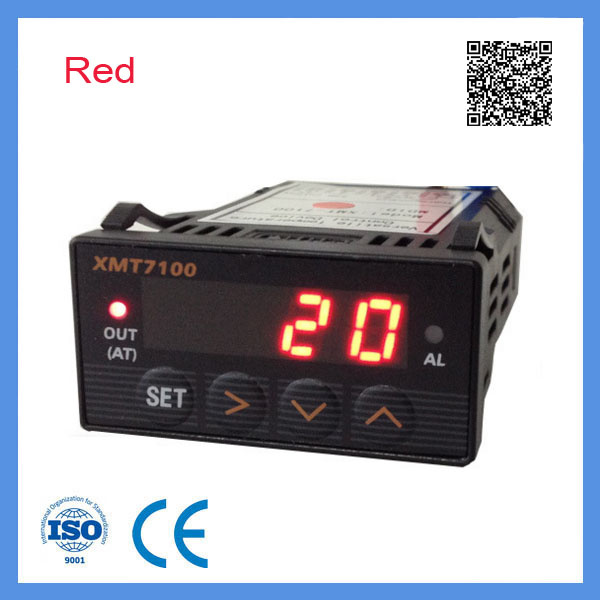

Shanghai Feilong Red LED display Intelligent PID Temperature Controller
intelligent digital pid temperature controller Product Descriptions:
Universal controller, works with either mechanical relay or SSR
Display: One lines, Four digits. ºF or ºC
Input type: TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50
Input range: K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display Resolution: 1°C, 1°F, or 0.1°C, 0. 1°F with Pt100
Accuracy:±0.2% or ±1 unit of full input range
Control mode: PID, On-Off
Output mode: Relay contact: 3A at 240 VAC. SSR: 8VDC, 40 mA
Alarm: Process high/low alarm
Power consumption: <2 Watt
Power supply voltage rating: 85~260VAC/50~60Hz or 18-360 VDC
Dimension 24 x 48 x 75 mm (1"x2"x3")
Product Features:
- Artificial intelligence enhanced PID algorithm provides precise control
- Displays temperature in either Fahrenheit or Celsius
- On/Off control mode for refrigerator, motor and solenoid valve control application
- Supports 10 different types of commonly used temperature sensor inputs
- Output configuration can be set by user for either relay contactor or SSR control
1. digital pid temperature controller Product Highlights
Thermocouple: T, R, J, B, S, K, E, Wre3-Wre25.
Thermo Resistor: Pt100, Cu50.
1 Relay output, 1 SSR controlled output.
Time proportional PID controlled output to either Relay or SSR
Three built-in algorithms that fit most control objects and various applications.
Temperature can be set to display in either Fahrenheit or Celsius degrees.
2. digital pid temperature controller Specifications
Supply voltage: 12V AC or DC
Power consumption: < 2 Watts.
Sampling speed: 4/sec.
SSR activated voltage: open circuit: 10V; short circuit: 40mA.
Accuracy: 0.2% of full scale.
LED Display: Red, 0.28 inch
Out of range indication: "EEEE".
Ambient temperature requirements: 0 to 50 C (32 to 122 F)
Humidity requirement: < 85% RH.
Relay Contact: 220VAC, 3A.
Controller dimensions: 48 x 24 x 75 (mm).
Opening for installation: 44 x 20 (mm)

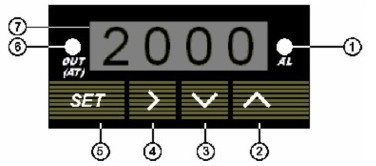

3. Panel Illustration and Description
Figure 2
1 -- AL, Relay J1 Indicator.
2 -- Select next parameter / value increment.
3 -- Selection previous parameter / value decrement.
4 -- Digit select / Auto tuning.
5 -- Setting / Confirm.
6 -- Output, controlled output indicator. (AT) Blinking during auto-tuning process.
7 - Temperature reading, degrees F or degrees C (as chosen)

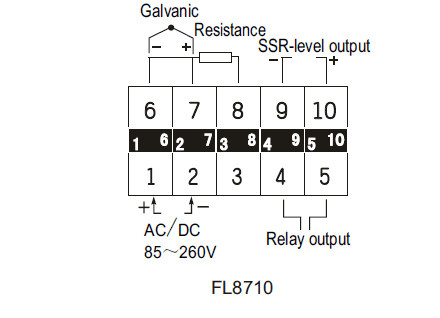

Wiring diagram:
