| Prod Model: |
QH-23 |
| Structure: |
Shear Beam Type |
| Capacity: |
5kg~500kg |
| Safe Overload: |
150%Fs |
| Operating Temperature: |
-20~55 |
| Cable Length: |
Can Be Choosed |
| Product Name: |
Bellows Type Load Cell Sensor |
| Pattern: |
Shear Beam Type |
Product Description

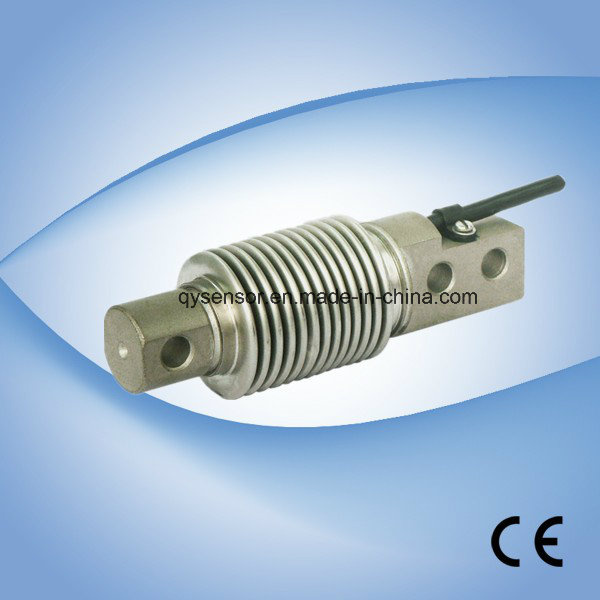

QH-23 load cells are available in the capacities from 5kg to 500kg.
Alloy steel & stainless steel construction with single shear beam type.
Sealed welding, waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, hopper scales and other electronic weighing devices.
Features:
Capacity :5kg to 500kg
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam
Low profile and nice exterior
Technical Specifications
| Specifications: |
| Capacity | kg | 5,10,20,30,50,100,200,300,500 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 200 |
| Rated output | mV/V | 2.0 ± 0.004 |
| Excitation voltage | Vdc | 5 ~ 12 |
| Combined error | %FS | ± 0.03 | ± 0.02 |
| Zero unbalance | %FS | ± 1 |
| Non-linearity | %FS | ± 0.02 | ± 0.016 |
| Hysteresis | %FS | ± 0.02 | ± 0.02 |
| Repeatability | %FS | ± 0.02 | ± 0.01 |
| Creep | %FS/30min | ± 0.02 | ± 0.016 |
| Input resistance | Ω | 365 ± 10 |
| Output resistance | Ω | 350 ± 3 |
| Insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| Operating temperature range | ºC | -20 ~ +65 |
| Compensated temperature range | ºC | -10 ~ +40 |
| Temperature coefficient of SPAN | %FS/10ºC | ± 0.02 | ± 0.02 |
| Temperature coefficient of ZERO | %FS/10ºC | ± 0.03 | ± 0.02 |
Electrical connection:
Excitation+ green Excitation- black Signal+white Signal-red
Feedback+blue Feedback-grey
Six-core shielded cable with polyethylene.
Cable diameter :¢5.7mm
Cable length:3.5 m
The cable length could be chose by customer's application.
