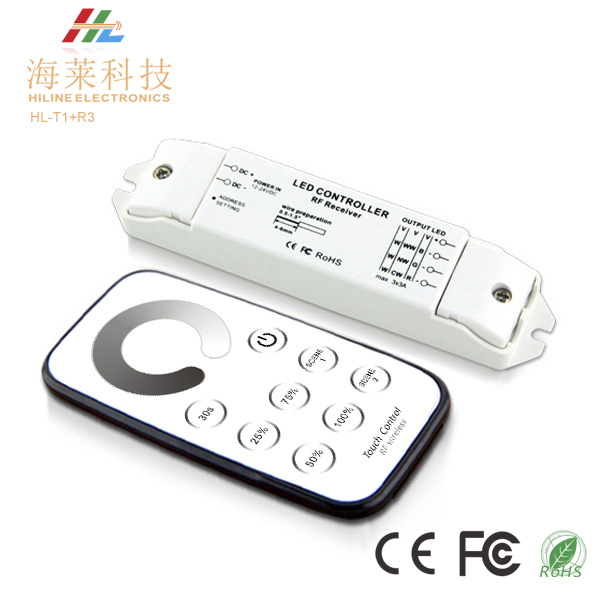

Single Color Dimmer Remote Control Hl-T1+R3

Name: Single Color Dimmer Remote Control Hl-T1+R3
Brand: all-electronics-online.com
SKU: 820372195
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 11.5-25/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

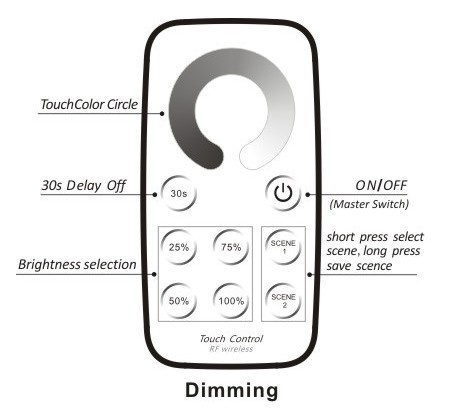

single color dimmer remote control HL-T1+R3 Controller features:

1.Automatically adapt to LED light which works from DC12V-24V.
2.The receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.
3.Using RF remote control , the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause ,change mode , brightness and speed ,etc.
4.10 strobe&fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash .

single color dimmer remote control HL-T1+R3 Controller parameter:

Model	Wireless Remote(T1
Working Voltage	3V(CR2032)
Working Frequency	433.92MHz
Remote Distance	40m-50m
Working Temp	-20-55ºC
Dimensions	L106×W56×H9(mm)
Weight(N.W.)	40g

Model	Receiver(R3)
Compatible Remote	T1/T2/T3/T5
Working Voltage	DC12V-DC24V
Output Current	Max 3A×3CH
Output Power	Max 108W(12V)/216W(24V)
Working Temp	-30ºC-55ºC
Dimensions	L135×W30×H20(mm)
Weight(N.W.)	48g

single color dimmer remote control HL-T1+R3 Controller size:

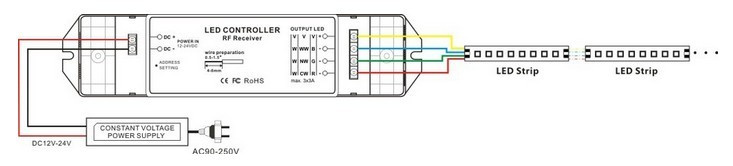

single color dimmer remote control HL-T1+R3 Controller wiring sample:

The Learning ID Method of Remote Control:

Remote control has been matched to the receiver before leave factory,if deleted accidentally,

you can learn ID as follow.

Learning ID: Press ID learning button on the receiver until the running light is on,then press

any key on the remote control,the running light flashes several times,activated.

Cancel ID: Press ID learning button on the receiver for 5 seconds.

Prod Model:	HL-T1+R3
Terminal:	Screw
Size:	L106W56H9/ L135W30H20
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V
