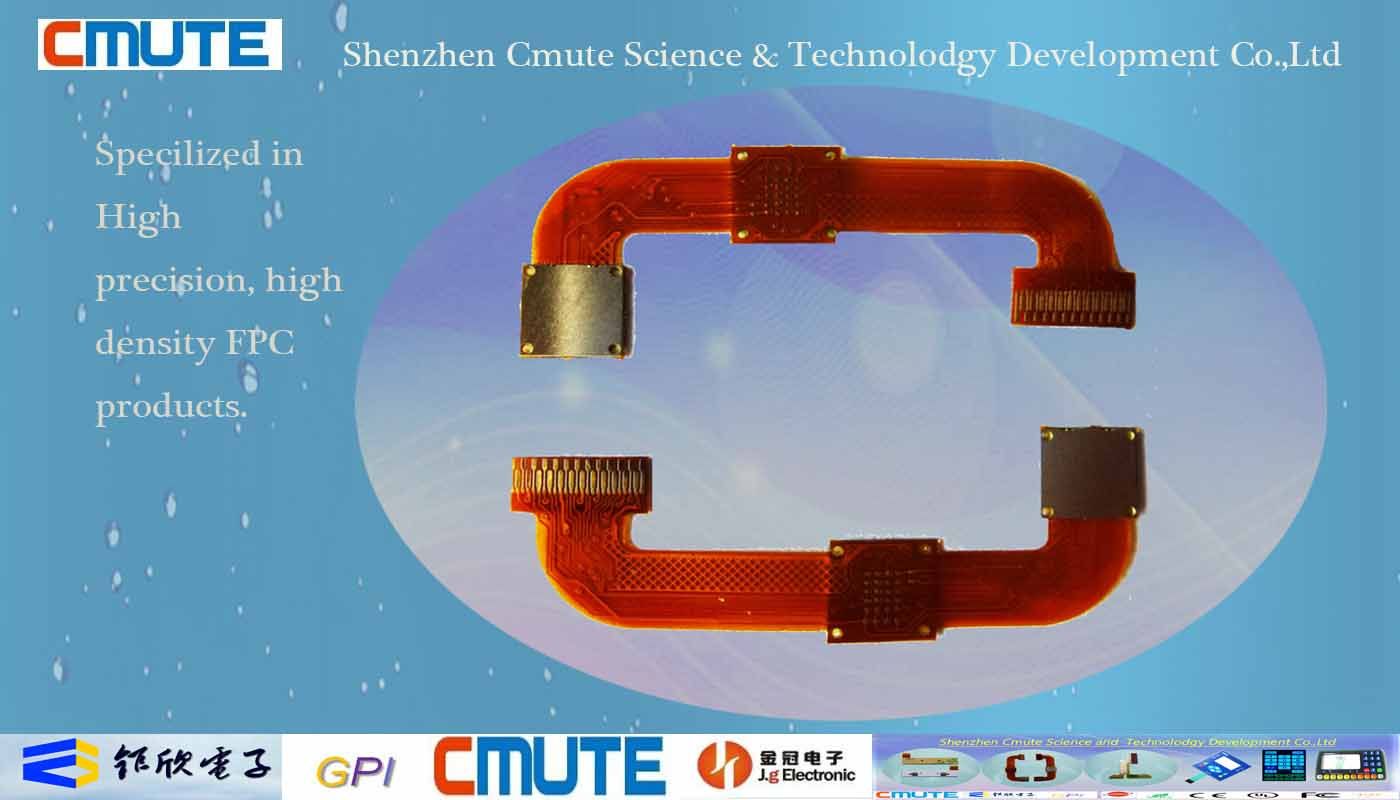

Single Layer Stainless Steel Stiffener Flex FPC Circuit

Name: Single Layer Stainless Steel Stiffener Flex FPC Circuit
Brand: all-electronics-online.com
SKU: 777059555
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Hi precision Flex FPC:
1.      Hi precision Flex FPC
2.      Gold plated finger, immersion gold, tin plated(all plating with Lead free)
3.      Resistance circuit available
4.      Capacity circuit available
5.      Anti electromagnetic interference
6.      SMT for components available
7.      Rohs , SGS standard
8.      ISO9001:2008 passed enterprise.
9.      Expert in mobile phone FPC, Dome switch, light touch switch, light guide switch, camera FPC assembly, various connect cables.

1.    Our Advantage:
1)   Group Financial support
2)   Strong R&D capability
3)   Low cost and competitive price
4)   Quick delivery
5)   100% computer test and inspection before shipment
6)   One stop purchase available for customer
7)   Whole solution design available
8)   All Products provide one year quality warranty

Certificate

ROHS,UL,ISO9001 etc

Product category	Flexible or combined with Rigid PCB board
Monthly output	5000 square meters.
Material	Polymide, Polyster, PET,PT,Rolling,Electrolysis
File format	CAD file(POWERPCB,PROTEL,PADS2000,AUTOCAD,ORCAD, Gerber file
Solder resist (solder mask)	Laminated cover film,Liquid photosensitive prevent weld ink,PI oil film
Surface treatment	Hot Air Solder Leveling,Tinning ,Sink tin ,gold-plating ,Chemistry sink gold ,Anti-oxidation ,Sink copper ,Tin copper
Finished Thickness	0.068-0.6mm
Circuit Layers	Single-sided/multi-layer(4-2 Layer)
Max thin wire/spacing	2-3mil
Min Hole Diameter	0.2mm
Maximum thickness/aperture ratio	≤5Max Outline
Max Outline	500×350mm
Profiling Process	0.1mm CNC punching accuracy 0.1 mm edge
Acceptance Standard	Guest standard ,IPC, GB standard (China)
Sample Leadtime	3 to 5 Days

Prod Model:	GPI-FFPC-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Precision:	0.015 mm Wire Width
Anti- Interference:	Anti- Electromagnetic Interference
Risitance Board:	Flex PCB with Resistance
Structure:	Double-Sided FPC
Material:	Polyester Film
Combination Mode:	Adhesive Flexible Plate
Application:	Control Panel
Conductive Adhesive:	Conductive Silver Paste

SZ Cmute Science & Technolodgy development Co., Ltd ( Group member of Ju xin ) is professional company which focus in manufacturing High-precision, High density and High reliable FPC & Membrane circuit and related PCB products, the company is located in DingFeng Science & Technolody park, No. 3 Industrial zone, Luo Tian of Songgang Twon, Baoan District, Shenzhen, Which has convenient transportation.

The company's products are widely used in communication, Audio & Video Products, Digital products, Electronics, Car electronics, Smart control equipments, Micro-Motor, Therapy Products, Automatic office equipment and many fields.

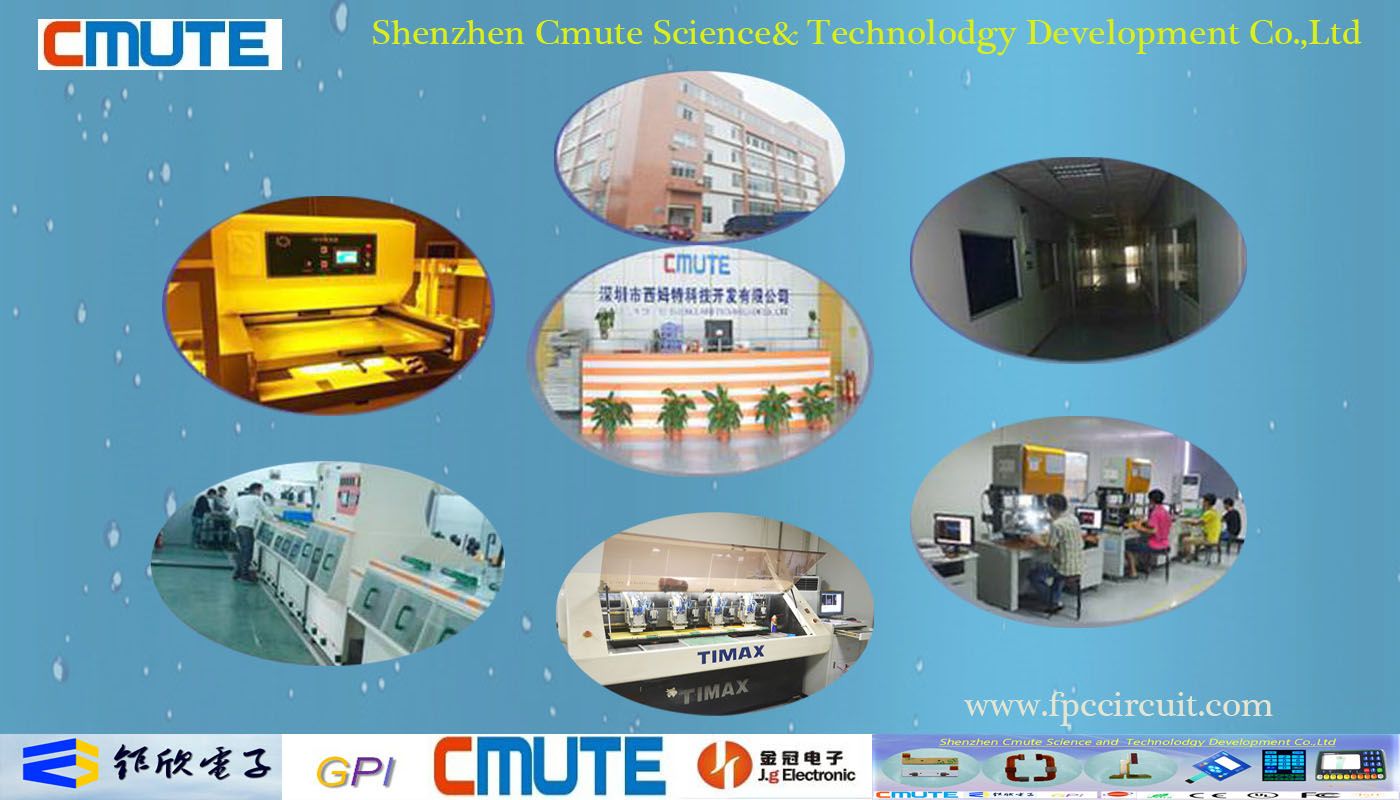

Cmute has the modern standard and high clearance facility with over 6000 square meters, which equipped well with advanced automatic production equipments and high precision test instruments.

We are an ISO9001: 2008 certified company, we provide our customers with our high precision & top quality products, also our quick response and high efficiency services has won many praise from worldwide clients.

Our group also have polydome, metal dome and membrane switch and PCB assembly factories in Dongguan & Shenzhen, so we can provide our customers with one stop shopping with competitive price.

At present, We have successful cooperation with Philips, Coolpad, Gionee, Malata and many famous brands.

We'll continuously improve our quality and services, Cmute, your best partner!
