SMT Weld 24 LED Double Layer Flex PCB Design

SMT Weld 24 LED Double Layer Flex PCB Design
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

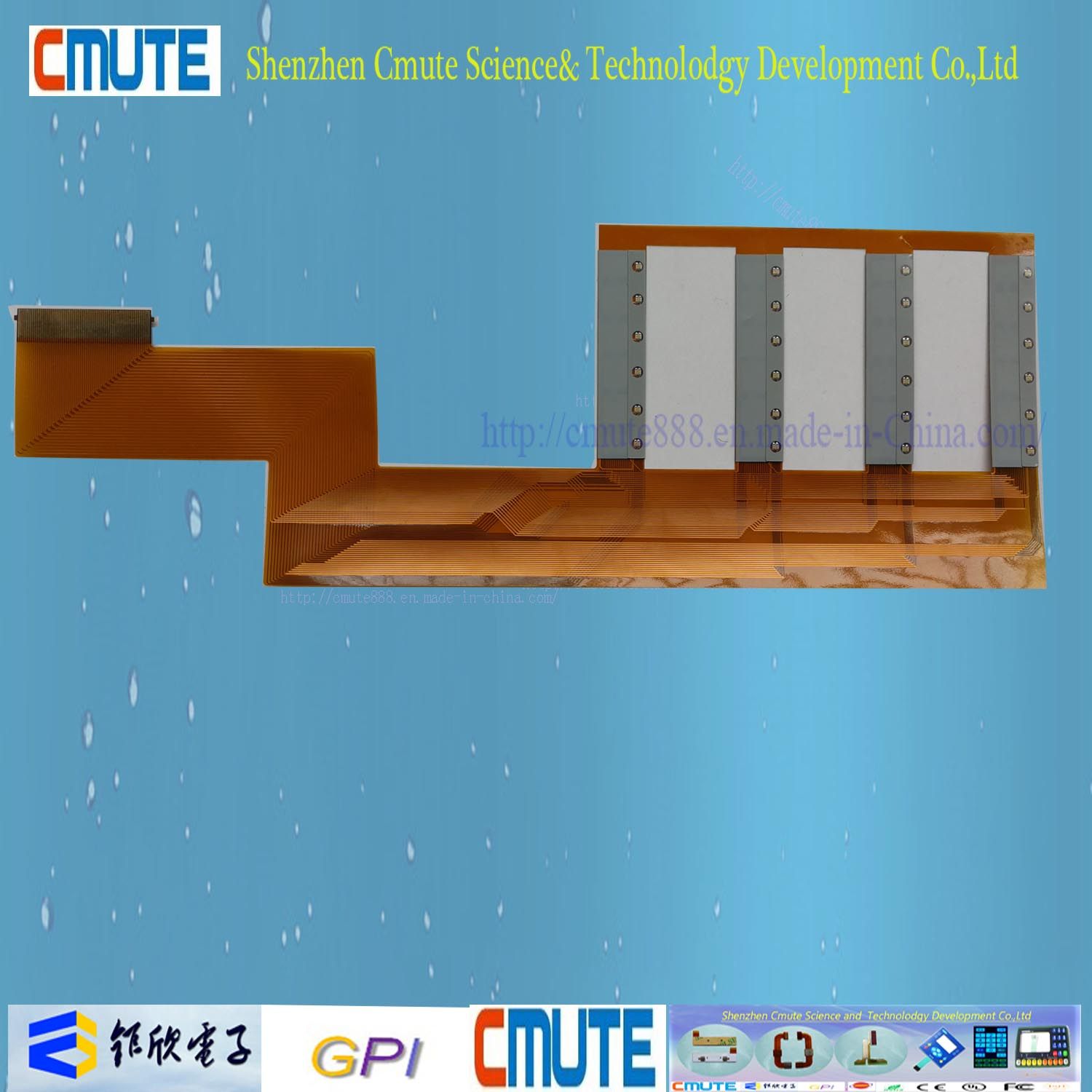

SMT weld 24 LED double layer flex PCB design
1.      Hi precision Flex FPC
2.      Gold plated finger, immersion gold, tin plated(all plating with Lead free)
3.      Resistance circuit available
4.      Capacity circuit available
5.      Anti electromagnetic interference
6.      SMT backlit Led and other components available
7.      Rohs , SGS standard
8.      ISO9001:2008 passed enterprise.
9.      Expert in mobile phone FPC, Dome switch, light touch switch, light guide switch, camera FPC assembly, various connect cables.

1.    Our Advantage:
1)   Group Financial support
2)   Strong R&D capability
3)   Low cost and competitive price
4)   Quick delivery
5)   100% computer test and inspection before shipment
6)   One stop purchase available for customer
7)   Whole solution design available
8)   All Products provide one year quality warranty

CertificateROHS,UL,ISO9001 etc

Product category Flexible or combined with Rigid PCB board
Monthly output 5000 square meters.
MaterialPolymide, Polyster, PET,PT,Rolling,Electrolysis
File formatCAD file(POWERPCB,PROTEL,PADS2000,AUTOCAD,ORCAD, Gerber file
Solder resist (solder mask)Laminated cover film,Liquid photosensitive prevent weld ink,PI oil film
Surface treatment Hot Air Solder Leveling,Tinning ,Sink tin ,gold-plating ,Chemistry sink gold ,Anti-oxidation ,Sink copper ,Tin copper
Finished Thickness0.068-0.6mm
Circuit Layers  Single-sided/multi-layer(4-2 Layer)
Max thin wire/spacing2-3mil
Min Hole Diameter0.2mm
  Maximum thickness/aperture ratio≤5Max Outline
Max Outline500×350mm
Profiling Process0.1mm CNC punching accuracy 0.1 mm edge
Acceptance StandardGuest standard ,IPC, GB standard (China)
Sample Leadtime3 to 5 Days



Prod Model: GPI-FPC-041
Backlit LED: SMT Weld Backlit LED
SMT Weld: SMT Weld LED
Flex PCB: LED Weld Flex PCB
High Precision: 0.015 mm Wire Width
Anti- Interference: Anti- Electromagnetic Interference
Resistance: Resistance Board Design
Anti-Interferance: Anti-Interferance and Magnetic Shield
Structure: Double-Sided FPC
Material: Polyimide
Combination Mode: Without Adhesive Flexible Plate
Application: Control Panel
Conductive Adhesive: Anisotropic Conductive Adhesive
SZ Cmute Science & Technolodgy development Co., Ltd ( Group member of Ju xin ) is professional company which focus in manufacturing High-precision, High density and High reliable FPC & Membrane circuit and related PCB products, the company is located in DingFeng Science & Technolody park, No. 3 Industrial zone, Luo Tian of Songgang Twon, Baoan District, Shenzhen, Which has convenient transportation.

The company's products are widely used in communication, Audio & Video Products, Digital products, Electronics, Car electronics, Smart control equipments, Micro-Motor, Therapy Products, Automatic office equipment and many fields.

Cmute has the modern standard and high clearance facility with over 6000 square meters, which equipped well with advanced automatic production equipments and high precision test instruments.

We are an ISO9001: 2008 certified company, we provide our customers with our high precision & top quality products, also our quick response and high efficiency services has won many praise from worldwide clients.

Our group also have polydome, metal dome and membrane switch and PCB assembly factories in Dongguan & Shenzhen, so we can provide our customers with one stop shopping with competitive price.

At present, We have successful cooperation with Philips, Coolpad, Gionee, Malata and many famous brands.

We'll continuously improve our quality and services, Cmute, your best partner!
