| Prod Model: |
HTW-81-FN7 |
| Stage: |
Single Stage/Multi-Stage |
| Fan-Speed: |
1 Output |
| Installation: |
60/82mm Distance Flush Mounted in 86 |
| Temperature Unit: |
ºC/F Configurable |
| Changeover: |
Heating/Cooling |
| Working Mode: |
Hold/Hold Until/Programmable |
| Push Buttons: |
Capacitive Touch Buttons |
| Voltage Supply: |
24VAC, 50/60Hz |
Product Description

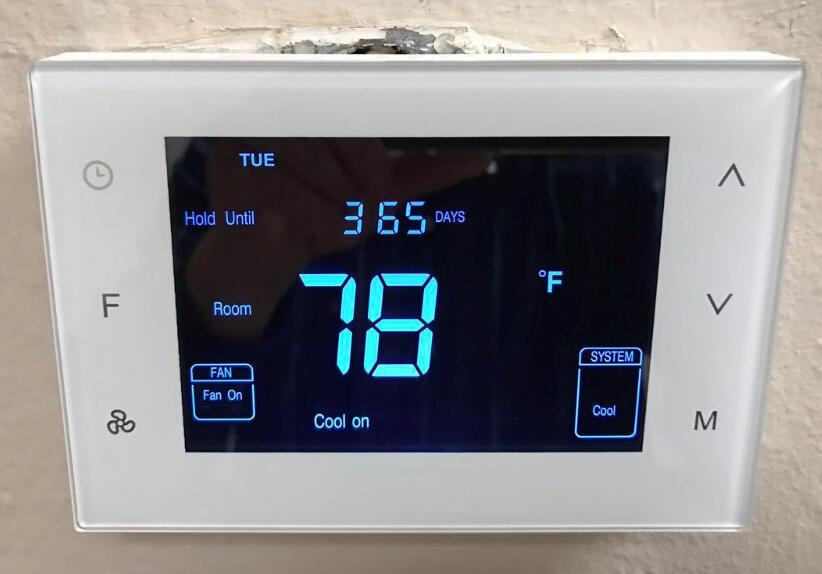

Single Munti Stage Heat Pump Thermostat
>> General
HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>>Features
* Elegant design with 4.3" LCD display
* Individual programming Schedules:7 days*4 time periods
* Tempered glass panel with capacitive touch buttons
* NTC thermistor
>>Specification
>>Power supply: AC24V, 50Hz
>>Power dissipation:2W Dimension: 136*94*26mm Output: <1A (Resistant load)
>>Temperature range: 41ºF -99ºF (5ºC -37ºC)
>>Display accuracy: ±0.5 ºC
>>Wiring: Terminals
>>Installation dimension: 60mm / 82mm (hole pitch)
>>Application
>>1H/1C (conventional)
>>1H/2C (conventional)
>>2H/2C (conventional)
>>2H/1C (conventional)
>>1H/1C (heat pump)
>>2H/1C (heat pump)
>>2H/2C (heat pump)
>>3H/2C (heat pump)
>>Wiring Diagram

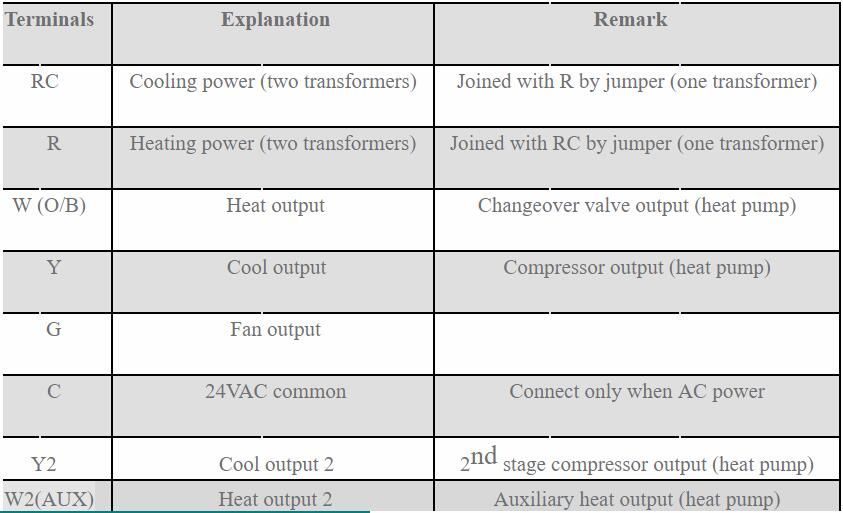

>>Terminal Instruction

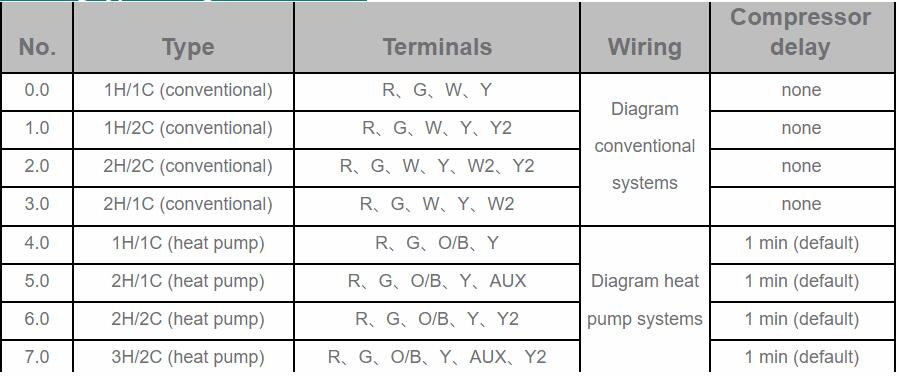

>>Controlling Type Configuration
FAQ: Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
