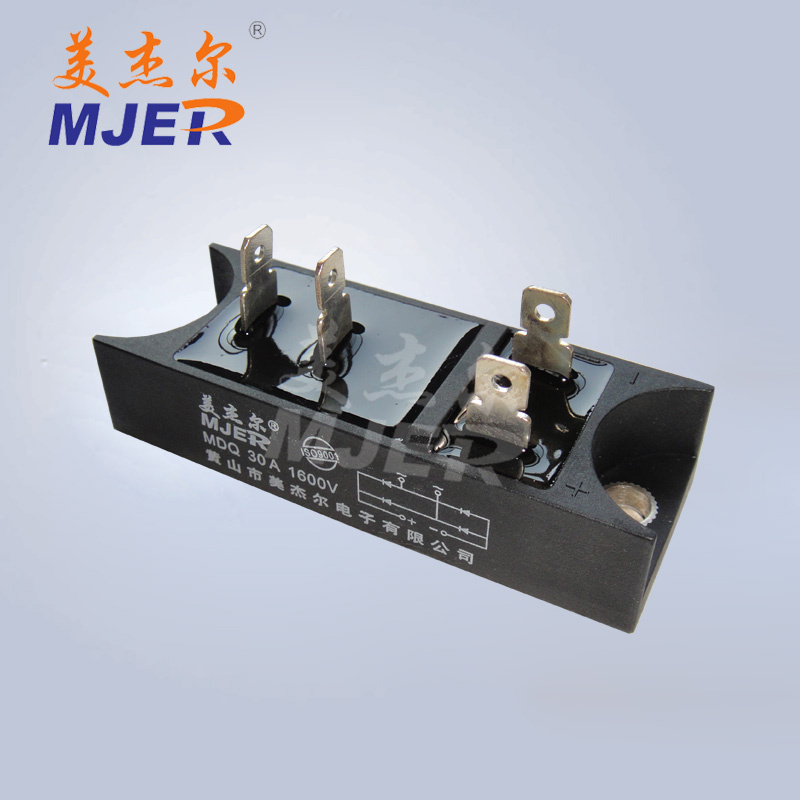

| Prod Model: |
MDQ30A1600V |
| Life: |
Over 1 Year |
| Certificates: |
Ce, ISO9001:2008 |
| Payment: |
T/T, L/C, Paypal |
| Lead Time: |
15days |
| MOQ: |
5PCS |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Standard |
| Application: |
Motor Control, Lighting Control |
| Model: |
Mdq |
| Brand: |
Mjer |
Product Description

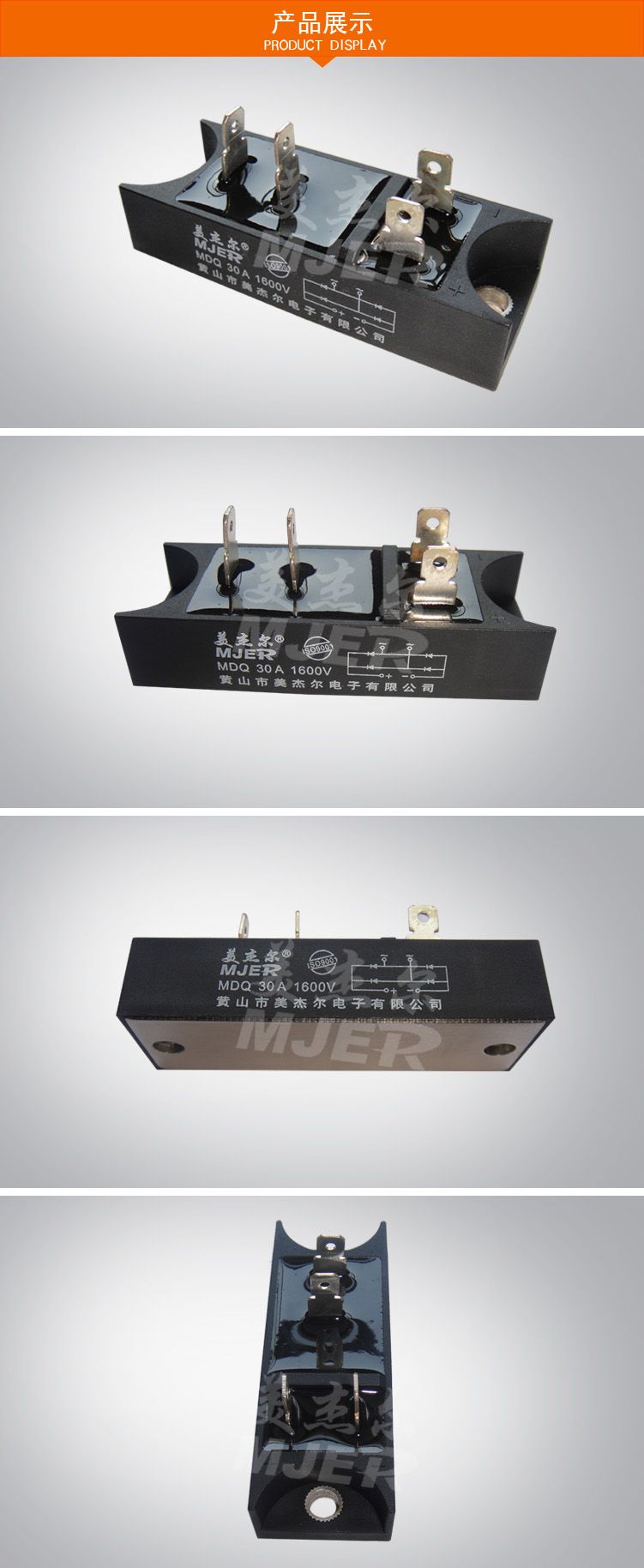

Single-Phase Rectifier Bridge Modules MDQ
MDQ30A MDQ60A MDQ75A MDQ100A MDQ150A MDQ200A MDQ300A MDQ400A MDQ500A
MDQ600A MDQ800A MDQ1000A
Typical Applications
AC & DC motor control
Various rectifying power supply
Industrial heating control
Dimming
Contactless switch
Motor soft start
Static reactive compensation
Welder
Frequency converter
UPS power supply
Battery charge and discharge
Features
Electrically-isolated chip and baseboard AC
2500V
Sealing package according to international
Standard
Full crimping structure, sensitive to
Temperature and power cycle duty
Modules under 350A with compulsive
Wind-cooling. Modules under 400A either
With wind-cooling or water-cooling
Convenient installation, use and maintenance
Compact and lightweight
Welding technique under the protection of
Vacuum and hydrogen gas

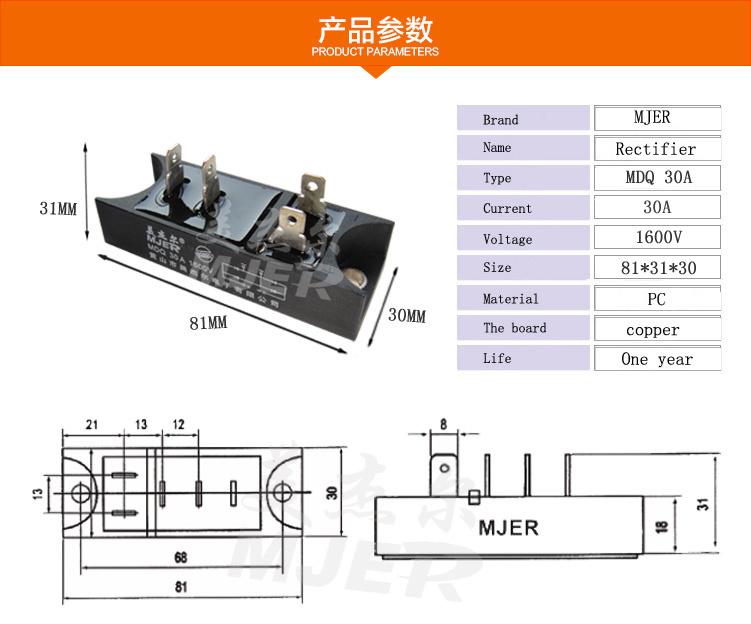

Specifications
VDSM/VRSM=VDRM/VRRM+200V
Unless specified otherwise IGT,
VGT, IH, VTM, VTM, Viso are measured
Values at 25º C. Other parameters
In the form are measured values at
Tjm. I2t=I2
TSMtW/2; TW
| Type | IT(AV) | IF(AV) | Tc | Vrrm | IRRM | Vtm/Itm | Tjm | Viso | Outline | | | |
| | | | | | | | | | | | | |
| | A | A | | V | mA | V/A | | V(AC) | | | | |
| MDQ25A | | 25 | 100 | | 50 | 8 | | 100 | | | | |
| MDQ60A | 60 | 20 | 100 | 600-2000 | 8 | 1.45/60 | 150 | 2500 | 102A 102A-1 | | | |
| MDQ75A | 75 | 30 | 100 | 600-2000 | 10 | 1.45/100 | 150 | 2500 | 102A 102A-1 | | | |
| MDQ60A | 60 | 30 | 100 | 600-2000 | 8 | 1.45/90 | 150 | 2500 | 102A 102A-1 | | | |
| MDQ110A | 110 | 400~2600 | 800 | 100 | 20 | 100 | 2.5 | 100 | 1.9/330 | | | |
| MDQ130A | 130 | 400~2600 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.9/410 | | | |
| MDQ160A | 160 | 400~2600 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.9/480 | | | |
| MDQ200A | 200 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/600 | | | |
| MDQ250A | 250 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/750 | | | |
| MDQ300A | 300 | 400~2600 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.9/900 | | | |
| MDQ400A | 400 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/1050 | | | |
| MDQ500A | 500 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/1500 | | | |
| MDQ800A | 800 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/2400 | | | |
| MDQ1000A | 1000
| 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/3000 | | | |
FAQ:Q1: What is your minumum order?
A1: To acheieve customers' satisfaction, we accept sample order, even one piece.
Q2: What is your lead time for sampling?
A2: It is about 1-3 working days after payment received.
Q3: What is your lead time for bulks?
A3: So far, for bulks order within 1000 pcs, our delivery time is about two week.
Q4: What is your delivery term?
A4: DHL/FEDEX/UPS/TNT/EMS
Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.
The products from our company are strictly under the national standard. We can mainly manufacture: Schottky / fast recover y diode, fast thyristor module, rectifier module, common thyristor module, thyristor, rectifier tube mixing module, non insulated thyristor, ordinar y rectifier module, non insulated thyristor module, non insulated rectifier module, single / three phase rectifier module, bridge rectifier, solid state relay, ZP rectifier tube, KP thyristor, KS bidirectional thyristor, ZX rotating rectifier tube, KX rotating thyristor, SS water cooling radiator, SF air cooling radiator, shunt, core, silicon rectifier, power semiconductor module, the power regulator, motor soft star ter (cabinet), power rectifier assembly series and so on.
All the employees from MJR follow to 'vir tuous talents, integrity work, scientific and technological innovation', 'people-oriented', and 'customer focused' as our philosophy to innovate and develop. We offer first class quality, reasonable price and best ser vice after sale to satisfy the customers for bilingual profits. Our ability is limited, but our creation is unlimited. We will keep working on innovation and constantly surpassing to optimize our own enterprise images. We are willing to establish our relationships with both new and old customers all over the world.
