Main Features:
1. Provide Line-Interactive design and true sine wave output
2. Equipped with Boost and Buck AVR to stabilize input voltage
3. User configurable input voltage range and output voltage
4. DC start function enables UPS to be started up without AC power supplied
5. Large built-in charger with power factor corrected 6. Enable to extend runtime with scalable external battery pack
7. Fully protection for overload, short-circuit and over temperature
8. RS232 & dry contact signal for power management software
9. SNMP card slot is available for 2KVA above
Applications: Ideal for Home, Office, Bank, ATM, Hub, Modem, Autorotation Door, Emergency light and POS systems.
Technical specifications

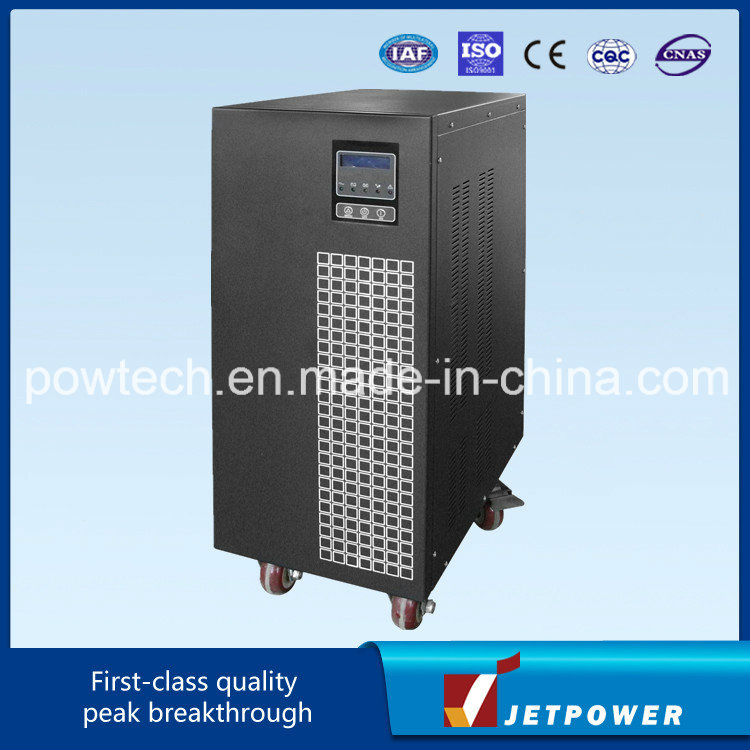

Horse series,0.5k-10kva
Model Name | 0.5KL | 0.5KS | 1KL | 1KS | 1.5KL | 1.5KS | 2KL | 2KS | 3KL | 3KS | NT-6KL | NT-8KL | NT-10KS |
| Capacity (VA / Watt) | 500VA/300W | 1000VA/700W | 1500VA/1050W | 1500VA/900W | 2000VA/1400W | 3000VA/2100W | 6KVA / 4.2KW | 8KVA /5.6KW | 10KVA/7KW |
| Overview | Power Factor | 0.6 | 0.7 | 0.6 | 0.7 |
| Outlook | Tower | Tower or Rack (3U) | Tower |
| Waveform | TRUE SINE WAVE |
| Input | Nominal Voltage | 230V |
| Voltage Range | 150-275Vac | 160V~299V |
| Frequency Range | 45HZ~60HZ |
| Socket Type | Socket+Fuse Holder | IEC 320 C19 Socket + Circuit breaker | Terminal block +CB |
| Output | Nominal Voltage | 230VAC |
| Voltage Range (AC Mode) | 200V~253V |
| Voltage Range (Batt. Mode) | 230±6% | 230V±3% |
| Frequency Range | (50/60Hz)±0.5% |
| Socket Q'ty (Backup+Surge) | IEC320-C13x2 or Customized by customer requirement | IEC 320 C14*8PCS ;IEC C320 C20*1PCS | Terminal block | IEC 320 C14*8pcs + Terminal block |
| Overload Protection | Overload Protection (AC Mode) | >120% 1min S/D | Alarm (Fuse or C.B Protection) |
| Overload Protection (Batt Mode) | 1>120%->15Sec S/D, >140%->immed UPS Off. | 110~140%->20Sec, >140%->5Sec. |
| Battery | Volatge | 12VDC | 24VDC | 36Vdc | 24VDC | 48V |
| Quantity | N/C | 12V7AH*1PCS | N/C | 12V/7ah*2pcs | N/C | 12v/9ah*2pcs | N/C | 12V7AH*4PCS | N/C | 12V12AH*4PCS | N/C | N/C | 12V12AH * 12PCS |
| Cold Start (DC Start) | Yes |
| Hot Replacement | Yes |
| Charger Current | 10Amax | 1.5Amax | 15Amax | 1.5Amax | 20A max | 1.5Amax | 20AMAX | 2A | 20AMAX | 2A | 30A MAX | 30AMAX | 5Amax |
| Charger Over Protection | Yes |
| Charging When UPS off | Yes |
| Data Line | Network Protection(Optional) | N/C | RJ45 (1 in/1 out) | N/C |
| Communication | Intelligent Interface | RS232 OR USB |
| SNMP slot | Optional |
| Display | LED Status | Line,Batt Mode/charging,Overload,Fault | Line,Batt Mode/charging,Overload/Fault;battery capacity; load size | Line/Batt Mode,AVR ,Battery cabacity ;Load size;Overload,Fault,Batt Replacement |
| LCD (OPTIONAL) | O/P voltage ,Input voltage and frequence;battery capacity ;Load size. | O/P voltage ,Input voltage and frequence;battery capacity ;Load size.Model |
| Conformance | Safety & EMC Approved | CE/TUV/FCC |
| Physicial | Dimension(DxWxH) | 122*193*360mm | 150*220*390 | 150*220*390 | 455x430x135(mm) | 420*190*335(mm) | 540*340*710(mm) |
| Net Weight | 6.5kg | 8.5kg | 9.5kg | 13kg | 11KG | 18KG | 28KG | 21.5KG | 34.5KG | 38.25KG | 60KG | 102KG |
| Ambient | Temperature | 0~45° |
| Related Humidity | 10%~90%(no condensation) |
| Altutide | 1500m |
L for long backup time,S for standard backup time
Specifications subject to change without prior notice
