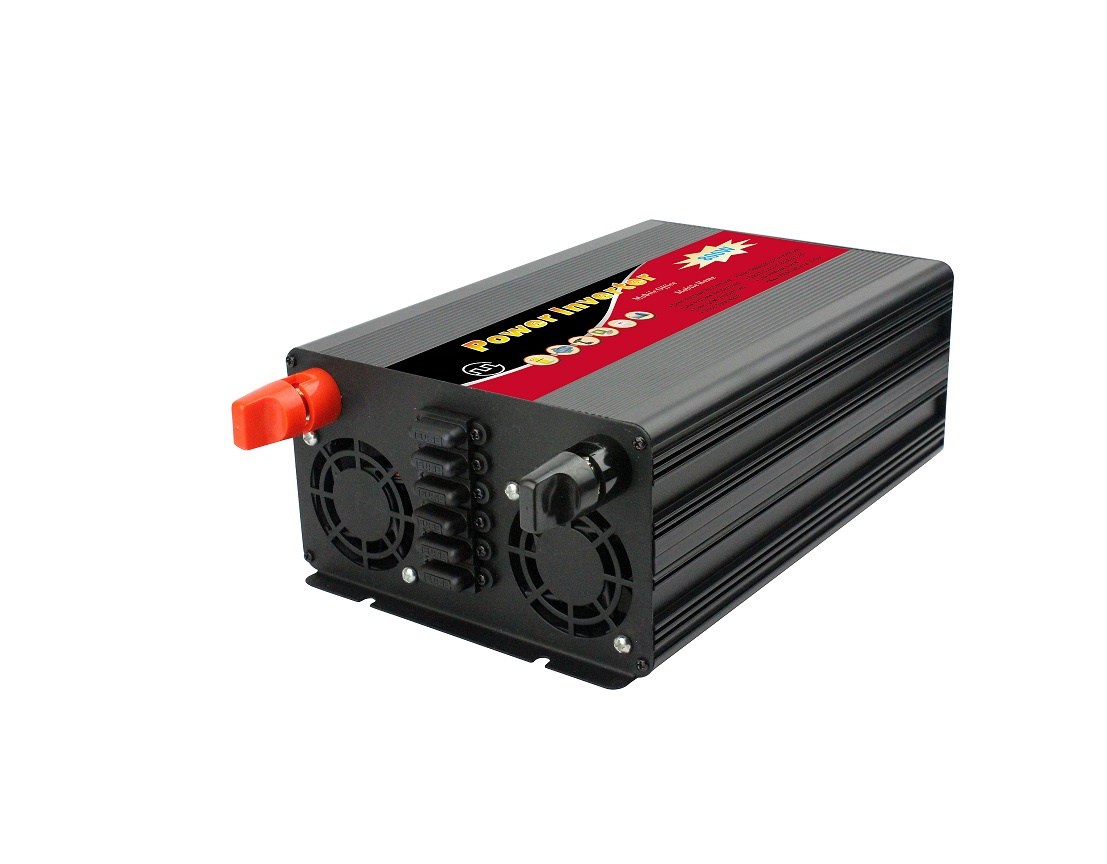

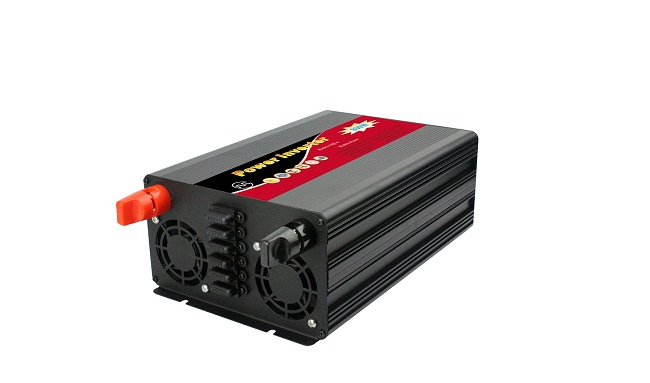

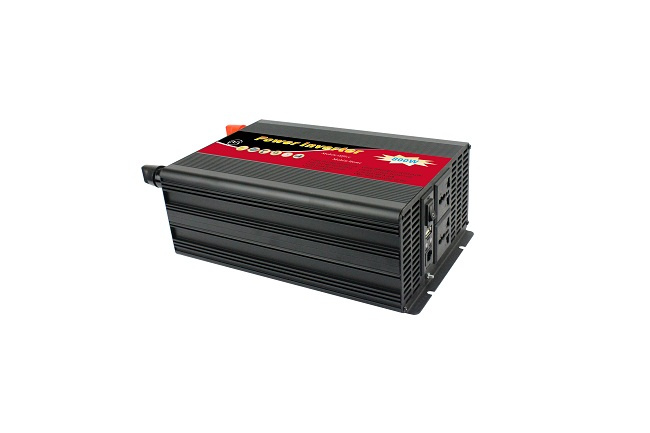

Sino-K DC-AC Solar off Grid Modified Sine Wave 800W Power Inverter
| Price: |
US $ 52.75-58.6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
SKM-800W |
| Input Voltage: |
12V/24V/48V DC |
| Output Voltage: |
AC110-120V/AC 220-240V |
| Output Frequency: |
50Hz/60Hz |
| Efficiency: |
90% |
| Rated Power: |
800W |
| Peak Power: |
1600W |
| Color: |
Black,Optional |
| Warranty: |
12 Months |
| Delivery Time: |
Normally One Week |
Product Description
Sino-k DC-AC Solar Off Grid Modified Sine Wave 800W Power Inverter
Output wave form: Pure sine wave output (THD<5%)
Power ON-OFF switch
Thermo control cooling fan
Two-color indicators display power and fault status
Max efficiency to 90%
Topology: Microprocessor
Low battery voltage, over battery voltage, lack-voltage alarm.
Protections:short circuit, overload, over temperature.
Approvals:CE mark / EMC / LVD/ RoHS
Applications:
You can use many place. such as laptop, camcorder, the Internet, GPS, camera, PDA, cell phone, mobile DVD, audio, battery charger, printers, monitors, game consoles, trucks, etc.
1. Field operations: lighting, drilling, disaster relief, commercial promotions.
2. Hospital emergency rescue: surgical lighting, equipment use, etc.
3. Home Appliances: Electronic energy-saving fluorescent, incandescent, small television sets, car refrigerator, etc.

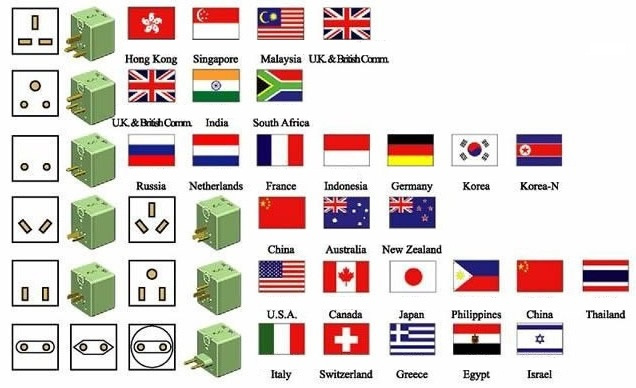

Socket type (When you release order, please let me know your choose, thanks!!)
Specification
| Model No. | SKM-800W |
| Input | DC voltage | 12V | 24V | 48V |
| No load current draw | <0.5A | <0.25A | <0.13A |
| Voltage range | 10.8~15VDC | 21~30VDC | 41~56VDC |
| Efficiency | 87%~90% |
| DC connector | Cables with Clips or Car Adapter |
| Output | AC voltage | 110V±10% / 220V±10% |
| Rated power | 800W |
| Peak power | 1600W |
| Waveform(THD) | Modified sine wave (<5%) |
| Frequency | 60Hz±0.3% / 50Hz±0.3% |
| Protection | Low voltage alarm | 10.5V±0.3VDC | 21V±0.5VDC | 42V±0.5VDC |
| Low voltage shut down | 10V±0.5VDC | 21V±0.5VDC | 40V±0.5VDC |
| Over voltage shut down | 15.5V±0.5VDC | 30.5V±0.5VDC | 60V ±0.5VDC |
| Over load | Shut Off Output |
| Over thermal | Shut Off Output Automatically |
| Fuses | Short Circuit |
| Environment | Working temperature | -10ºC~+50ºC |
| Working humidity | 10%~90% RH |
| Storage temperature | -30ºC~+70ºC |
| Package | Machine size | 210*150*70mm |
| | Packing size | 250*180*100mm |
| | N.W | 2.4kg |
| | G.W | 2.7kg |
| Others | Start | Soft Start |
| | Cooling ways | Cooling fan |
Company Information
Who we are

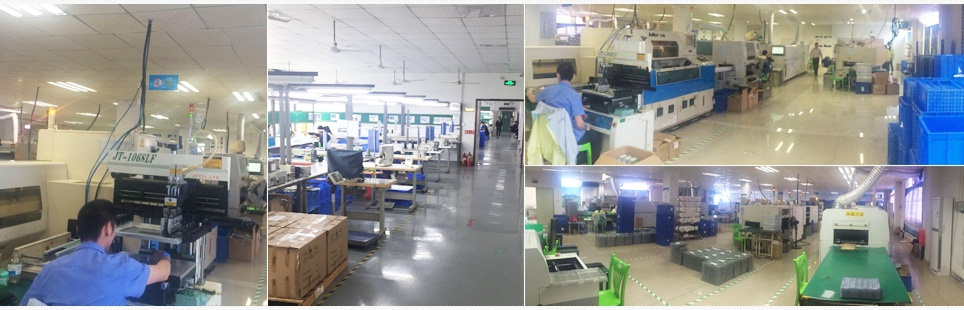

SINO-K is a professional high-tech manufacturer that integrates R&D, manufacturing and marketing of energy electronic series products,including DC-DC Power Converters,DC-AC Power Inverters, and Custermized services.The headquarters is located in Shenzhen. Shenzhen production workshop area of 850 square meters, and, in inland city, the production base with 6900 square meters.Our professional technicians and senior engineers with more than 10 years of energy product research and development, production management experience.
