SLA Batteries 12V 150ah Maintenance Free Battery
| Price: |
US $ 80-130/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SR150-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size 1: |
484*171*241mm |
| Size 2: |
551*110*287mm |
| Weight: |
42.5kg/45.0kg |
| Color: |
Black / Dark Gray |
| Cell: |
6 |
| Sealing: |
Glue Sealing |
| Flat: |
Flat Plate |
| Separator: |
AGM |
| Battery Case: |
ABS |
| Terminal Type: |
Lead |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Rectangle |
Product Description
We produce VRLA/SLA Battery, Industrial Battery, 12V Battery, Rechargeable Battery, Gel Battery, Deep Cycle Battery, sealed lead acid battery and so on.

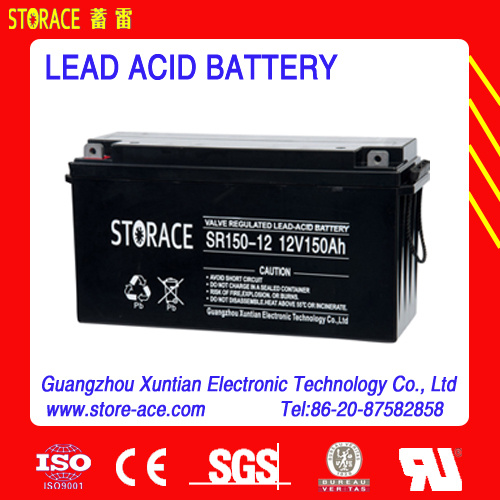

SLA Batteries 12V 150ah Maintenance Free Battery
(SR150-12)
Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.
Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.
Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.
Characteristics
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performance
4. Good impact-proof performance
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high currentProduction
Visitor & Exhibition
Data sheet | Capacity 77° F(25º C) | 20 hours rate(7.8A 10.8V) | 156Ah |
| 10 hours rate(15A 10.8V) | 150Ah |
| 5 hours rate(26.8A 10.5V) | 134Ah |
| 1 hour rate(106A 9.6V) | 106Ah |
| Internal Resistance | Full charged battery 77° F(25º C): 3.8mΩ |
|
| Capacity affected by Temperature (10 hour rate) | 104° F(40º C) | 102% |
| 77° F(25º C) | 100% |
| 32° F(10º C) | 85% |
| 5° F(-15º C) | 65% |
| Self-Discharge 68° F(20º C) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% |
| Capacity after 12 month storage | 60% |
| Max discharge current77° F(25º C): 900A(5S) |
| Charge (Constant Voltage) | Float: 13.6 to 13.8V/77° F/(25º C) |
| Cycle: 14.4 to 14.7V/77° F/(25º C) |
| Max Current: 37.5A |
Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.
Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.
After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.
Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
