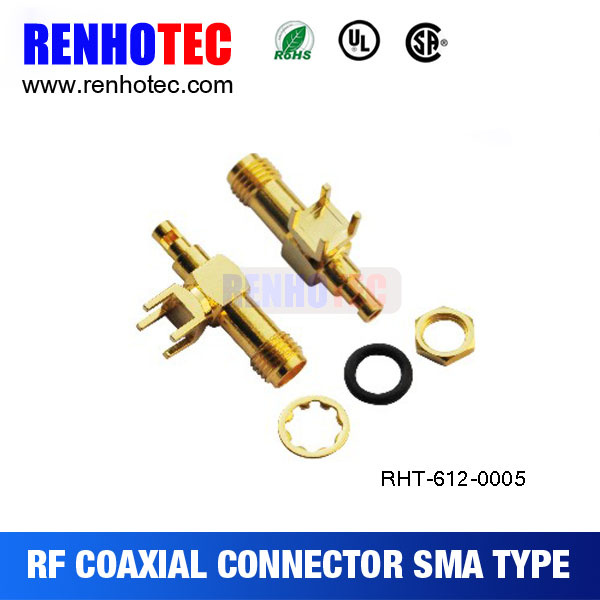

SMA Female PCB Type RF Coaxial Connector
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.
Major Technical Characteristics |
Temperature Range | -5 degree to +155 degree (PE cable -40 degree to +85 degree ) |
Vibration | 100m/S2 (10 to 2000 Hz), 10G |
Impendance | 50ohm |
Frenquency Range | DC-12.4GHz( Semi-Rigled Cable DC-18GNz) |
Working Voltage | 335V r.m.s at sea level |
Workstandinging Voltage | 1000V r.m.s at sea level |
Center Contact Resistance | ≤3Mohm |
Outer Contact Resistance | ≤2.5Mohm |
Insulation Resistance | ≥5000Mohm |
Center conductor Retention Force | ≤0.28N |
Coupling Nut Retention Force | ≥180N |
Insertion Loss | ≤0.15dB/6GHz |
VoltaggeStanding Wave Ratio : |
Straight | ≤1.10+0.02f |
Right Angle | ≤1.20+0.03f |
Dutability (Mating) | ≤500(cycles) |
Materials |
Body | Brass |
Contact | Brass |
Insulator | PTFE |
Suitable cable |
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
