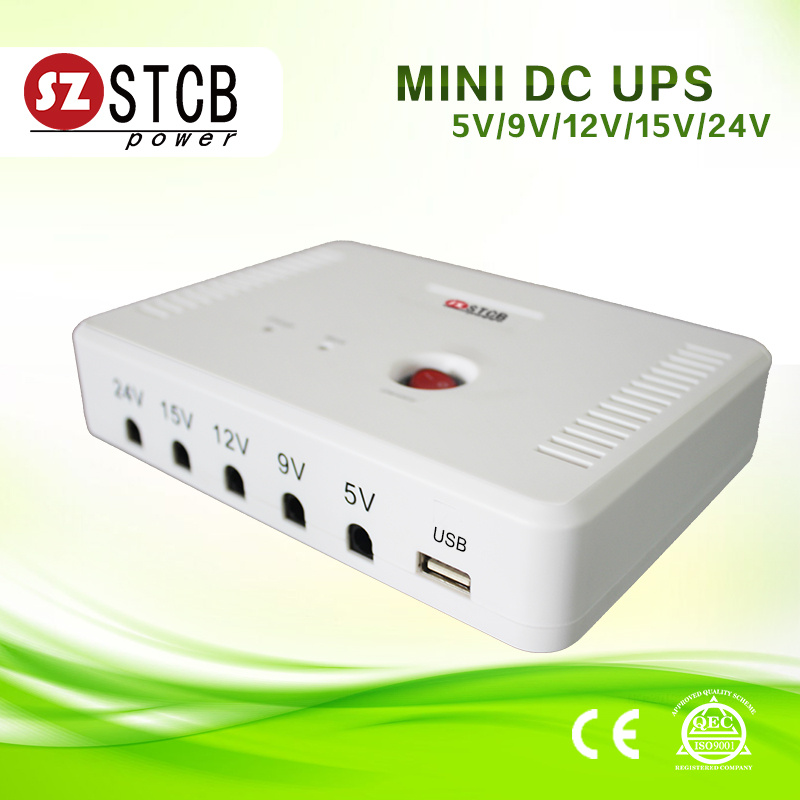

Small UPS for router modem phone 5v 9v 12v

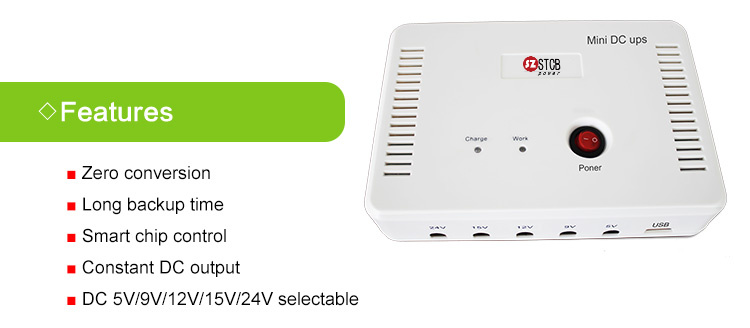

Main Features:
1. This system is equipped with intelligent control system of microprocessor and special control algorithm, which is small DC power system designed for power supplying of outwork, home use, camping in remote area and power shortage region, and so on.
2. The circuit uses a highperformance, highprecision 10bit ADC MCU as the master, with battery overcharge, over discharge, overload and short circuit protection with unique electronic antireverse protection, lowpower standby, USB output, light output overload protection, charging, discharging separate functions.

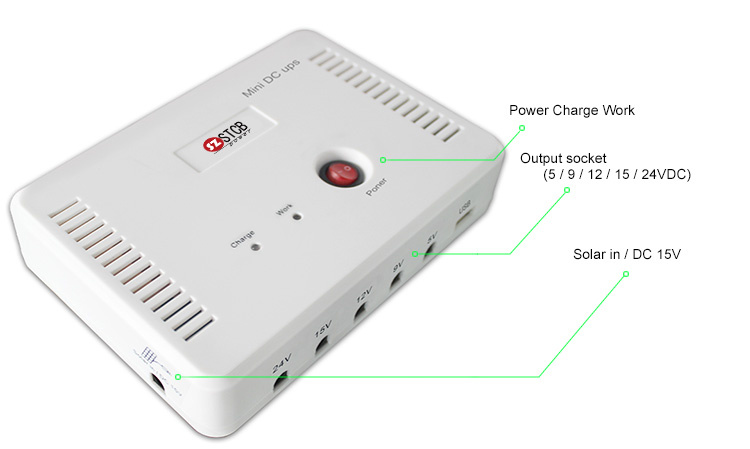

3. This unit is a pure DC output system, one USB 5V/2A output port, one DC 5V/2A output port, one DC 9V/2A output port, one DC 12V/2A output port, one DC 15V/1A output port, and one DC 24V/1A output port.
Product description:
1. Using SCM as the master, to achieve a battery charge and discharge of the intelligent control, overcharge, over discharge protection, short circuit protection, when the load is overloaded, the system will automatically shut down, automatically return to normal after a few seconds, effectively extending the battery life, battery over-ischarge and voltage rise control.
2. Ultra low power standby function: When ON / OFF switch is in the OFF state, the product enters a low power state.

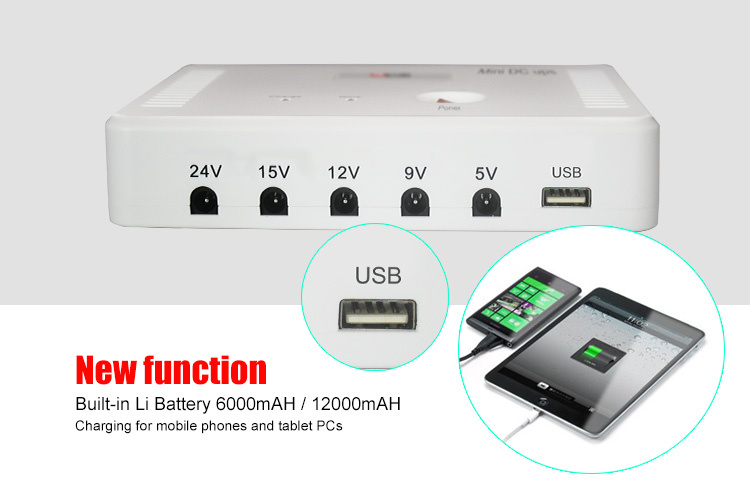

3. USB Output: When charging mobile phone/MP3/MP4/digital camera, the output current reach above 5V2A.
4.Charge and discharge independent function: charging, discharging without disturbing each other, can realized discharged while charging.
5. Charge and discharge indicate function: monitoring system charge and discharge status at any time, when it charging, the charging indicator turns red, when it discharging, the working indicator turns green, when it under voltage , the working indicator turns red.
6. When this unit charge by solar or adapter, please turn off the ON / OFF switch, don't turn on any load in order to reduce the charging time.
7. This product has overcharging and short circuit protection function(battery protection, it need be activated by charging), when it undervoltage, indicator light turns red.
Specification:| Model | SK- 313 | SK- 616 |
| Output Voltage (Optional) | 5V/9V/12V/15V/24V DC |
| Output Power | 24W |
| Battery Type | Lithium battery |
| QTY. & Capacity Of Battery | 2000mAH*3 | 2000mAH*6 |
| Rated charge current | 1A |
| Rated discharge current | 5V/9V/12V, 2A;15v/24V, 1A |
| System voltage | 11.1V |
| Over pressure protection | 12.6V |
| Under voltage | 11.4V |
| Over- discharge voltage | 10.5V |
| Protection circuit | Overcharge protection(system protection) |
| Overload and short circuit protection(battery protection) |
| Operating temperature | -10ºC+55ºC |
| Net Weight(kg) | 0.31 | 0.455 |
| Unit Dimension(mm) | 159*112*32 |
Company and Factory:
Project and Tradeshow:
SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.

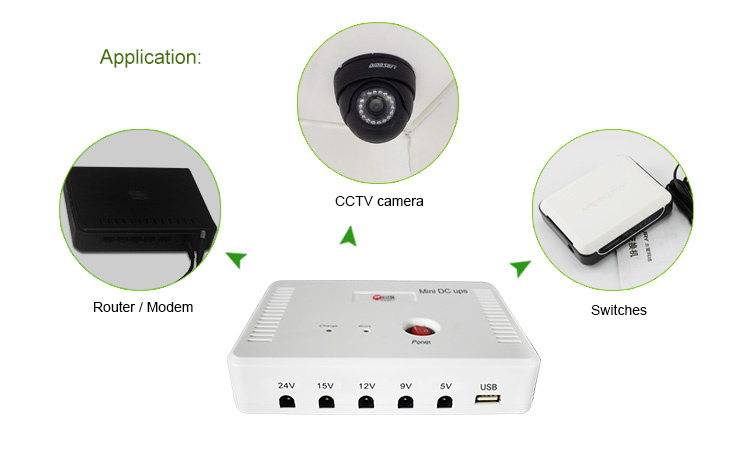

DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.
