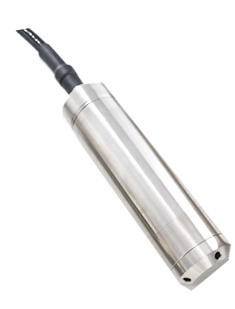

Smart Intelligent Submersible Liquid/Water Level Transmitter Probe (PCM266)

Name: Smart Intelligent Submersible Liquid/Water Level Transmitter Probe (PCM266)
Brand: all-electronics-online.com
SKU: 731838602
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Smart level transmitter

Probe insertion measurement mode, small size, simple and convenient installation

HART protocol option

RS485-MODBUS protocol option

Multi protection structure design, high protection ability

Corrosion resistant stainless steel adopted, applicable to various industry fields

Support configuration applications

PCM266 level transmitter is a fully sealed submerged type liquid level measuring instrument in full stainless steel design. The product adopts high stability and reliability piezoresistive OEM pressure sensor and high precision smart transmitter processing circuit, and applies precision digital temperature compensation technique and non-linearity correction technique. The waterproof cable is hermetically connected to the shell, and the breather pipe is set inside the cable, which can be used in liquid for a long time. The integrated structure and standardized output signal provide convenience for field use and automatic control. The product works in two wire system. It is compact, light-weighted, easy to install and use. It can directly replace the analog output transmitter of 4 ~ 20mA of two wire system. It is applicable to equipment matching and the measurement and control of static pressure level and liquid level in liquid tanks, sewages, industrial water, ponds, wells, rivers, sea, lakes, etc.

Pressure range
Pressure range	0.5m, 1m, 2m, 5m, 10m, 20m H₂O
Output signal
Output	4 to 20mA + Hart protocol \| 4 to 20mA + RS485-MODBUS protocol
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Typical)
Overpressure	150%F.S.
Supply	24VDC
Compensated temp.	0ºC - 60ºC (0m - 10m H₂O) \| -10ºC - 70ºC (10m - 20m H₂O)
Operating temp.	-20ºC - 85ºC
Medium temp.	0ºC - 100ºC
Storage temp.	-40ºC - 125ºC
Zero temp. coefficient	±1%F.S. (0ºC - 85ºC)
Span temp. coefficient	±1%F.S. (0ºC - 85ºC)
Long term stability	≤0.2%F.S.S./year
Housing material	Stainless steel 316L
Sensor material	Stainless steel 316L
Protection	IP68
Housing diameter	φ26.5mm
Weight	250g(approx)

Mechanical Drawing

How to order

Prod Model:	PCM266
Output:	4 to 20mA + Hart, 4 to 20mA + RS485
Supply:	24VDC
Operating Temp.:	-20ºC - 85ºC
Medium Temp.:	0ºC - 100ºC
Temp. Drift:	±1%F.S. (0ºC - 85ºC)
Housing Material:	316L
Sensor Material:	316L
Pressure Range:	0~0.5m...20m H2O
Accuracy Grade:	0.5%Fs
