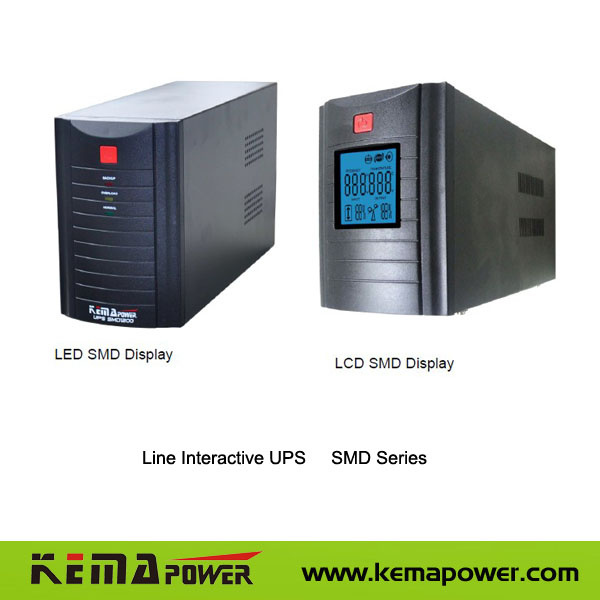

SMD 1500va Offline Line Interactive UPS with LED or LCD Display
| Price: |
US $ 56.32/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
SMD1500VA Offline Line Interactive UPS With LED or LCD Display*
I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 5%
* Capacity:500VA / 600VA /1KVA /1.2KVA/1.5KVA
* Output: PF 0.6, Modified sine wave
* Transfer Time:4-6ms normal ,max 8 ms
* DC Voltage:500VA/600VA:12VDC,1K/1.2K/1.5KVA:24VDC
* Bat.:500VA / 600VA:1PCS 7.2AH,1KVA /1.2KVA:2PCS,7.2AH 1.5KVA:2PCS 9AH or external battery.
* Full Bridge, CPU Control,USBKey featrues:1. CPU Control, SMD Technology, Line interactive UPS
2. Boost and Bluck AVR
3. SMD Technology
4. Protection for Short circuit, overload and battery low voltage
5. LED indication and audible alarm function
6. Silence Setup
7. Intelligent battery management
8. AUTO Restart function when AC recovers
9. Off charge function
10. Cold start function
11. RJ11/RJ45 is option
12. USB is option
13.LCD display is optionTECHNOLOGY SPECS | ITEM | MODEL | SMD1500 |
| Capacity | 1.5KVA/900W |
| Input | Input Voltage | 75-150 or 145-290+-5VAC |
| Input Frequency | 50/60HZ+-5% (AUTO Sensing) |
| Output | Wave Form | Modified Sine Wave |
| Output Voltage | 120/220/230/240VAC;50-127V,100-255V |
| Transfer Time | 4~6ms normal ,Max8Ms |
| Output Frequency | 50.0/60Hz±1.0Hz (Battery Mode),follow Main while AC Mode |
| Battery And Charger | Battery protection | FUSE |
| DC Voltage | 24VDC |
| Standard UPS | 2*9AH |
| Battery |
| Backup time | 40-80Minutes(1PC+15 inch CRT) |
| Protection | Over charge and over discharge,short Circuit,Overload |
| Display | LED display for AC/ DC mode and Fault. LCD is option |
| Alarm | Alarm while DC mode/ Battery low / Overload /Battery replacement. |
| Enviromental Characteristics | Ambient Temp. | 0 to 40 degree celsius |
| Relative Humidity | 0% to 90% |
| Storage Temp. | -15 to 40 degree celsius |
| Noise Level | 40dB(Max) |
| Product Size | 324*100*153 |
| Packing Size (MM) | 415*410*298 |
| PCS/CTN | 2 |
| Gross Weight /CTN (KG) | 25.6/CTN |
Back panel1.Output receptacles
2.AC input with AC fuse
3.USB computer
4. Network/fax/modem/surge Protection
Trade Show:
Certification:
| Prod Model: |
SMD 1500VA |
| Input Voltage: |
75-150 or 145-290+-5VAC |
| Output Voltage: |
120/220/230/240VAC;50-127V,100-255V |
| Transfer Time: |
4~6ms Normal ,Max8ms |
| Packing Size: |
425*400*454-422*264*275 |
| Product Name: |
SMD1500 Offline Line Interactive UPS |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overvoltage |
| Classification: |
Power |
| Brand: |
Kemapower |
