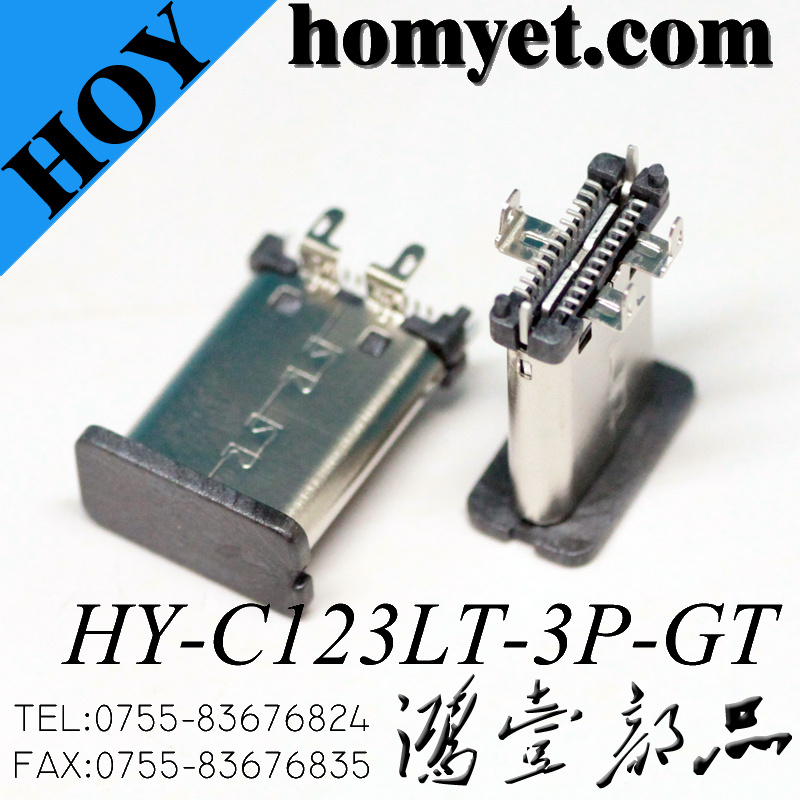

SMT Type 3pin Solder 3.1 USB Vertical C Type Receptacle Connector

Name: SMT Type 3pin Solder 3.1 USB Vertical C Type Receptacle Connector
Brand: all-electronics-online.com
SKU: 817741015
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 0.56-0.75/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specification:

1. Transfer speed up to 10Gbps
2. Support more flexible charging, power supply current increased from 1.5A to 3-5A, higher performance, faster charging
3. Availability enhancements, using a new interface style, the interface is exactly the same between the upper and lower ends, there is no need to distinguish between upper and lower, two directions can be inserted
4. Audio and video can be transmitted

Material:
1,Housing: UL94V-0 High Temperature Resistant Plastics
2,Shell: Ferroalloy/Copper alloy,Nickel-plated
3,Contact: Brass, Plating Gold in Mating Area, Tin-plated on solder tail area, Nickel under plating overall

Electrical performance:

Rating	DC30V 3A max
Temperature	-30ºC~85ºC
Contact Resistance	40mΩ max
Insulation Resistance	100MΩ min(DC250V)
Operating Force	5-20N
Life	10,000 cycles min

Application Range:
1. Digital devices: digital camera, digital video
2. Communication products: mobiles
3. Security Products: Videophone, Monitor etc.
4. Toy: electronic toy etc.
5. Computer products: Camera, laptop, Tablet PC etc.

Prod Model:	HY-C123LT-3P-GT
Gender:	Female
Application:	Microwave

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.
