SMT USB2.0 Male/Female Connector

Name: SMT USB2.0 Male/Female Connector
Brand: all-electronics-online.com
SKU: 785439925
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 0.001/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Details
Basic Info.
Model NO.: USBX-A4MX-XXM0-50
Interface Type:USB
Connector:USB
Universal:Universal

Data Transmission Function:Data Transmission Function
Surface:Smooth
Charging Function:Charging Function
Customized:Tranditional ,can customized
USB:2.0

Additional Info.
Packing:Reel
Standard:RoHs
Origin:Kunshan, China
Production Capacity:100000000PCS/M
Product Description
Features:
1. With A Type/B Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

ELECTRICAL CHARACTERISTICS:
Contact Currect Rating:	1.5Amp.
Dielectric Withstanding Voltage:	AC500V.r.m.s
Insulation Resistance:	1000MΩ Min at DC 500V
Contact Resistance:	30MΩ Max
Operation Temperature:	-55°C-+85°C

MATERIALS:
Insulator:	PBT+Glass Fiber UL 94V-0
Shell:	Cold Roller Steel
Contacts:	Copper Alloy

TARGET MARKET / APPLICATION
Computers, laptops, servers
Printers, external drive units, monitors
Digital cameras, TV's, set-top box
Modems, keyboards, instrumentation
Point-of-sale equipment
Data
Servers
External Storage Systems
Supercomputers
http://www.sz-econn.com/

Prod Model:	USBX-A4MX-XXM0-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
USB2.0 R/a Connector:	USB 2.0 PCB End

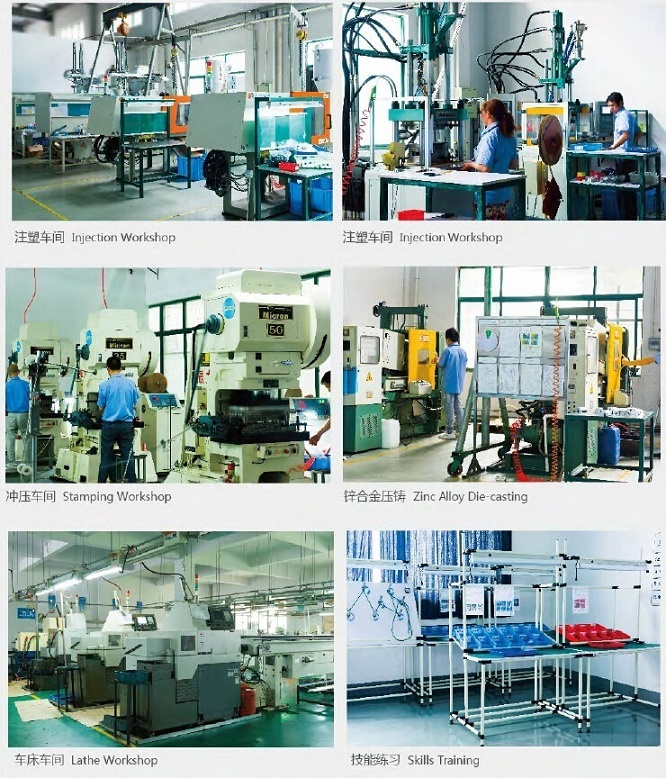

Suzhou e-Conn provide connectors through basic parts, mold-open, hardware, plastic parts, die casting, lathe parts and connector automation mainly to industry control equipment, vehicle, new energy, medical treatment, network communication fields, consumer electronics and ect...Meanwhile suzhou e-Conn have been set up 8000 square meter affiliate company in Hubei province as a supporting base of Suzhou market.

Stratety: Insist on differentiation& diversity.

Spirit: Profession, Preciseness, Practicability, Self-examination

Value: Integrity management, continuous improvement and eco saving

Vision: Be famous connector supplier in China.

Mission: Customer satisfaction and employee happiness oriented

Logo of e-Conn

Color:

Logo mainly adopted sky blue color represents wide, wise, prudent company style.

E:

Take the first alphabet from Electronic and Ethernet represents e-Conn is engaged with computer related electronic industry.

Conn:

Take half of the word conn from word connector represents our main products are integrated design and manufacture service of connector.

Retrography n:

Retrography n represents differentiation, diversity characteristic of e-Conn connector.
