Normal switching power supply:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
One year warranty
LED Driver:
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
YUEQING XIMENG ELECTRIC Co., Ltd specialized in designing R&D production And sale. We have Independent import and export rights. The main products are Switching power supply, LED driver power supply, AC/DC adapter, Electrical Plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, Long lifetime and so on. Our products are widely used in industrial automation field, indoor And outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling Transformer.
The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
Relying on high-quality imported components, advanced production techniques and perfect testing equipment, We create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia.
Our company focuses on innovating science and technology, wining a reputation with quality, And pursuing development with sincerity. We always update our equipment and create new Products constantly, striving to follow the core mind of Science and Technology to improve Life and supply wide customers with sincerity, high-quality products and highly efficient service.
| Model |

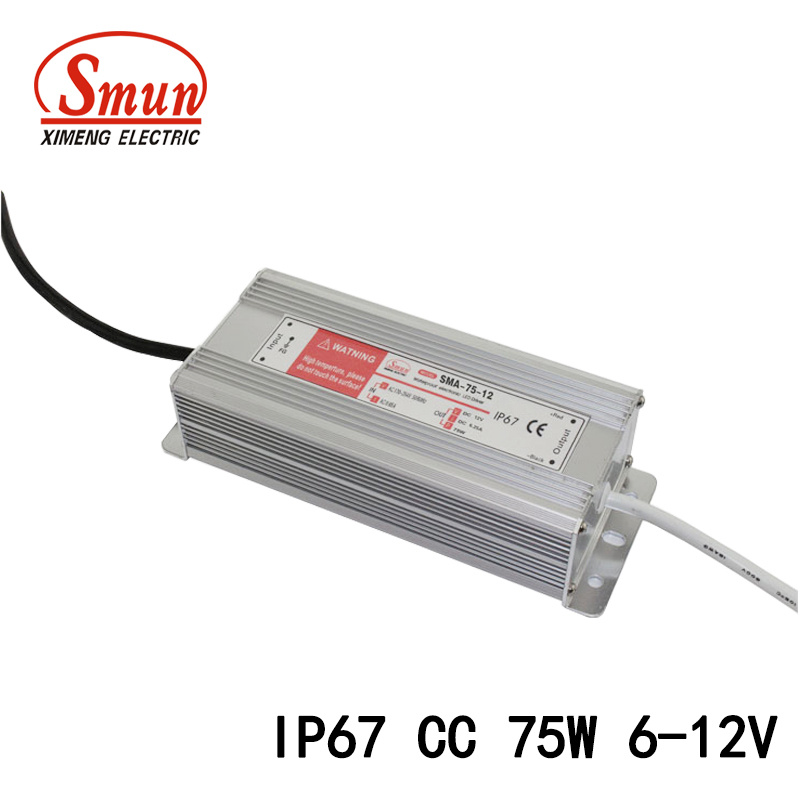

| SMA-75-12 | SMA-75-24 | SMA-75-36 |
| Output | DC output Voltage | 6-12V | 12-24V | 18-36V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 6.25A | 3.2A | 2.1A |
| Related Power | 75w | 75w | 75w |
| Wave&Noise | 50mVp-p | 50mVp-p | 100mVp-p |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 170-264VAC 47-63HZ |
| Input Current | 0.3A/230VAC |
| Efficiency | 75% | 82% | 85% |
| AC inrush current | Cold start current 30A /230VAC |
| Leakage current | <1mA/240VAC |
| Protection | Overload | Related output power 105-135% start overload protection |
| Protection type: hiccup mode, recovery after restart power |
| Over voltage | Reted output power 135-150% start over voltage protection |
| Protection type: hiccup mode, recovery after restart power |
| Over temperature | When temp of transistor inner is over 150, start over temp protection |
| pretect mode:cutoff output,auto-recover after temperature become normal |
| water-proof degree | IP67 |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/Ccle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA |
| Isolation resistance | I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| EMC standard | Fit EN55022 CLASSA |
| Size | size | L178*W68*H43mm |
| Package | 0.97kg, 30pcs/30kg |
