350W 24V 14.5A Enclosed Switching Power Supply With CE RoHS
· 1. AC input voltage range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Built-in cooling DC fan
· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on
· 7. 100% full load burn-in test
· 8. 2 years warranty
| MODEL | S-350-5 | S-350-7.5 | S-350-12 | S-350-15 | S-350-24 | S-350-60 |
| OUTPUT | DC VOLTAGE | 5V | 7.5V | 12V | 15V | 24V | 60V |
| VOLTAGE TOLERANCE | ± 2% | ± 2% | ± 2% | ± 2% | ± 1% | ± 1% |
| RATED CURRENT | 50A | 40A | 29A | 23.2A | 14.6A | 6A |
| CURRENT RANGE | 0-50A | 0-40A | 0-29A | 0-23.2A | 0-14.6A | 0-6A |
| RATED POWER | 250W | 300W | 348W | 348.3W | 350.4W | 360W |
| RIPPLE & NOISE(MAX) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 240mVp-p |
DC VOLTAGE
ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| SETUP, RISE, HOLD UP TIME | 600ms, 30ms, 20ms |
| INPUT | VOLTAGE RANGE | 85~130/170~264VAC Selected by Switch |
| AC CURRENT | 6.5A/115VAC 4A/230VAC |
| EFFICIENCY | 74% | 79% | 82% | 82% | 83% | 86% |
| INRUSH CURRENT | Cold start 50A |
| LEAKAGE CURRENT | < 3.5mA/240VAC |
| PROTECTION | OVERLOAD PROTECTION | 110%~150% Shut down O/P voltage, re-power on to recover |
| OVER-VOLTAGE PROTECTION | 115%-135% |
| HIGH TEMPERATURE PROTECTON | 115%-135% |
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10C~+50C; 20%~90 %RH |
| STORAGE TEMP. & HUMIDITY | -20C~+85C; 10%~95 %RH |
| VIBRATION | 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes |
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
| STANDARDS | SAFETY STANDARDS | Design refer to UL1950, EN60950 |
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 |
| OTHERS | WEIGHT | 0.9Kg |
| PACKING | 20pcs/19.7Kg |
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. |
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz

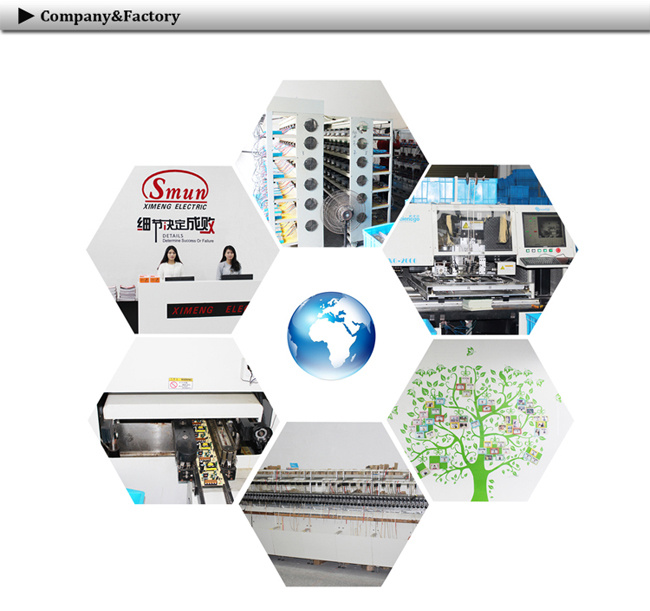

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
