Solar Battery 12V7ah Long Time Cycle Battery for UPS Battery
| Price: |
US $ 20-130/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Solar Battery 12V7AH Long Time Cycle Battery For UPS Battery
Company Profile
Dongjin Group, found in 1993, specialize in research, development, manufacturing and sales of lead-acid battery including globally known KINFON and DONGJIN brand batteries. In 2012, our company establish factory in Jiangxi covered area of more than 200, 000, and in 2016 start the biggest battery production factory in Bangladesh with totally area more than 40000 square meters.With independent R&D team, company have adopted advanced production equipment and testing methods, and effectively guarantee the quality of products, products with high capacity small volume, light weight, long lifespan, high performance, with excellent performance won the majority of consumer recognition and dependence. Widely used in automobiles, electric vehicles, electric power, telecommunication, UPS system, EPS system, security, electric tools, emergency lighting and etc. fields.Product ParametersBattery Specification | Battery Characteristics |
Nominal Capacity | 12V | Capacity | 20hr | 10AH |
Nominal Capacity(2hr) | 7AH | 5hr | 8.5AH |
Dimmensions | L(mm) | 151 | 3hr | 7.8AH |
W(mm) | 65 | 2hr | 7AH |
H(mm) | 93.5 | Open-circuit Voltage | 13.1-13.5 |
TH(mm) | 99 | | Float Charging | 13.5-13.8 |
Weight(kgs) | 1.9-2.1 | Cycles V | 14.5-14.8 |
Container Material | ABS | Max Discharging Current(A) | 60A(5S) |
Internal Resistance(mΩ) | ≤15 | Max Charing Current(A) | 1.7A |
Capacity at different temperature | 40ºC | 102% | Remain Capacity(2hr) | 1Month | 90% |
25ºC | 100% | 3Months | 80% |
0ºC | 85% | 6Months | 60% |

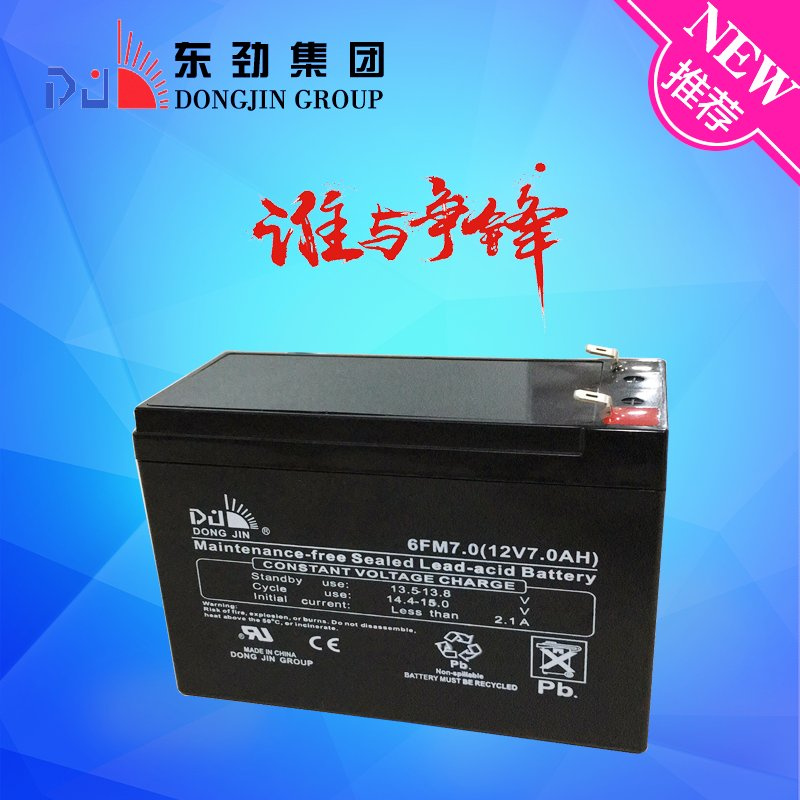

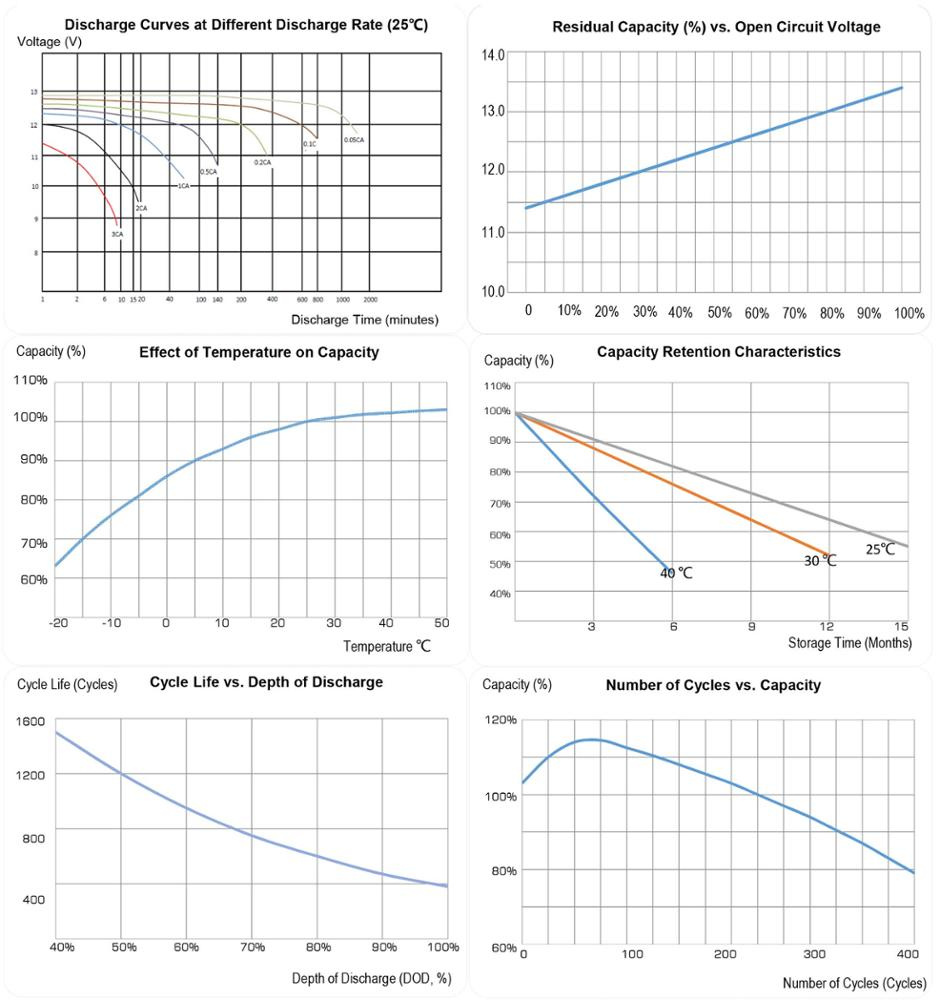

Charging Curve | Battery Picture |
12V7AH(1pcs/set)
Phase I:The maximum charging current is 1.7A,voltage gradually increase to 14.4V.
Phase II:Charging voltage gradually increases from 14.4V to 14.7V,when charge current gradually decreases to around 0.40-0.50A,converted to float (trickle)charge.
Phase III:Constant charge Voltage13.75V. |

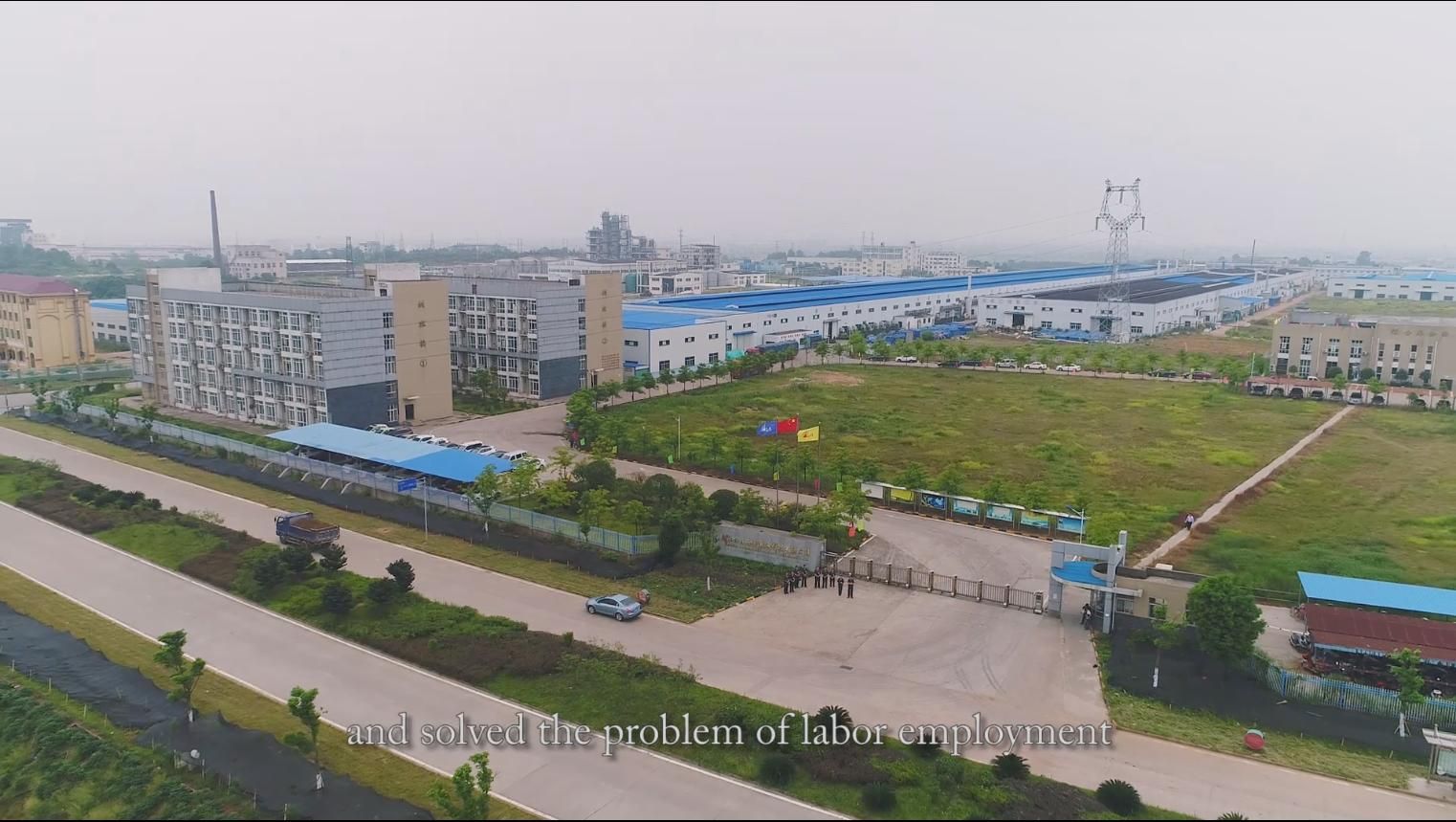

Main ProductFactory View
Company Show
FAQ1.Q:May I take some samples to test before placing the order?
A:yes,we can send you a sample to you for test.
2.Q:Can you put my loge on the unit?
A:Yes,we can satisfy you to put the logo on the unit.
3.Q:Why our price competitive.
A:Because the lead plate,battery case ect,all battery accessories all from our produce.
4.Q:Can the price be cheaper?
A:Yes,you will be offered a good discount for big amount
| Prod Model: |
6FM7 |
| Certificate: |
SGS/MSDS |
| OEM/ODM: |
Available |
| Payment: |
T/T |
| Weight: |
1.9-2.1kg |
| Warranty: |
12 Month |
| Color: |
Black |
| Sealed Type: |
Sealed |
| Capacity: |
7ah |
| Delivery: |
25 Days After Deposit |
| Case: |
ABS |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Dongjin Group, found in 1993, specialize in research, development, manufacturing and sales of lead-acid battery including globally known KINON and DONGJIN brand batteries. In 2012, our company establish factory in Jiangxi covered area of more than 200, 000, and in 2016 start the biggest battery production factory in Bangladesh with totally area more than 40000 square meters.
With independent R&D team, company have adopted advanced production equipment and testing methods, and effectively guarantee the quality of products, products with high capacity small volume, light weight, long lifespan, high performance, with excellent performance won the majority of consumer recognition and dependence. Widely used in automobiles, electric vehicles, electric power, telecommunication, UPS system, EPS system, security, electric tools, emergency lighting and etc. Fields.
Dongjin Group adhere to the "quality first, integrity and innovation" as the guiding principle, with excellent quality and first-class customer service to satisfy customer product quality requirements, from raw material procurement to made the process strictly and Dongjin Group has the QC team, first-class advanced assembly line, strict management system, as we move towards Europe, North America, Asia, more than 50 countries and regions in the middle-east and Africa customers provide quality and services.
