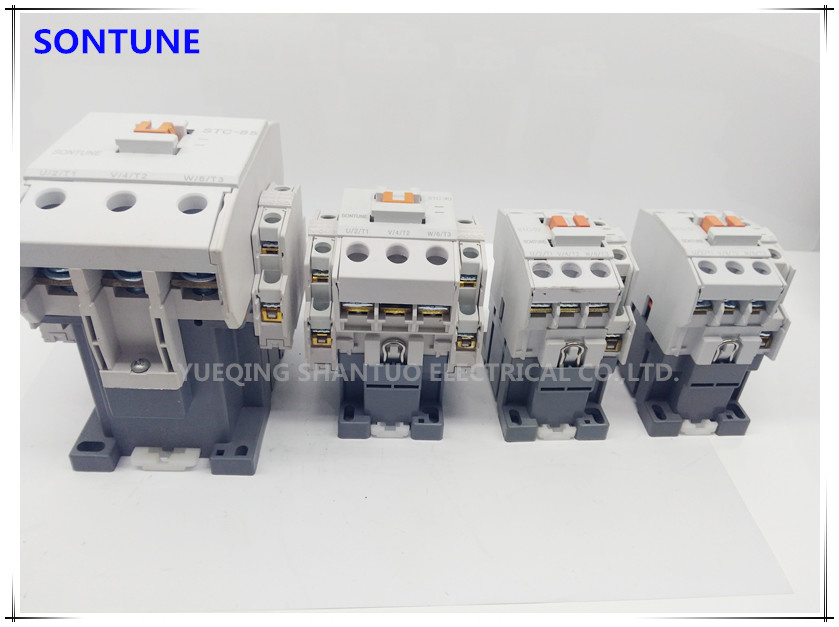

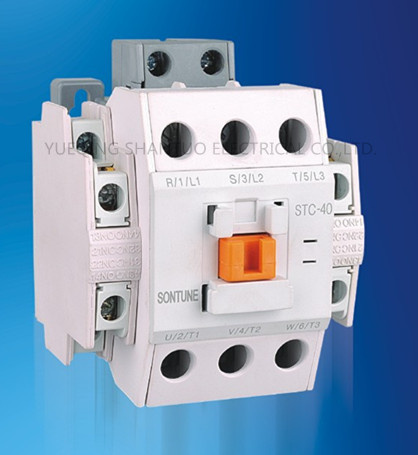

ST1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.
| Type | STC-09 | STC-12 | STC-18 | STC-22 | STC-32 | STC-40 | STC-50 | STC-65 | STC-75 | STC-85 | STC-100 | STC-125 |
| AC capability | 20A | 20A | 25A | 32A | 50A | 60A | 80A | 100A | 110A | 135A | 150A | 150A |
| Rated heat current | 200~240V | 2.5KW11A | 3.5KW13A | 4.5KW18A | 5.5KW22A | 7.5KW32A | 11KW40A | 15KW55A | 18.5KW65A | 22KW75A | 25KW85A | 30KW105A | 37KW125A |
| 380~440V | 4KW9A | 5.5KW12A | 7.5KW18A | 11KW22A | 15KW32A | 18.5KW40A | 22KW50A | 30KW60A | 37KW64A | 37KW85A | 55KW105A | 60KW120A |
| 500~550V | 4KW7A | 7.5KW12A | 15KW13A | 15KW22A | 18.5KW28A | 22KW32A | 30KA43A | 37KW65A | 45KW60A | 45KW75A | 55KW85A | 60KW90A |
| 690V | 4KW5A | 7.5KW9A | 15KW9A | 15KW18A | 18.5KW21A | 22KW25A | 30KW33A | 37KW47A | 45KW47A | 45KW52A | 55KW65A | 60KW70A |
| Conventional thermal current | 20A | 25A | 30A | 32A | 45A | 50A | 70A | 80A | 90A | 100A | 150A | 160A |
| AC motor | single phase | 115V | 0.5HP | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 7.5HP | 10HP |
| 230V | 1HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 15HP | 15HP | 15HP | 20HP |
| three phase | 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP |
| 230V | 2HP | 3HP | 5HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | 30HP | 40HP |
| 460V | 5HP | 7.5HP | 10HP | 10HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | 60HP | 75HP |
| 575V | 7.5HP | 10HP | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | 60HP | 75HP |
Our Services: - Competitive price
- Continuance Service and support
- Good-after service
- Quality Reliability and Long Product Life.

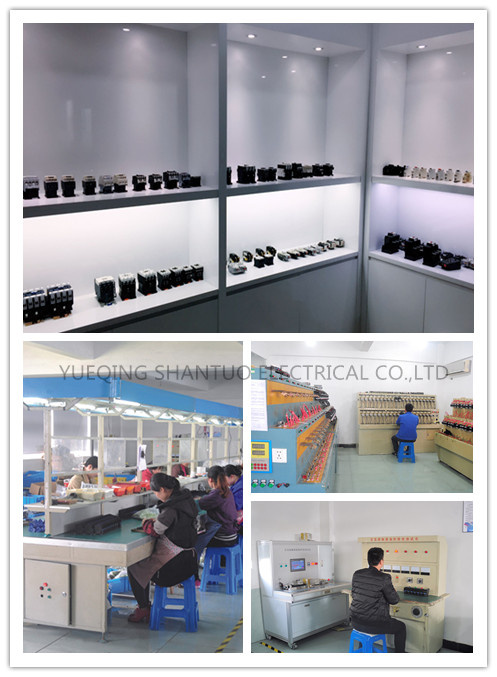

Company Information
YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.
Contact us
Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.
YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
