Sound Level Gauge
Price: |
US $ 100/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |

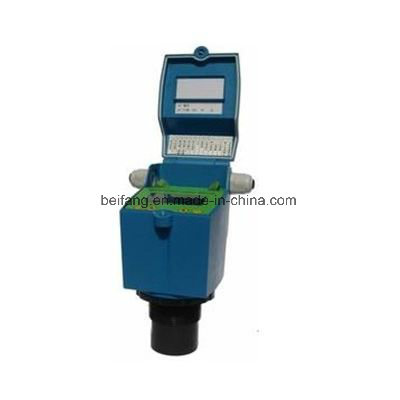

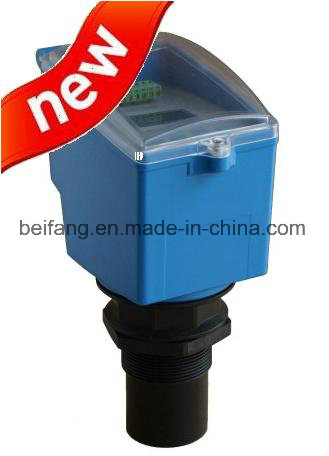

Sound Level Gauge
1 Accuracy: 0.25%, 0.5%
2 Blind spot: 0.3~0.5m
3 Protection class: IP65
4 Range: 0---30m, 4-20mA
Including one-body type and splity type, Dual Point ultraosnic level meter
The Specification of Sound Level Gauge |
Model | Ultrasonic level meter |
Range | 0 ~ 30m from the arbitrary choice |
Blind spot | 0.3~0.5m |
Accuracy | 0.25% |
Display resolution | 1mm |
Current output | 4-20mA |
Output Resolution | 0.03% of the actual range of |
Output Load | 0 ~ 600Ω |
Relay Output | Control limit and lower limit |
Relay Specifications | 5A 250VAC/30VDC |
Preferences | Thoughts on three key |
Temperature | -20~55C |
Pressure range | ± 0.1MPa, less than 4 MPa |
Sound beam angle | 8o(3db) |
Testing cycle | 1second |
Shell material | ABS |
Sensor materials | PVC |
Protection class | IP65, IP68 |
Installation | Flange or bracket |
Power | 24VDC, 220VAC |
Features | * Cheap and cost effective. * Use of SMD technology to improve equipment reliability. * Automatic power adjustment, gain control, temperature compensation. * The advanced detection technology, rich software functionality to adapt to a variety of complex environments. * Waveforms calculated using the new technology to improve the instrument' s measurement accuracy. * Echo interference rejection capability with the measurement data to ensure true. * 16-Bit D / A conversion, increase current output of the precision and resolution. * Sensor PTFE material can be used for a variety of corrosive occasions. * A variety of output forms: programmable relay output, high precision 4-20mA current output, RS-485 digital communication output
|
Prod Model: |
UY |
Accuracy: |
0.25 |
Power: |
24V, 220V |
Model: |
Integrate or Remote |
Kind: |
Ultrasonic Wave |
Structure: |
All in One |
Range: |
0-30m |
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
