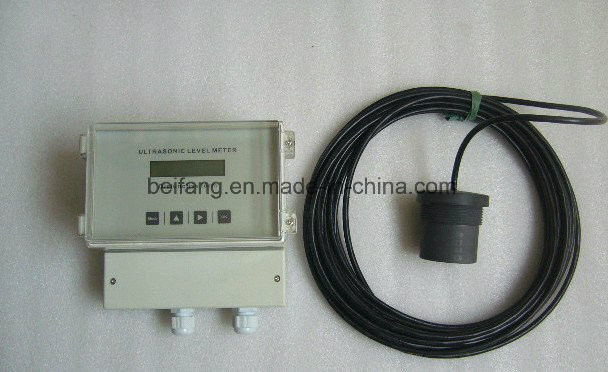

Ultrasonic Level Sensor
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Ultrasonic level sensor
1 Accuracy: 0.25%, 0.5%
2 Blind spot: 0.3~0.5m
3 Protection class: IP65
4 Range: 0---3m, 0---6m, 0---10m, 0---15,
5 Output: 4-20mA, RS485
6 24VDC or 220VAC
| Item The Specification of ultrasonic level meter |
| Model | Ultrasonic level meter |
| Range | 0 ~ 20m from the arbitrary choice |
| Blind spot | 0.3~0.5m |
| Accuracy | 0.25% |
| Display resolution | 1mm |
| Current output | 4-20mA |
| Output Resolution | 0.03% of the actual range of |
| Output Load | 0 ~ 600Ω |
| Relay Output | Control limit and lower limit |
| Relay Specifications | 5A 250VAC/30VDC |
| Preferences | Thoughts on three key |
| Temperature | -20~55C |
| Pressure range | ± 0.1MPa, less than 4 MPa |
| Sound beam angle | 8o(3db) |
| Testing cycle | 1second |
| Shell material | ABS |
| Sensor materials | PVC |
| Protection class | IP65, IP67 |
| Installation | Flange or bracket |
| Power | 24VDC, 220VAC |
| Features | * Cheap and cost effective.
* Use of SMD technology to improve equipment reliability.
* Automatic power adjustment, gain control, temperature compensation.
* The advanced detection technology, rich software functionality to adapt to a variety of complex environments.
* Waveforms calculated using the new technology to improve the instrument' s measurement accuracy.
* Echo interference rejection capability with the measurement data to ensure true.
* 16-Bit D / A conversion, increase current output of the precision and resolution.
* Sensor PTFE material can be used for a variety of corrosive occasions.
* A variety of output forms: programmable relay output, high precision 4-20mA current output, RS-485 digital communication output |
