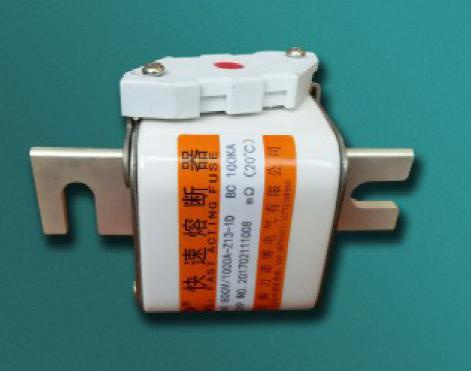

Specification Parameters of RS17 Square Tube Hook (Z type) Bolted Fast Acting Fuse
| Price: |
Negotiable/Piece |
| Min Order: |
3/Piece |
| Pay Type: |
L/C,T/T |
Performance standard: IEC60269;GB13539.1;GB/T13539.4Rated voltage: 250V-2000VRated current: 10A-14000ABreaking capacity: 100KA (some parts 200KA)Protection type: aRInstallation mode: boltedInstallation structure: flat (P type); hook (Z type); bus (L type)Features: The variable cross-section fuse element made of 99.99% pure silver pieces is packaged in #95 high-strength fusion tube. The tube is filled with the chemically treated high purity quartz sands as the arc-quenching medium, and the advanced curing technology is used to improve the breaking capacity and protection characteristics with the high welding speed, good current limiting characteristic, small I2t value, and low power consumption, The product is safe and reliable, and can replace RS4, RS8, RS9, RSM, RST, RSK, RSG and other fuse products.

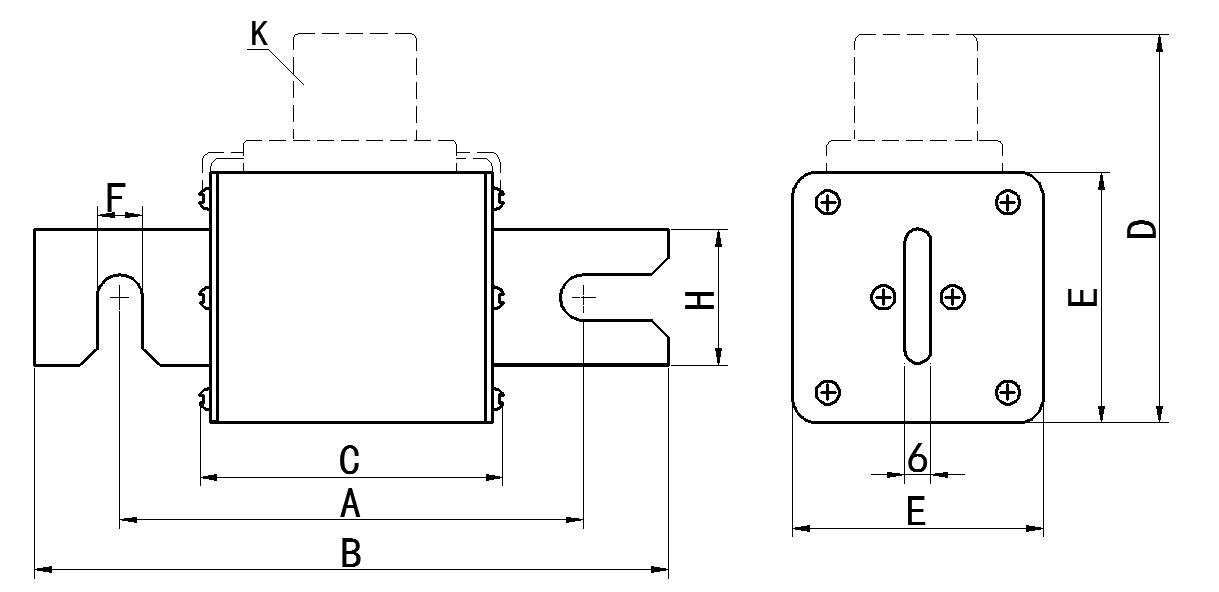

Fig1
Table 1| No. | Model | Rated Voltage (V) | Rated Current(A) | Dimension(mm) | Outline Drawing No. |
| A | B | C | D | E | F | H |
| 1 | RS17-380/-ZN1 | 380 | 25, 32, 40, 50, 63, 80, 100, 125, 150 | 110 | 140 | 71 | 88 | 51 | 10.5 | 26 | Fig.1
|
| 2 | RS17-690/-ZN1 | 690 |
| 3 | RS17-800/-ZN1 | 800 |
| 4 | RS17-1000/-ZN1 | 1000 |
| 5 | RS17-380/-ZN2 | 380 | 100, 125, 160, 200, 250, 300, 355 | 110 | 140 | 71 | 95 | 58 | 10.5 | 32 |
Fig.1
|
| 6 | RS17-690/-ZN2 | 690 |
| 7 | RS17-800/-ZN2 | 800 |
| 8 | RS17-1000/-ZN2 | 1000 |
| 9 | RS17-380/-ZN3 | 380 | 400, 450, 500, 560, 630 | 110 | 140 | 71 | 104 | 67 | 10.5 | 38 |
Fig.1
|
| 10 | RS17-690/-ZN3 | 690 |
| 11 | RS17-800/-ZN3 | 800 |
| 12 | RS17-1000/-ZN3 | 1000 |
| 13 | RS17-380/-Z13-B | 380 | 450, 500, 560, 630, 700, 800, 900, 1000 | 90 | 120 | 51 | 109 | 72 | 11 | 39 |
Fig.1
|
| 14 | RS17-500/-Z13-B | 500 |
| 15 | RS17-800/-Z13-D | 800 | 450, 500, 560, 630, 700, 800, 900, 1000 | 110 | 140 | 71 |
| 16 | RS17-1000/-Z13-M | 1000 | 450, 500, 560, 630, 700, 800, 900 | 127 | 157 | 88 |
| 17 | RS17-380/-Z14-A | 380 | 900, 1000, 1200, 1400, 1500, 1600 | 86 | 116 | 47 | 111 | 74 | 11 | 39 |
Fig.1
|
| 18 | RS17-500/-Z14-A | 500 |
| 19 | RS17-800/-Z14-C | 800 | 900, 1000, 1200, 1400, 1500, 1600 | 102 | 132 | 61 |
| 20 | RS17-1000/-Z14-D | 1000 | 900, 1000, 1200, 1400, 1500 | 110 | 140 | 71 |
| 21 | RS17-1250/-Z14-E | 1250 | 800, 900, 1000, 1200, 1400 | 112 | 145 | 76 |
| 22 | RS17-1500/-Z14-H | 1500 | 630, 800, 900, 1000 | 140 | 170 | 101 |
| 23 | RS17-2000/-Z14-K | 2000 | 630, 800, 900 | 162 | 192 | 123 |
Specification parameters of RS17 square tube bus (L type) bolted fast acting fuse
Table 1| No. | Model | Rated Voltage (V) | Rated Current(A) | Dimension(mm) | Outline Drawing No. |
| A | B | C |
| 1 | RS17-380/-L11-A | 380 | 10, 20, 30, 50, 63, 80, 100, 150, 200, 200, 315, 350 | 124 | 157 | 57 | Fig.1
|
| 2 | RS17-500/-L11-A | 500 |
| 3 | RS17-800/-L11-D | 800 | 10, 20, 30, 50, 63, 80, 100, 150, 200, 200, 315 | 148 | 181 | 81 |
| 4 | RS17-1000/-L11-E | 1000 | 153 | 186 | 86 |
| 5 | RS17-1500/-L11-K | 1500 | 10, 20, 30, 50, 63, 80, 100, 150, 200, 200 | 200 | 233 | 133 |
| 6 | RS17-2000/-L11-K | 2000 | 200 | 233 | 133 |
| 7 | RS17-380/-L13-B | 380 | 450, 500, 560, 630, 700, 800, 900 | 102 | 144 | 58 |
Fig.2
|
| 8 | RS17-500/-L13-B | 500 |
| 9 | RS17-800/-L13-D | 800 | 450, 500, 560, 630, 700, 800 | 122 | 164 | 78 |
| 10 | RS17-1000/-L13-M | 1000 | 139 | 181 | 95 |
| 11 | RS17-380/-L14-1A | 380 | 700, 800, 900, 1000, 1250, 1400 | 100 | 145 | 61 |
Fig.3
|
| 12 | RS17-500/-L14-1A | 500 |
| 13 | RS17-800/-L14-1C | 800 | 700, 800, 900, 1000, 1250, 1400 | 116 | 161 | 77 |
| 14 | RS17-1000/-L14-1D | 1000 | 124 | 169 | 85 |
| 15 | RS17-1250/-L14-1E | 1250 | 700, 800, 900, 1000, 1250 | 129 | 174 | 90 |
| 16 | RS17-1500/-L14-1H | 1500 | 700, 800, 900, 1000 | 155 | 199 | 115 |
| 17 | RS17-2000/-L14-1K | 2000 | 700, 800, 900 | 175 | 221 | 137 |
| 18 | RS17-380/-L14-2A | 380 | 700, 800, 900, 1000, 1250, 1400 | 188 | 138 | 68 |
Fig.4
|
| 19 | RS17-500/-L14-2A | 500 |
| 20 | RS17-800/-L14-2C | 800 | 700, 800, 900, 1000, 1250, 1400 | 204 | 154 | 84 |
| 21 | RS17-1000/-L14-2D | 1000 | 212 | 162 | 92 |
| 22 | RS17-1250/-L14-2E | 1250 | 700, 800, 900, 1000, 1250 | 217 | 167 | 97 |
| 23 | RS17-1500/-L14-2H | 1500 | 700, 800, 900, 1000 | 242 | 192 | 122 |
| 24 | RS17-2000/-L14-2K | 2000 | 700, 800, 900 | 264 | 214 | 144 |

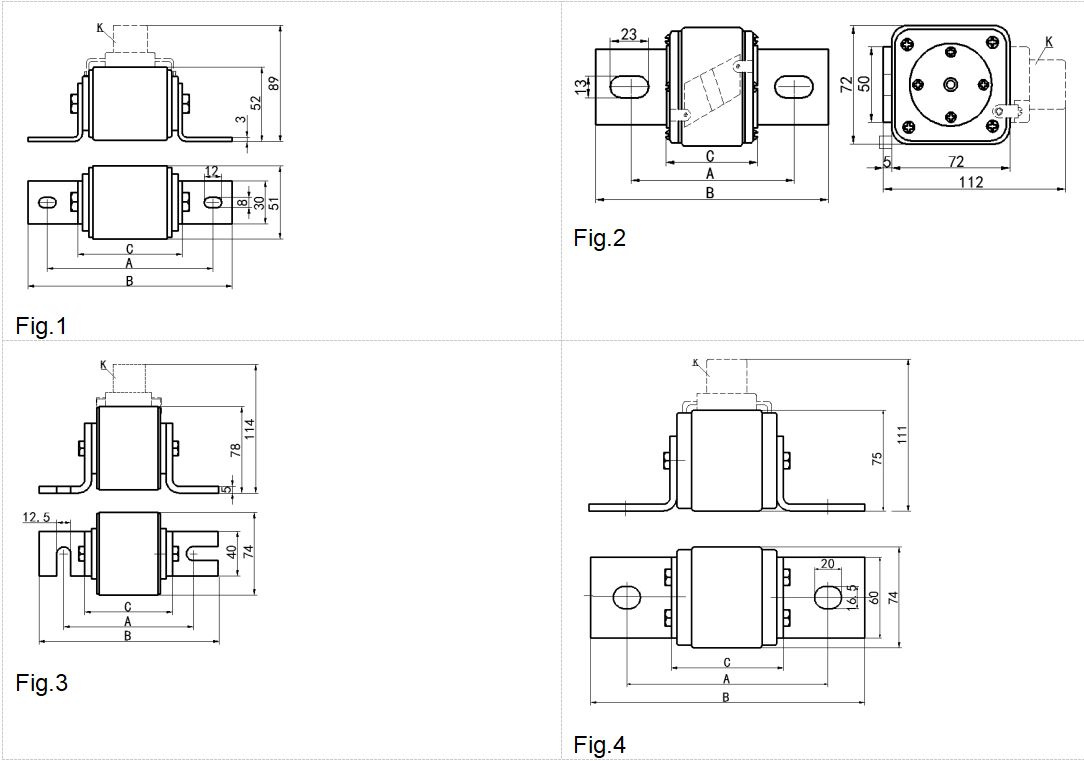

Overall installation dimension
| Prod Model: |
RS17 |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
Low Voltage |
