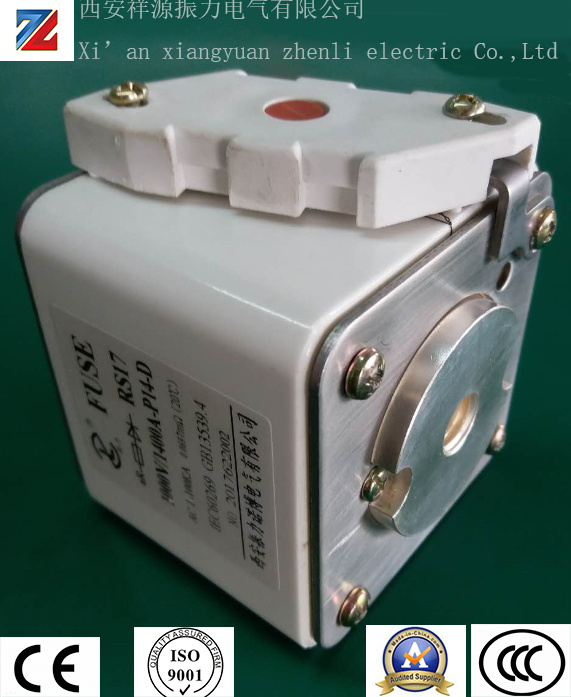

RS17 semiconductor equipment protective fuse (fast acting fuse)

Performance standard: IEC60269;GB13539.1;GB/T13539.4
Rated voltage: 250V-2000V
Rated current: 10A-14000A
Breaking capacity: 100KA (some parts 200KA)
Protection type: aR
Installation mode: bolted
Installation structure: flat (P type); hook (Z type); bus (L type)
Features: The variable cross-section fuse element made of 99.99% pure silver pieces is packaged in #95 high-strength fusion tube. The tube is filled with the chemically treated high purity quartz sands as the arc-quenching medium, and the advanced curing technology is used to improve the breaking capacity and protection characteristics with the high welding speed, good current limiting characteristic, small I²t value, and low power consumption, The product is safe and reliable, and can replace RS4, RS8, RS9, RSM, RST, RSK, RSG and other fuse products.
It applies to the protection of silicon elements, silicon rectifiers and electrical equipment in the steel, chemical, smelting, electrolysis, electroplating, traction, rail transportation, IF and other industries.
Model description:

Comparison table of RS17 fuse size (pipe number) is as follows:

Size	1	2	3	4	5	6	7	8
Code	51×51	60×60	72×72	74×74	85×85	105×105	118×118	149×149

Specification parameters of RS17 square tube panel (P type) bolted fast acting fuse

Table 1

No.	Model	Rated Voltage (V)	Rated Current(A)	Installation Dimension(mm)					Outline Drawing No.
				A	B	E	H	M
1	RS17-380/-P11-1A	380	10, 20, 30, 50, 60, 80, 100, 200, 315, 350, 400	51	88	51	Φ20	M8	Fig.1
2	RS17-500/-P11-1A	500
3	RS17-800/-P11-1D	800	10, 20, 30, 50, 60, 80, 100, 200, 350	75
4	RS17-1000/-P11-1D	1000		80
5	RS17-1500/-P11-1K	1500	10, 20, 30, 50, 60, 80, 100, 200, 315	127
6	RS17-2000/-P11-1K	2000	10, 20, 30, 50, 60, 80, 100, 200	127
7	RS17-380/-P12-1B	380	300, 350, 400, 500, 630, 700, 800	55	97	60	Φ25	M10	Fig.1
8	RS17-500/-P12-1B	500
9	RS17-800/-P12-1D	800	300, 350, 400, 500, 630, 700, 800	75
10	RS17-1000/-P12-1D	1000
11	RS17-380/-P13-1B	380	400, 500, 560, 630, 700, 800, 900, 1000, 1200	56	109	72	Φ46	M10	Fig.2
12	RS17-500/-P13-1B	500
13	RS17-800/-P13-1D	800	400, 500, 560, 630, 700, 800, 900, 1000, 1200	78
14	RS17-1000/-P13-1M	1000		95
15	RS17-380/-P14-1A	380	630, 700, 800, 900, 1000, 1250, 1500	51	111	74	Φ45	M12	Fig.3
16	RS17-500/-P14-1A	500
17	RS17-800/-P14-1C	800	630, 700, 800, 900, 1000, 1250, 1500	67
18	RS17-1000/-P14-1D	1000	630, 700, 800, 900, 1000, 1250, 1400	75
19	RS17-1250/-P14-1E	1250	630, 700, 800, 900, 1000, 1200	80
20	RS17-1500/-P14-1H	1500	630, 700, 800, 900, 1000	105
21	RS17-2000/-P14-1K	2000	630, 700, 800, 900, 1000	127

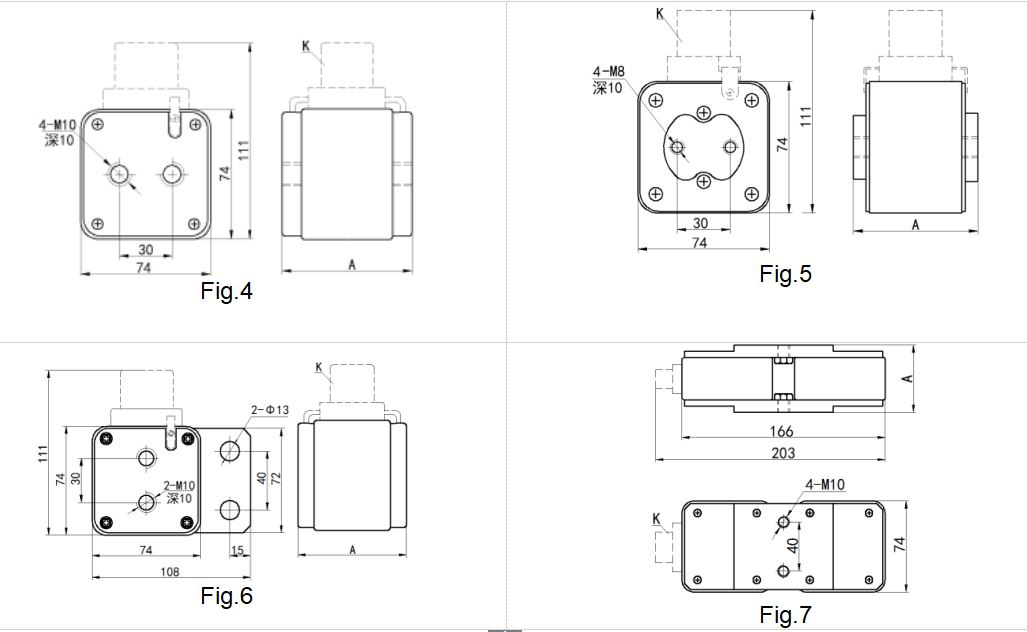

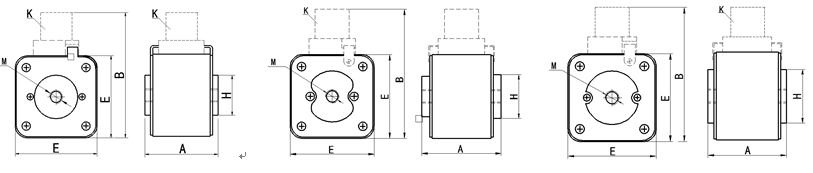

Overall installation dimension

Fig.1 Fig.2 Fig.3

Specification parameters of RS17 square tube panel (P type) bolted fast acting fuse

Table 2

No.	Model	Rated Voltage (V)	Rated Current(A)	Mounting Height A(mm)	Outline Drawing No.
1	RS17-380/-P14-2A	380	1100, 1200, 1400, 1500, 1600, 1800, 2000	58	Fig.4
2	RS17-500/-P14-2A	500	1100, 1200, 1400, 1500, 1600, 1800, 2000	58
3	RS17-800/-P14-2C	800	1000, 1200, 1400, 1500, 1600, 1800	74
4	RS17-1000/-P14-2D	1000	900, 1000, 1200, 1400, 1500, 1600	82
5	RS17-1250/-P14-2E	1250	800, 900, 1000, 1200, 1400, 1500	87
6	RS17-1500/-P14-2H	1500	630, 700, 800, 900, 1000	112
7	RS17-2000/-P14-2K	2000	630, 700, 800, 900, 1000	134
8	RS17-380/-P14-3A	380	630, 700, 800, 900, 1000, 1250	52	Fig.5
9	RS17-500/-P14-3A	500	630, 700, 800, 900, 1000, 1250	52
10	RS17-800/-P14-3C	800	630, 700, 800, 900, 1000, 1100, 1250	68
11	RS17-1000/-P14-3D	1000	630, 700, 800, 900, 1000, 1100, 1250	76
12	RS17-1250/-P14-3E	1250	630, 700, 800, 900, 1000, 1100	81
13	RS17-1500/-P14-3H	1500	630, 700, 800, 900, 1000	106
14	RS17-2000/-P14-3K	2000	630, 700, 800, 900, 1000	128
15	RS17-380/-P14-4A	380	1200, 1400, 1500, 1600, 1800, 2000	57	Fig.6
16	RS17-500/-P14-4A	500	1200, 1400, 1500, 1600, 1800, 2000	57
17	RS17-800/-P14-4C	800	1100, 1200, 1400, 1500, 1600, 1800	73
18	RS17-1000/-P14-4D	1000	900, 1000, 1200, 1400, 1500, 1600	81
19	RS17-1250/-P14-4E	1250	800, 900, 1000, 1200, 1400, 1500	86
20	RS17-1500/-P14-4H	1500	630, 700, 800, 900, 1000	111
21	RS17-2000/-P14-4K	2000	630, 700, 800, 900, 1000	133
22	RS17-380/-P24-A	380	2000, 2200, 2500, 2800, 3200, 3600, 4000	54	Fig.7
23	RS17-500/-P24-A	500	2000, 2200, 2500, 2800, 3200, 3600, 4000	54
24	RS17-800/-P24-C	800	2000, 2200, 2500, 2800, 3200, 3600	70
25	RS17-1000/-P24-D	1000	2000, 2200, 2500, 2800, 3200, 3600	78
26	RS17-1250/-P24-E	1250	1400, 1800, 2000, 2500, 2800, 3200	83
27	RS17-1500/-P24-H	1500	1250, 1400, 1800, 2000, 2500	108
28	RS17-2000/-P24-K	2000	1000, 1250, 1400, 1600, 1800, 2000	130

Note: In view of the fuse temperature rise, the water-cooled busbar shall be connected for the fuses with the current specifications marked blue in the table.

Specification parameters of RS17 square tube panel (P type) bolted fast acting fuse
Table 3

No.	Model	Rated Voltage (V)	Rated Current(A)	Mounting Height A(mm)	Outline Drawing No.
1	RS17-500/-P15-B	500	1250, 1500, 1600, 1800, 2000	60	Fig.8
2	RS17-800/-P15-D	800	800, 900, 1000, 1250, 1500, 1600, 1800	80
3	RS17-1000/-P15-D	1000	800, 900, 1000, 1250, 1500, 1600, 1800	80
4	RS17-2000/-P15-L	2000	600, 750, 800, 900, 1000, 1250	130
5	RS17-500/-P16-1B	500	1400, 1600, 1800, 2000, 2500, 2800	60	Fig.9
6	RS17-800/-P16-1D	800	1400, 1600, 1800, 2000, 2500, 2800	80
7	RS17-1000/-P16-1F	1000	1400, 1600, 1800, 2000, 2500	90
8	RS17-1500/-P16-1H	1500	1400, 1600, 1800, 2000	110
9	RS17-500/-P16-2B	500	1400, 1600, 1800, 2000, 2500, 2800	60	Fig.10
10	RS17-800/-P16-2D	800	1400, 1600, 1800, 2000, 2500, 2800	80
11	RS17-1000/-P16-2F	1000	1400, 1600, 1800, 2000, 2500	90
12	RS17-1500/-P16-2H	1500	1400, 1600, 1800, 2000	110
13	RS17-500/-P16-3B	500	1400, 1600, 1800, 2000, 2500, 2800	60	Fig.11
14	RS17-800/-P16-3D	800	1400, 1600, 1800, 2000, 2500, 2800	80
15	RS17-1000/-P16-3F	1000	1400, 1600, 1800, 2000, 2500	90
16	RS17-1500/-P16-3H	1500	1400, 1600, 1800, 2000	110
17	RS17-500/-P26-1B	500	3200, 3600, 4000, 4200, 4600, 5000, 5600	60	Fig.12
18	RS17-800/-P26-1D	800	3200, 3600, 4000, 4600, 5000, 5200	80
19	RS17-1000/-P26-1F	1000	3000, 3600, 4000, 4200, 4600, 5000	90
20	RS17-1500/-P26-1H	1500	2500, 3000, 3600, 4000	110
21	RS17-500/-P26-2B	500	3200, 3600, 4000, 4200, 4600, 5000, 5600	60	Fig.13
22	RS17-800/-P26-2D	800	3200, 3600, 4000, 4600, 5000, 5200	80
23	RS17-1000/-P26-2F	1000	3000, 3600, 4000, 4200, 4600, 5000	90
24	RS17-1500/-P26-2H	1500	2500, 3000, 3600, 4000	110

Note: In view of the fuse temperature rise, the water-cooled busbar shall be connected if more than 1600A is selected for P16 and more than 3600A for P26.

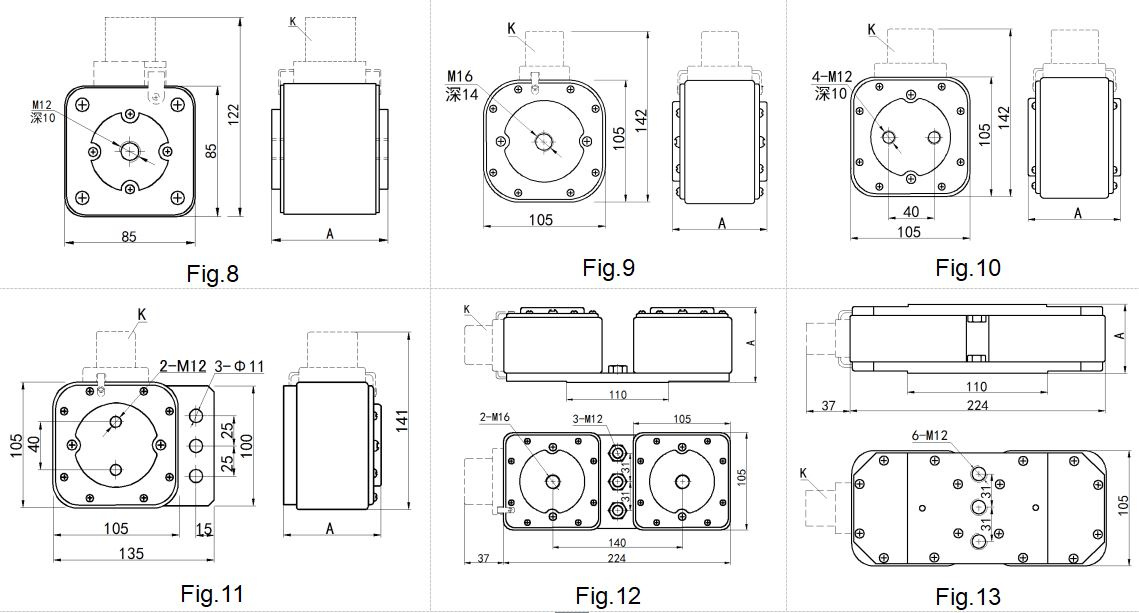

Overall installation dimension

Specification parameters of RS17 square tube panel (P type) bolted fast acting fuse
Table 4

No.	Model	Rated Voltage (V)	Rated Current(A)	Mounting Height A(mm)	Outline Drawing No.
1	RS17-380/-P17-1B	380	2200, 2500, 2800, 3000, 3200, 3600	60	Fig.14
2	RS17-500/-P17-1B	500	2200, 2500, 2800, 3000, 3200, 3600	60
3	RS17-800/-P17-1D	800	2200, 2500, 2800, 3000, 3200, 3600	80
4	RS17-1000/-P17-1G	1000	2000, 2200, 2500, 2800, 3000, 3200	100
5	RS17-1250/-P17-1G	1250	2000, 2200, 2500, 2800, 3000, 3200	100
6	RS17-1500/-P17-1H	1500	1600, 1800, 2000, 2500	110
7	RS17-380/-P17-2B	380	2200, 2500, 2800, 3000, 3200, 3600, 3800	60	Fig.15
8	RS17-500/-P17-2B	500	2200, 2500, 2800, 3000, 3200, 3600, 3800	60
9	RS17-800/-P17-2D	800	2200, 2500, 2800, 3000, 3200, 3600	80
10	RS17-1000/-P17-2G	1000	2000, 2200, 2500, 2800, 3000, 3200	100
11	RS17-1250/-P17-2G	1250	2000, 2200, 2500, 2800, 3000, 3200	100
12	RS17-1500/-P17-2H	1500	1600, 1800, 2000, 2500, 2800, 3000	110
13	RS17-380/-P17-3B	380	2200, 2500, 2800, 3000, 3200, 3600, 3800	60	Fig.16
14	RS17-500/-P17-3B	500	2200, 2500, 2800, 3000, 3200, 3600, 3800	60
15	RS17-800/-P17-3D	800	2200, 2500, 2800, 3000, 3200, 3600	80
16	RS17-1000/-P17-3G	1000	2000, 2200, 2500, 2800, 3000, 3200	100
17	RS17-1250/-P17-3G	1250	2000, 2200, 2500, 2800, 3000, 3200	100
18	RS17-1500/-P17-3H	1500	1600, 1800, 2000, 2500, 2800, 3000	110
19	RS17-380/-P27-B	380	4000, 4600, 5000, 5600, 6000, 6400, 7200	60	Fig.17
20	RS17-500/-P27-B	500	4000, 4600, 5000, 5600, 6000, 6400, 7200	60
21	RS17-800/-P27-D	800	4000, 4600, 5000, 5600, 6000, 6400	80
22	RS17-1000/-P27-G	1000		100
23	RS17-1250/-P27-G	1250		100

Note: In view of the fuse temperature rise, the water-cooled busbar shall be connected if more than 2500A is selected for P17 and more than 5000A for P27.

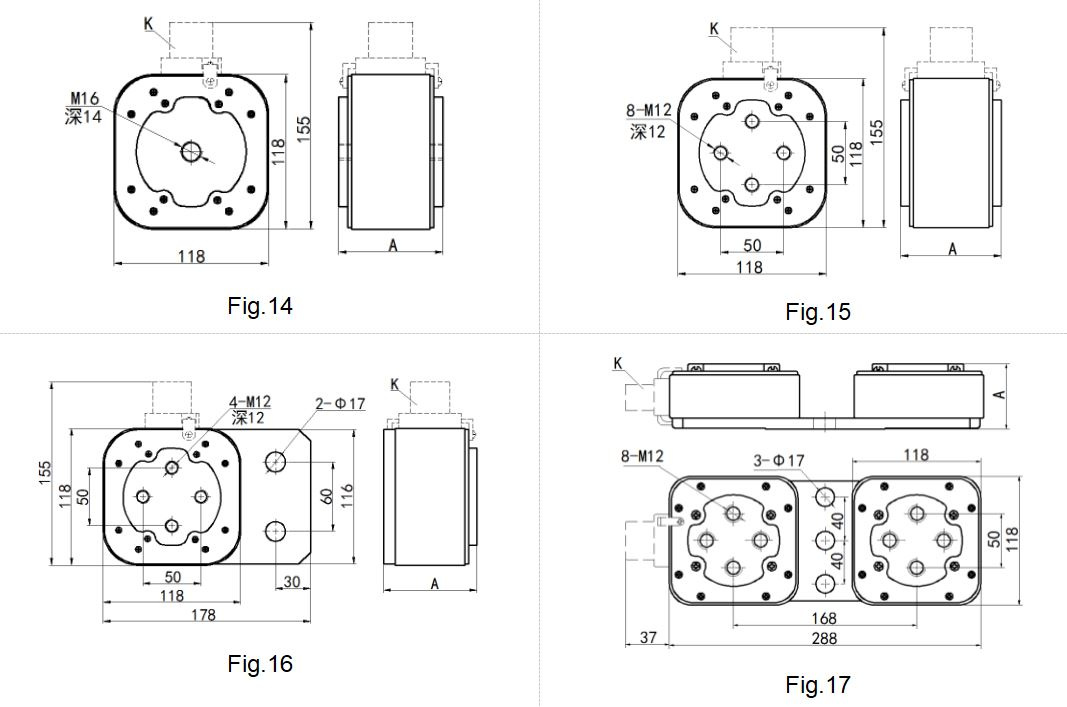

Overall installation dimension

Specification parameters of RS17 square tube panel (P type) bolted fast acting fuse

Table 5

No.	Model	Rated Voltage (V)	Rated Current(A)	Mounting Height A(mm)	Outline Drawing No.
1	RS17-380/-P18-1B	380	3600, 3800, 4000, 4200, 4500, 5000, 5200, 5400, 5600, 6000	60	Fig.18
2	RS17-500/-P18-1B	500	3600, 3800, 4000, 4200, 4500, 5000, 5200, 5400, 5600, 6000	60
3	RS17-800/-P18-1D	800	3000, 3500, 3600, 3800, 4000, 4200, 4500, 5000	80
4	RS17-1000/-P18-1G	1000	2800, 3200, 3600, 4000, 4200, 4500	100
5	RS17-1000/-P18-1G	1250	2800, 3000, 3200, 3400, 3600, 4000, 4200	100
6	RS17-1000/-P18-1H	1500	2500, 3000, 3200, 3600, 4000	110
7	RS17-380/-P18-2B	380	3600, 3800, 4000, 4200, 4500, 5000, 5200, 5400, 5600, 6000	60	Fig.19
8	RS17-500/-P18-2B	500	3600, 3800, 4000, 4200, 4500, 5000, 5200, 5400, 5600, 6000	60
9	RS17-800/-P18-2D	800	3000, 3500, 3600, 3800, 4000, 4200, 4500, 5000	80
10	RS17-1000/-P18-2G	1000	2800, 3200, 3600, 4000, 4200, 4500 2800, 3000, 3200, 3400, 3600, 4000, 4200	100
11	RS17-1000/-P18-2G	1250		100
12	RS17-1000/-P18-2H	1500	2500, 3000, 3200, 3600, 4000	110

Note: In view of the fuse temperature rise, the water-cooled busbar shall be connected for the fuses with the current specifications marked blue in the table.

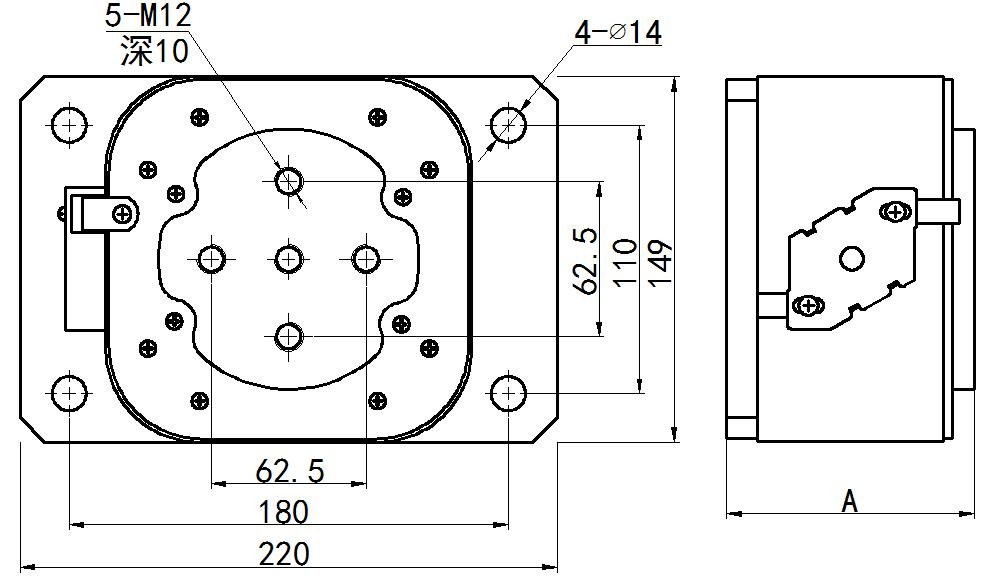

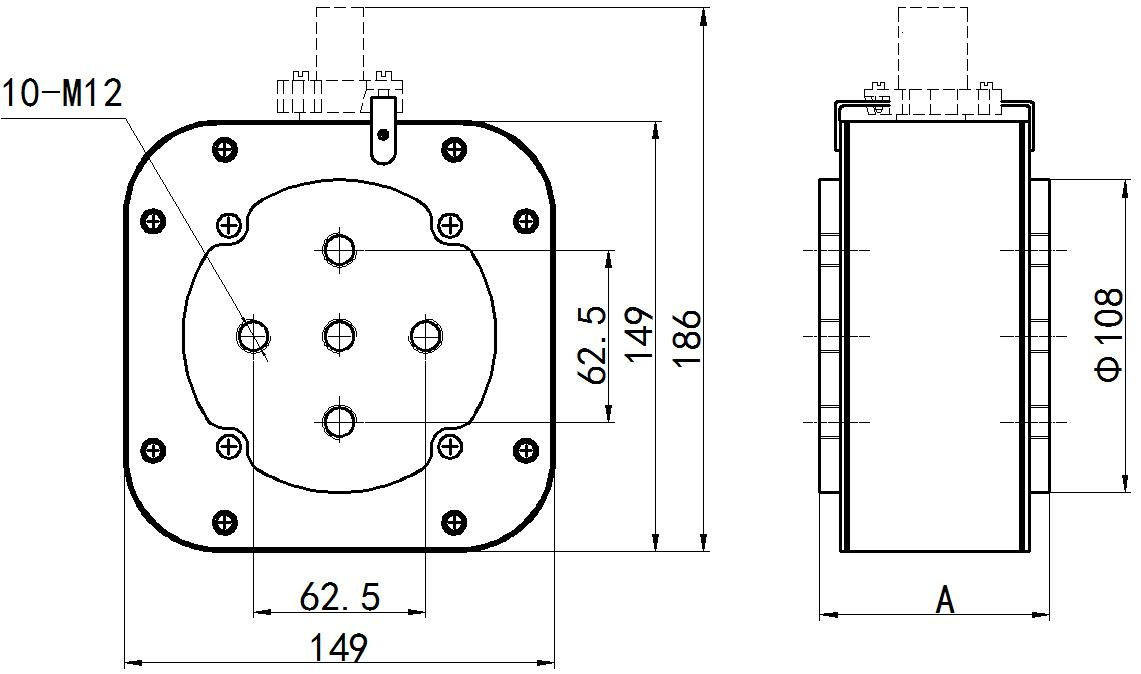

Overall installation dimension

Fig.18

Fig.19

Prod Model:	RS17-
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
