Rtz (EV) DC Fuse for New-Energy Electric Vehicle Protection
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
Performance standard: IEC60269;GB13539.1;GB/T13539.4Rated voltage: DC 500V, 700V, 1000VRated current: 10A-2000ABreaking capacity: ≥20KAProtection type: aRInstallation mode: boltedFeatures: small size, low power consumption, high breaking capacity, time constant T <10ms.It applies to the short-circuit protection of lithium battery pack, inverter, capacitor and charger of large, medium and small-sized passenger vehicles and busesSpecification parameters of RTZ-50 fuse| Model | Rated Voltage (V) | Rated Current(A) | Overall Dimension (mm) | Outline Drawing No. |
| ΦD | A | B | C | E | F | G | H |
| RTZ-50(EV2161) | 500 | 10, 20, 30, 40, 50, 63 | 21 | 40 | 57 | 66 | 81 | 8.5 | 16 | 4 | Fig.1 |
| RTZ-50(EV2572) | 500 | 70, 80, 100 | 25 | 44 | 67 | 72 | 92 | 8.5 | 18 | 4 |
| RTZ-50(EV3172) | 500 | 125, 150, 200 | 31 | 47 | 66 | 73 | 92 | 8.5 | 24 | 5 |
| RTZ-50(EV3880) | 500 | 225, 250, 300, 350, 400 | 38 | 53 | 73 | 88 | 110 | 10.5 | 25 | 6 |
| RTZ-50(EV5180) | 500 | 450, 500, 600 | 51 | 53 | 71 | 90 | 110 | 10.5 | 38 | 6 |
| RTZ-50(EV63107) | 500 | 700, 750, 800 | 63 | 53 | 90 | 126 | 161 | 10.5 | 50 | 10 |

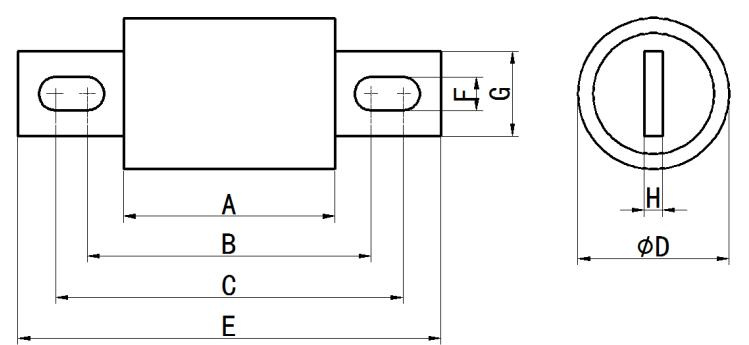

Overall installation dimension

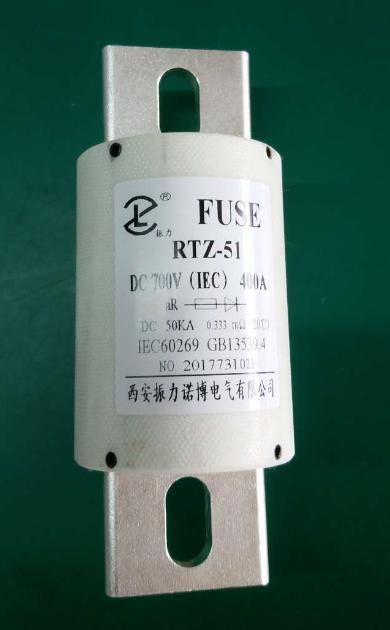

Fig.1 Specification parameters of RTZ-51 fuse| Model | Rated Voltage (V) | Rated Current(A) | Overall Dimension (mm) | Outline Drawing No. |
| ΦD | A | B | C | E | F | G | H |
| RTZ-51(EV2189) | 700 | 10, 20, 30, 40, 50, 63 | 21 | 68 | 85 | 93 | 109 | 8.5 | 16 | 4 | Fig.2 |
| RTZ-51(EV2591) | 700 | 70, 80, 100 | 25 | 66 | 90 | 94 | 114 | 8.5 | 18 | 4 |
| RTZ-51(EV3899) | 700 | 125, 150, 200 | 38 | 72 | 93 | 108 | 129 | 10.5 | 25 | 6 |
| RTZ-51(EV51100) | 700 | 225, 250, 300, 350, 400 | 51 | 72 | 90 | 109 | 129 | 10.5 | 38 | 6 |
| RTZ-51(EV63126) | 700 | 450, 500, 600 | 63 | 72 | 110 | 145 | 180 | 13 | 50 | 10 |
Overall installation dimension
Fig 2Specification parameters of RTZ-52 fuse | Model | Rated Voltage (V) | Rated Current(A) | Overall Dimension (mm) | Outline Drawing No. |
| ΦD | A | B | C | E | F | G | H |
| RTZ-52(EV25107) | 1000 | 10, 20, 30, 40, 50, 63 | 25 | 79 | 102 | 108 | 127 | 8.5 | 18 | 4 | Fig.3 |
| RTZ-52(EV31102) | 1000 | 70, 80, 100 | 31 | 78 | 98 | 105 | 123 | 8.5 | 24 | 5 |
| RTZ-52(EV38114) | 1000 | 125, 150, 200 | 38 | 83 | 106 | 122 | 143 | 10.5 | 25 | 6 |
| RTZ-52(EV51114) | 1000 | 225, 250, 300, 350, 400 | 51 | 89 | 107 | 126 | 146 | 10.5 | 38 | 6 |
| RTZ-52(EV63136) | 1000 | 450, 500, 600 | 63 | 88 | 118 | 152 | 182 | 13 | 50 | 10 |
| RTZ-52(EV89136) | 1000 | 700, 750, 800, 900, 1000, 1200, 1400, 1600, 2000 | 89 | 84 | 126 | 138 | 172 | 16 | 70 | 12 |
Overall installation dimension
Fig 3
| Prod Model: |
RTZ-50 |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
Low Voltage |
| Fusing Device: |
Link Break |
