DC Fuse for Solar PV System Protection

Name: DC Fuse for Solar PV System Protection
Brand: all-electronics-online.com
SKU: 831583985
Availability: InStock
Rating: 5 (100 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

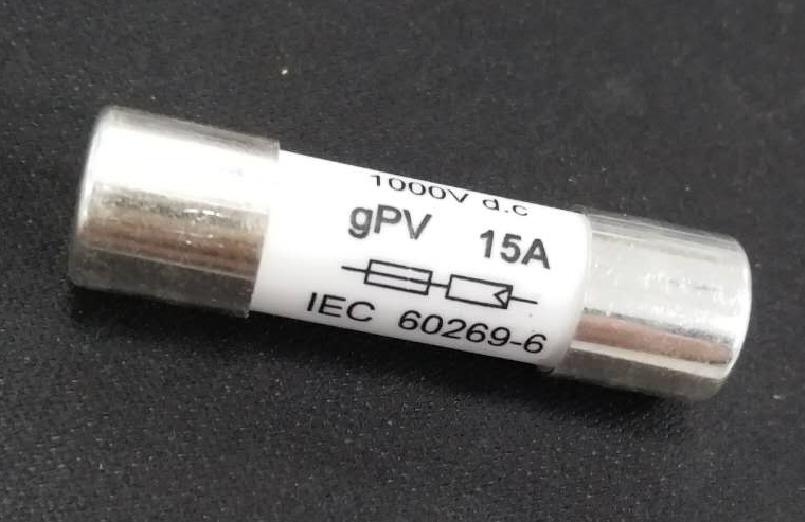

DC fuse for solar PV system protection

Performance standard: IEC60269.6;GB/T13539.6
Rated voltage: DC 24V~1500V
Rated current: 1A-400A
Breaking capacity: see parameter list
Protection type: gPV
Installation mode: Circular tube with base; insertion for square tube
Features: Full range DC breaking fuse link, time constant T ≤ 3ms.
It applies to the overload and short-circuit protection for solar PV system protective battery pack, PV sub-array, PV array and PV inverter
Specification parameters of PV cylindrical cap PV fuse

Model	Rated Voltage (V)	Rated Current(A)	Dimension (mm)			Breaking capacity (kA)	Outline Drawing No.
Model	Rated Voltage (V)	Rated Current(A)	ΦD	L	H	Breaking capacity (kA)	Outline Drawing No.
PV-1038	24-1000	1, 2, 3, 4, 5, 6, 8, 10, 12, 15	10.3	38	10.5	≥10	Fig.1
PV-1451	24-1000	20, 25, 32	14.3	51	13.8
PV-1085	1500	1, 2, 3, 4, 5, 6, 8, 10	10.3	85	10.5
PV-22127	1500	10, 12, 16, 25	22.2	127	16.2

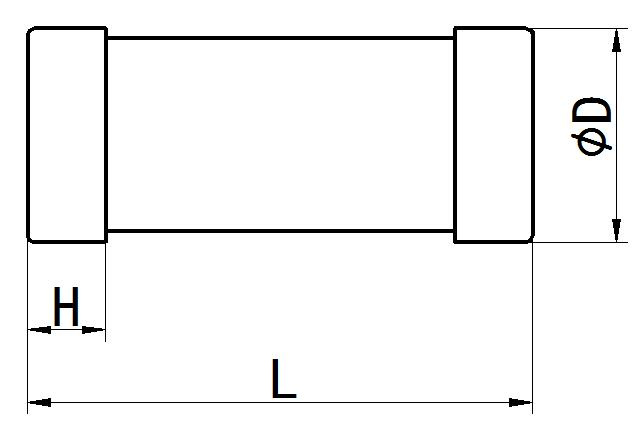

Overall installation dimension:

Fig 1

Specification parameters of PV square tube PV fuse

Model	Rated Voltage (V)	Rated Current(A)	Dimension (mm)						Breaking capacity KA	Outline Drawing No.
Model	Rated Voltage (V)	Rated Current(A)	A	B	C	D	E	H	Breaking capacity KA	Outline Drawing No.
PV-1C	1000	32, 40, 50, 63, 80, 100	70	135	48	62	20	6	≥50	Fig.2
PV-2C	1000	125, 160, 200, 250	70	150	58	72	25	6
PV-3C	1000	315, 400, 500	70	150	67	82	32	6
PV-1C	1500	32, 40, 50, 63, 80	120	185	48	82	20	6
PV-2C	1500	100, 125, 160, 200	120	200	58	72	25	6
PV-5C	1500	250, 315, 400	120	200	75	88	32	6

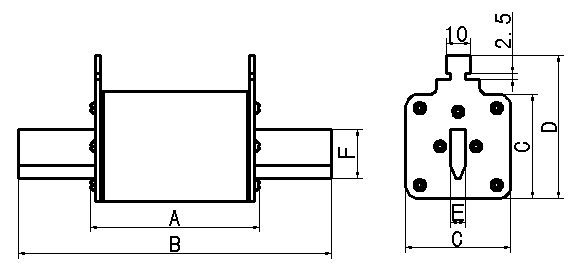

Overall installation dimension:

Fig.2

Prod Model:	PV-
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Fusing Device:	Link Break
