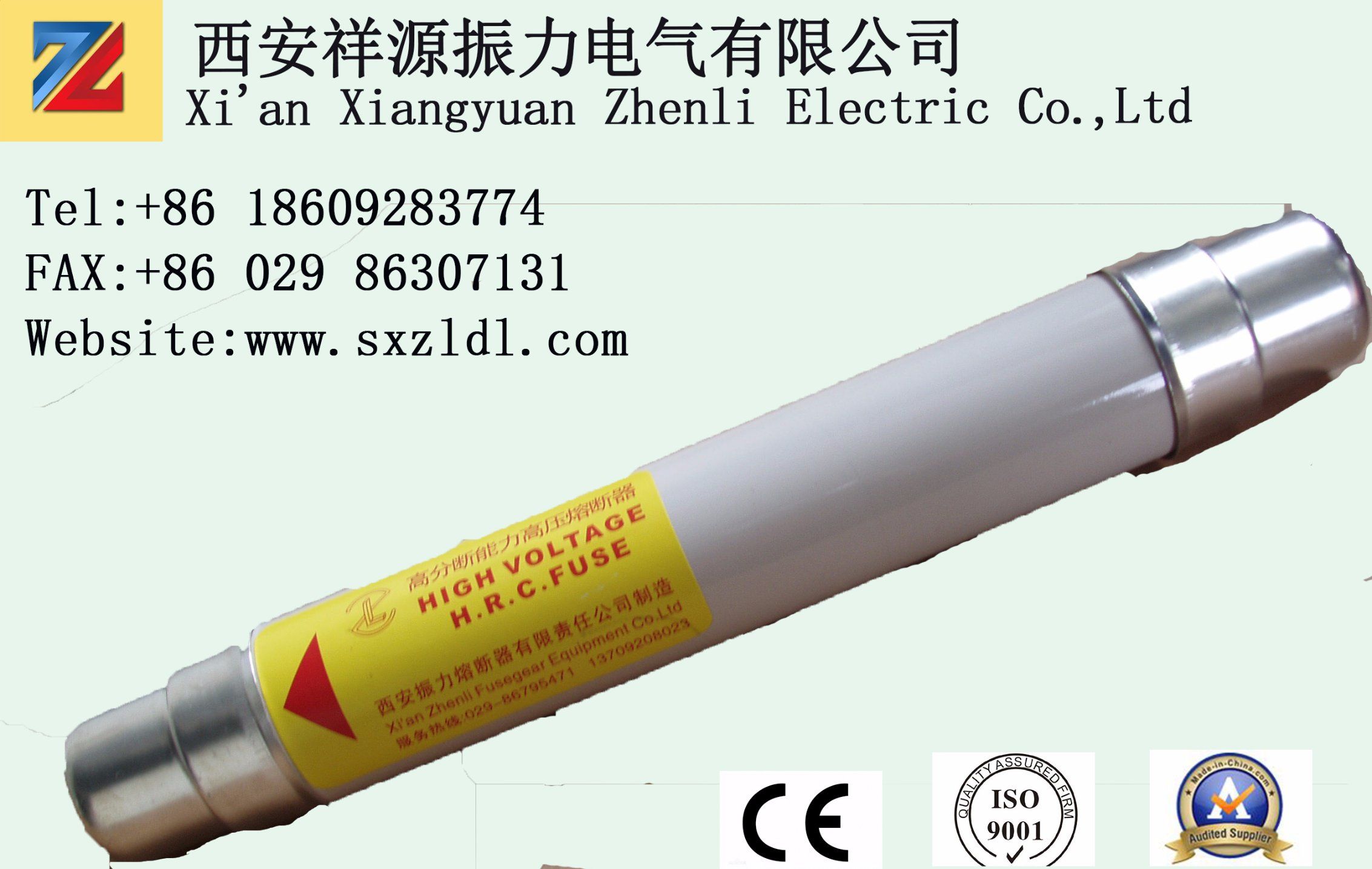

High-Voltage Current Limiting Fuse for Voltage Transformer Protection
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
This product applies to indoor AC 50~60Hz system with the rated voltage of 3.6 ~ 40.5kV for the overload and short-circuit protection of voltage transformer. The product has passed the type test conducted by the national high-voltage electrical equipment quality supervision and inspection center, and conforms to GB15166.2 and IEC282-1.ModelXRNP3A-/-50-I (type 1), II (type 2), III (type 3) and IV (type 4)Basic parameters | Model | Rated Voltage (kV) | Rated Current of Fuse Link (A) | Main Dimensions | Drawing No. | Rated Breaking Current (kA) |
| φA | L |
| XRNP3A-3.6 | 3.6 |
0.2, 0.5, 1, 2, 3.15, 5 |
φ25.4 |
195 |
Fig. 1 |
50 |
| XRNP3A-7.2 | 7.2 |
| XRNP3A-12 | 12 |
| XRNP3A-12 | 12 | 0.5, 1, 2, 3.15 | φ25.4 | 205 | Fig.5 |
| 1, 2, 3.15, 6.3, 10, 16 | φ51 | 192 | Fig.2 |
XRNP3A-24 |
24 | 0.5, 1, 2, 3.15 | φ25.4 | 324 | Fig.1 |
| 0.5, 1, 2, 3.15, 5, 6.3 | φ30 | 324 | Fig.3 |
| 1, 2, 3.15, 6.3, 10 | φ51 | 292 | Fig.2 |
XRNP3A-40.5 |
40.5 | 0.2, 0.5, 1, 2, 3.15 | φ25.4 | 465 | Fig.1 |
31.5 |
| 0.5, 1, 2, 3.15, 5 | φ30 | 465 | Fig.3 |
| 1, 2, 3.15, 5, 6.3, 10 | φ51 | 442 | Fig.2 |
| 0.5, 1, 2, 3.15, 5, 6.3 | φ41 | 440 | Fig.4 |
Main technical data The fuse under specified operating conditions is able to reliably break any fault current from the fusion current to the rated breaking current 50kA.Time - current characteristic curve is as shown in Fig. 6, Fig. 7 and Fig. 8.Current limiting characteristic curve is as shown in Fig. 9. Outline drawing of fuse

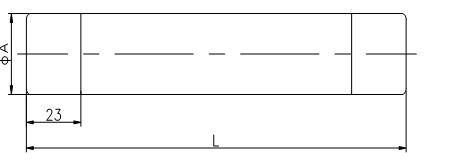

Fig. 1 XRNP3A- Outline drawing of type I
Fig. 2 XRNP3A- Outline drawing of type II

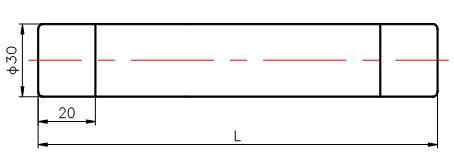

Fig. 3 XRNP3A- Outline drawing of type III

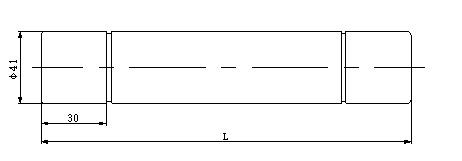

Fig. 4 XRNP3A- Outline drawing of type IV

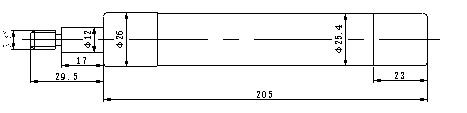

Fig. 5 XRNP3A Outline drawing of special product Main technical data Fuse is able to reliably break any fault current from the fusion current to the rated breaking current 50kA.

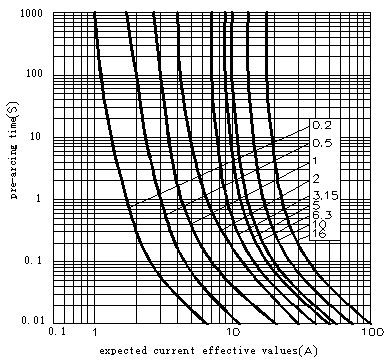

Fig. 6 XRNP3A-12 time - current characteristic curve Fig. 7 XRNP3A-24 time - current characteristic curve Fig. 8 XRNP3A-40.5 time - current characteristic curve Fig. 9 XRNP3A current limiting characteristic curve
| Prod Model: |
XRNP3A |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
| Fusing Device: |
Link Break |
