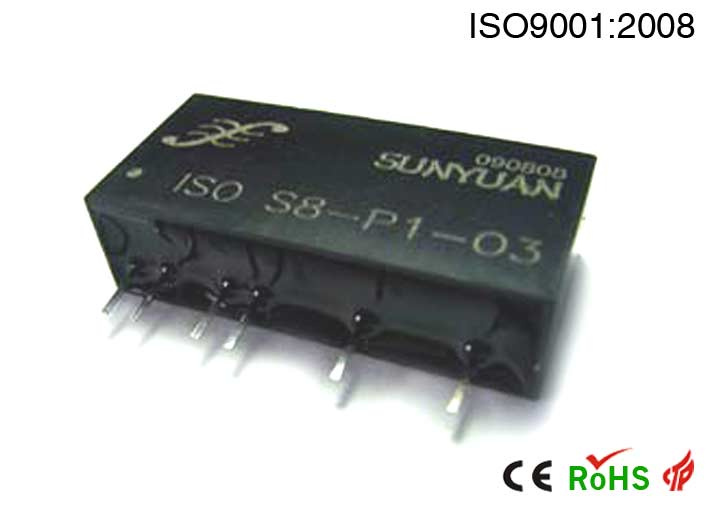

Speed Pulse Signal Isolated Transmitter
ISO S-P-O Series-
General characteristic:
>> Speed sensor signal input directly, square wave signal output
>> Sine wave, sawtooth wave signal input, square wave signal output
>> 200mV peak weak signal amplification and shaping
>> To maintain the original signal frequency, fast response
>> Power supply,signal,input/output: 3000VDC Three-port Isolation
>> Power supply:5V/12V/15V/24V
>> Low cost, ultra-small size, no need adjust, easy to use, high reliability
>> Standard SIP12 Pin, meet UL94V-0 flame-retardant package
>> Industry temperature range:-45~+85 deg.C
Applications:
>> Speed sensor signal isolation, acquisition and transformation
>> Locomotive speed measurement
>> Auto ABS anti-lock braking system
>> Speed signal amplification and shaping
>> Motor Speed Control System
>> CNC machine tool spindle speed measurement and alarm monitoring
>> Transmission and transmission of the signal without distortion
| category | Isolation Amplifier >> Speed Pulse Signal Isolation Amplifier |
| Output | 200mV-50V/0-5V/0-12V/0-24V | Output | 0-5V/0-12V/0-24V |
| Isolation method | photoelectricity isolation | Isolation Voltage: | 3000VDC |
| Package | SIP 12Pin | | |
| Remark | Speed Sensor Pulse Signal Isolation Transmitter |
