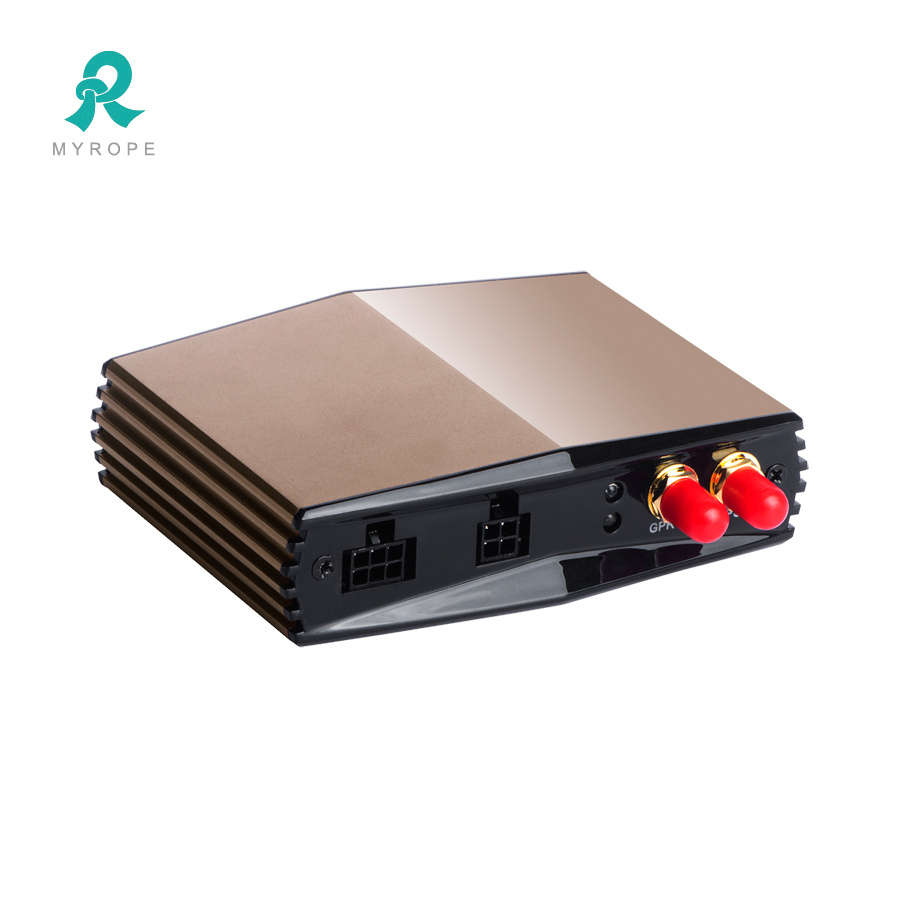

Stable performance realtime tracking car gps tracker 3g (M528G)
Functions
| Functions | Reports | Alarms |
| 3 G signal | Temperature report | Illegal door alarm |
| Realtime location | History playback report | SOS alarm |
| authorized tapping | Driving records report | Geo-fence alarm |
| data resend from signal dead zone | Vehicle mileage report | Over-speed alarm |
| data resend from signal dead zone | Fuel consumption report | Power-off alarm |
| detecting the status of engine, door, air condition | Parking report | fatigue driving alarm |
| Track by Time Interval | Runnin trip report | Moving alarm |
| Track on Mobile Phone APP | Alarm records report | Idling Alarm |
| Voice Monitoring | | |
Specifications| work voltage | 8VDC~36VDC |
| work current | 50mA~160mA |
| GSM module | Four Band: GSM 850/900/1800/1900Mhz |
| Communication protocol | UDP/TCP(can be customized) |
| GPS module | Ublox chipset |
| GPS sensitivity | -159dBm |
| GPS frequency | L1, 1575.42 MHz |
| C/A coding | 1.023 MHz chip rate |
| Channels | 20 channels examine track |
| Position accuracy | 10 meter, 2D RMS |
| Speed accuracy | 0.1 meter/second |
| Time accuracy | GPS time synchronization |
| Default data | WGS-84 |
| Recover | Average 0.1 second |
| Hot start | Average 1 second |
| Warm boot | Average 38 second |
| Cold boot | Average 42 second |
| Height limit | 18,000 meter (60,000 feet) max |
| Speed limit | 515 kilometer/second (1000 knots)max |
| Acceleration limit | Less than 4g |
| Work temperature | -20°~ 70° C |
| Storage temperature | -30°~ 85° C |
| Humidity | 5% ~ 95% noncondensing |
| Terminal size | 101 mm × 50mm × 24mm |
| Inside battery | Continuous working no less than 4 hours |
| LED light | Red: Power status;yellow:GSM module state |

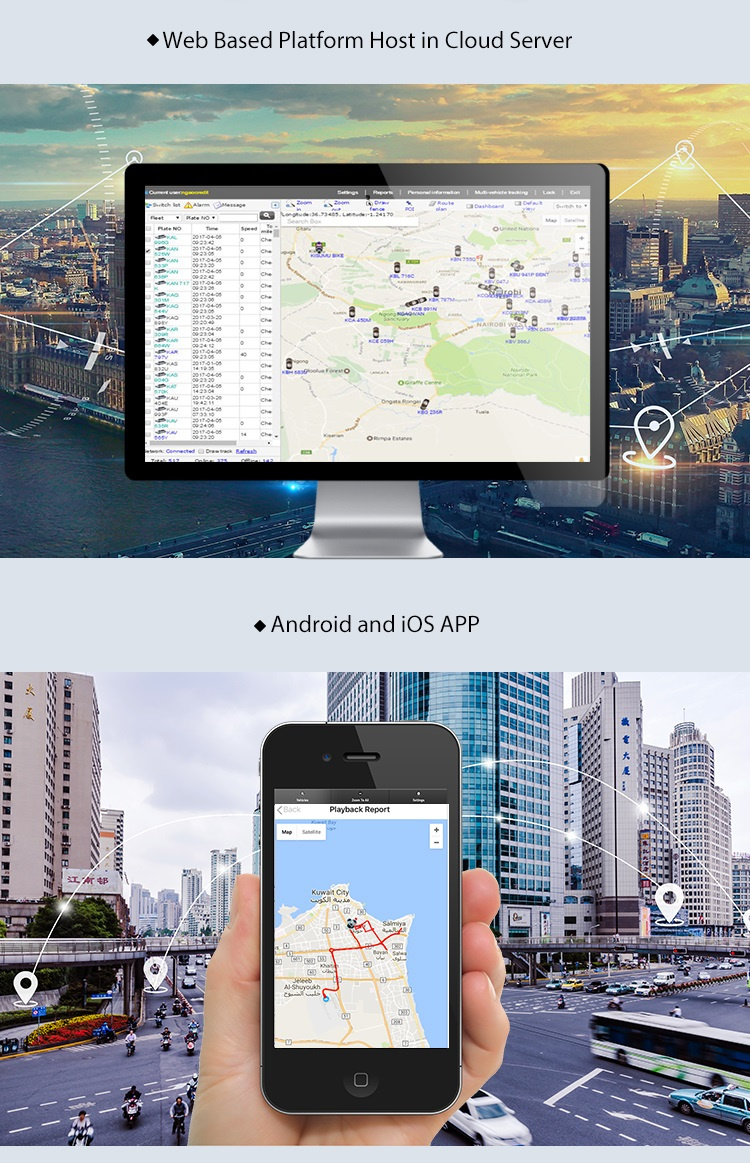

Web Platform & APP
1. Stable and fast response.
2. It can support more than 10000 units tracker .
3. Can track in real time.
4. Remote control the vehicle by changing the settings.
5. With full function like take photo, POI, Geo-fence, check alert message and etc.
6. We can customize the software as your requirements
7. Our software support 18 languages: Chinese, English, Russian, Spanish, Portuguese, Norwegian, Vietnamese, Arabic, Polish, Sinhala, Tamil, farsi, Danish, Serbian, Turkish, greek language, Georgian, Hrvatski.
8. Easy to manage.
9. Support many kinds of reports.
10. PC-based, Web-based and smart-phone based APP
]
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
