Stainless Steel 201 304 316 Metal Cable Gland

Name: Stainless Steel 201 304 316 Metal Cable Gland
Brand: all-electronics-online.com
SKU: 839847965
Availability: InStock
Rating: 4.6 (99 reviews)

Price:	US $ 1.9-2.2/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description

HJSi Waterproof IP68 Stainless Steel 201 304 316 316L Cable Gland .

Material: Body:SUS304/SUS316 ,Seal:Polyamide
Sealing:Modified rubber
Protection degree: Within the clamping range,and the use of O
sealing ring screw tight head ,its protection degree can reach IP68.
Operating temperature: Static condition: -40ºC to 120ºC, short-time150ºC.
Product Characteristics:special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease and other solvent.
Applications:Waterproof cable connector cable accessory
products,joint can access equipment box,can also according to the electric equipment selection of thread access import and export for internal thread.alkali proof demanded devicess ,machines and equipment

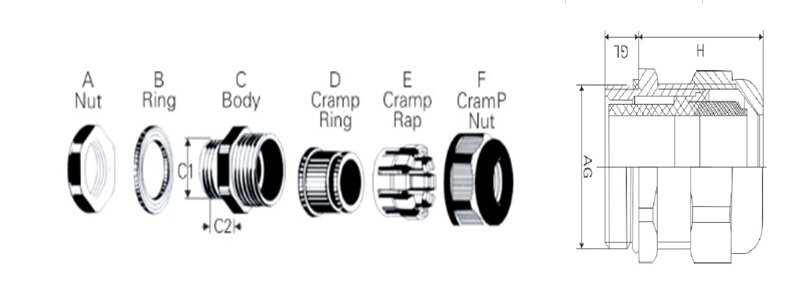

Thread	Item.No.	Cable Range	Thread O.D.	Thread Length	Spanner Size	Std.Pkg
	AG	Ф(mm)	C1(mm)	GL(mm)	A&F(mm)	(pcs)
M8 x1.25	HJS- M8-4	2-5	8	6	12	100
M10x1.5	HJS -M10-6.5	3-6.5	10	7	15/14	50
M12x1.5	HJS -M12-6	3-6.5	12	7	18/14	50
M12x1.5	HJS -M12-8	4-8	12	7	18/19	50
M14X1.5	HJS-M14-8	4-8	12	7	19/18	50
M16x1.5	HJS -M16S-8	4-8	16	7	21/19	50
M16x1.5	HJS -M16L-10	5-10	16	7	21/22	50
M18x1.5	HJS -M18-10	5-10	18	8	21/22	50
	HJS -M18-12	6-12	18	8	24/22	50
	HJS -M18L-10	5-10	18	8	21/22	50
	HJS -M18L-12	6-12	18	8	24/22	50
M20x1.5	HJS-M20S-12	6-12	20	8	22/24	50
	HJS -M20-14	9-14	20	8	24/27	50
	HJS -M20L-11	7-12	20	8	22/24	50
	HJS-M20L-14	9-14	20	8	24/27	50
M22x1.5	HJS -M22S-14	9-14	25	8.5	24/27	50
M25x1.5	HJS -M25-14	9-14	25	9	27/30	50
	HJS -M25-16	11-16	25	9	30/32	50
	HJS -M25-18	13-18	25	9	30/32	50
	HJS -M25L-18	13-18	25	13	30/32	50
M27x1.5	HJS-M27-18	13-18	25	10	30/32	50
M28x1.5	HJS-M28-18	13-18	25	10	30/32	50
M32x1.5	HJS-M32S-18	13-18	32	10	36/34	20
M32x1.5	HJS -M32-22	15-22	32	11	36/38	20
M36x1.5	HJS-M36-22	15-22	36	11	38/40	20
M36x1.5	HJS-M36-25	17-25	36	11	40/42	20
M40x1.5	HJS-M40-26.5	18-25	40	12	40/45	10
M40x1.5	HJS -M40-31	23-32	40	12	45/46	10
M50x1.5	HJS -M50-38	32-38	50	12	55/55	10
M50x1.5	HJS -M50-41	31-41	50	12	57/60	10
M63x1.5	HJS -M63-41	31-41	63	13	66/70	10
M63x1.5	HJS -M63-44	35-44	63	15	66/70	10

Prod Model:	M25
