Product Description

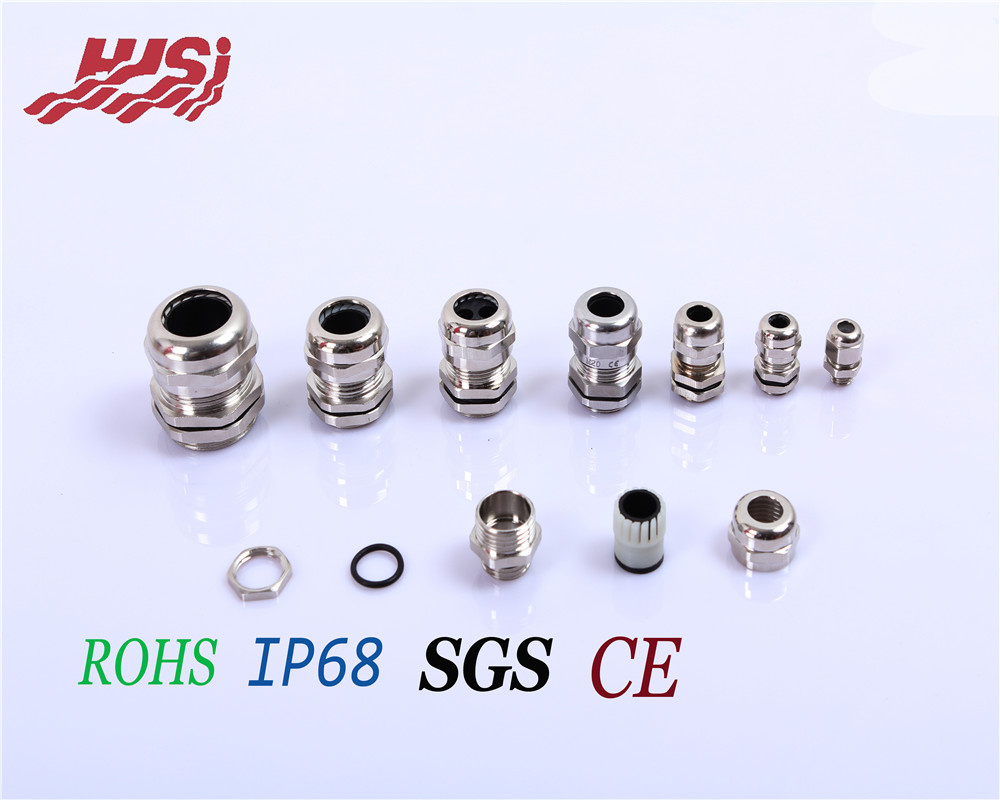

HJSi Waterproof IP68 Stainless Steel 303 304 316 316L Cable Gland
Thread Type : Metric and PG ,G,NPT

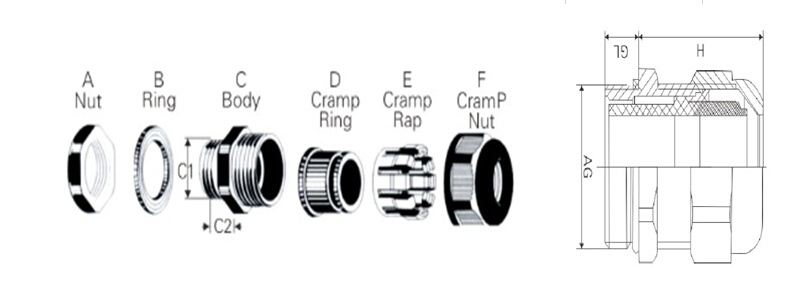

Material Data : Standard in Stainless steel for A.C.F parts . (304 and 316L all are available . Plastic for E parts . NBR for B.D parts .
IP Protection : IP68
Working Temp :- 40ºC to 105ºC , Short-term to 160 ºC
Application : With the higher requirements under tough conditions for stability & acid-alkali proof ,the rustproof and high strength stainless steel is adopted for building this tough cable gland to offering the best durability in weather ,flame ,chemical and high impact resistance to protect them from corrosion and high impact environment ,in addition ,the gland with AVC's Perfect clamping desigh provides the outstanding strain relief force &watertight performance over the entire cable range to be the best cable entry for tough oudoos /in door applications which is suitable for used in acid /alkali proof demanded devicess ,machines and equipment .

Thread	Item.No.	Cable Range	Thread O.D.	Thread Length	Spanner Size	Std.Pkg
	AG	Ф(mm)	C1(mm)	GL(mm)	A&F(mm)	(pcs)
M8 x1.25	HJS- M8-4	2-5	8	6	12	100
M10x1.5	HJS -M10-6.5	3-6.5	10	7	15/14	50
M12x1.5	HJS -M12-6	3-6.5	12	7	18/14	50
M12x1.5	HJS -M12-8	4-8	12	7	18/19	50
M14X1.5	HJS-M14-8	4-8	12	7	19/18	50
M16x1.5	HJS -M16S-8	4-8	16	7	21/19	50
M16x1.5	HJS -M16L-10	5-10	16	7	21/22	50
M18x1.5	HJS -M18-10	5-10	18	8	21/22	50
	HJS -M18-12	6-12	18	8	24/22	50
	HJS -M18L-10	5-10	18	8	21/22	50
	HJS -M18L-12	6-12	18	8	24/22	50
M20x1.5	HJS-M20S-12	6-12	20	8	22/24	50
	HJS -M20-14	9-14	20	8	24/27	50
	HJS -M20L-11	7-12	20	8	22/24	50
	HJS-M20L-14	9-14	20	8	24/27	50
M22x1.5	HJS -M22S-14	9-14	25	8.5	24/27	50
M25x1.5	HJS -M25-14	9-14	25	9	27/30	50
	HJS -M25-16	11-16	25	9	30/32	50
	HJS -M25-18	13-18	25	9	30/32	50
	HJS -M25L-18	13-18	25	13	30/32	50
M27x1.5	HJS-M27-18	13-18	25	10	30/32	50
M28x1.5	HJS-M28-18	13-18	25	10	30/32	50
M32x1.5	HJS-M32S-18	13-18	32	10	36/34	20
M32x1.5	HJS -M32-22	15-22	32	11	36/38	20
M36x1.5	HJS-M36-22	15-22	36	11	38/40	20
M36x1.5	HJS-M36-25	17-25	36	11	40/42	20
M40x1.5	HJS-M40-26.5	18-25	40	12	40/45	10
M40x1.5	HJS -M40-31	23-32	40	12	45/46	10
M50x1.5	HJS -M50-38	32-38	50	12	55/55	10
M50x1.5	HJS -M50-41	31-41	50	12	57/60	10
M63x1.5	HJS -M63-41	31-41	63	13	66/70	10
M63x1.5	HJS -M63-44	35-44	63	15	66/70	10

Prod Model:	M20
