Stainless Steel S Type Load Cell Ppm225-Ls1-1

Name: Stainless Steel S Type Load Cell Ppm225-Ls1-1
Brand: all-electronics-online.com
SKU: 819954825
Availability: InStock
Rating: 4.9 (53 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM225-LS1-1
Certification:	CMC

Product Description

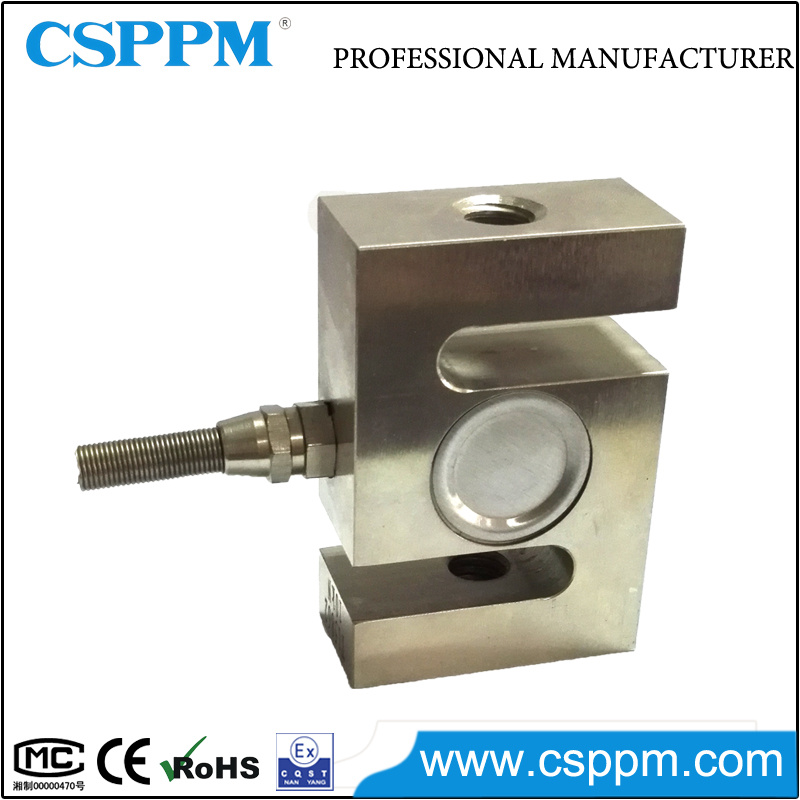

S Type Load Cell

Description
PPM225-LS1-1 load cells are available in the capacities from 5kg to 20t. They features Alloy aluminum construction with S type, integral structure and easy installation. They are suitable for platform scales and other electronic weighing devices.

Specification

Capability	0.1~20 kN
Comprehensive precision	0.5%FS
Sensitivity	1.0~1.5 mV/V
Creep	±0.05%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.05%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	350±20Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy or Stainless steel
Protection class	IP 67
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

Dimensions: mm

Capacity	Dimensions
kN	A	B	C	M
kN	A	B	C	mm	inch
0.05~0.5	64	51	12.7	M8	1/4-28
1~7	76	51	19.1	M12	1/2-20
10~15	76	51	25.4	M12	1/2-20
20~50	108	76	25.4	M20	3/4-16
75~100	178	127	51	M30	1¼-12
200	188	140	60	M36*3	1½-12

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
