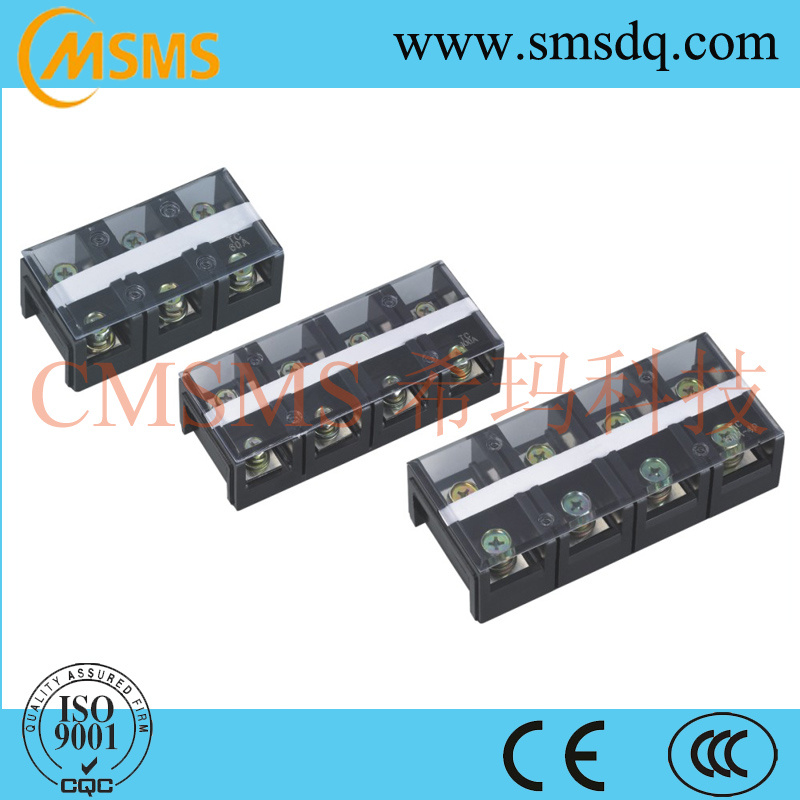

Stc Series Fixed Terminal Blocks

Name: Stc Series Fixed Terminal Blocks
Brand: all-electronics-online.com
SKU: 636955035
Availability: InStock
Rating: 4.5 (49 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

STC Series high current terminals is adopt board screw connection type,
Voltage rating 600V, current rating 60A, 100A, 150A, 200A, 300A, 400A, 500A, 600A. Wire across section 10-300mm2. It is easy to setting for high current connection in many electric equipments.

The series terminals have PVC marker and dustproof cover board for easy to setting and use.

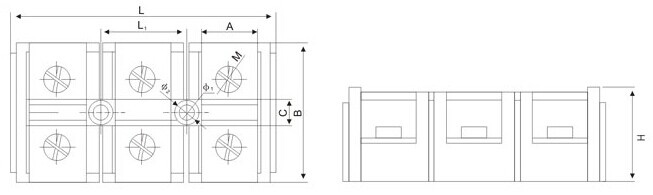

The series terminals also can perforate in soleplate for setting, referring to fix map.

Item No.	Rated Current (A)	Pole	Dimensions (mm)						Screw (mm)	Order No.
Item No.	Rated Current (A)	Pole	L1	φ 1	φ 2	L	B	H	Screw (mm)	Order No.
STC-603	60	3	28.5	5.4	10	85	42	33	M6	12001
STC-604	60	4	57	5.4	10	114	42	33	M6	12002
STC-1003	100	3	34	6	10	102	54	38	M7	12003
STC-1004	100	4	68	6	10	136	54	38	M7	12004
STC-1503	150	3	38	6	11.5	115	66	42	M8	12005
STC-1504	150	4	76	6	11.5	153	66	42	M8	12006
STC-2003	200	3	44	8.3	11.5	131	71	47	M8	12007
STC-2004	200	4	88	8.3	11.5	177	71	47	M8	12008
STC-3003	300	3	55	8.3	11.5	164	90	53	M10	12009
STC-3004	300	4	110	8.3	11.6	220	90	53	M10	12010
STC-4003	400	3	55	8.3	11.6	164	90	53	M10	12011
STC-4004	400	4	110	8.3	11.6	220	90	53	M10	12012
STC-5003	500	3	68.5	8.7	11.6	206	100	72	M12	12013
STC-5004	500	4	137	8.7	11.6	275	100	72	M12	12014
STC-6003	600	3	68.5	8.7	11.6	206	100	72	M12	12015
STC-6004	600	4	137	8.7	11.6	275	100	72	M12	12016

Prod Model:	Stc Series Fixed Terminal Blocks
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Transmission of Electrical Signals
Type:	Hook Terminals
Material:	Copper
