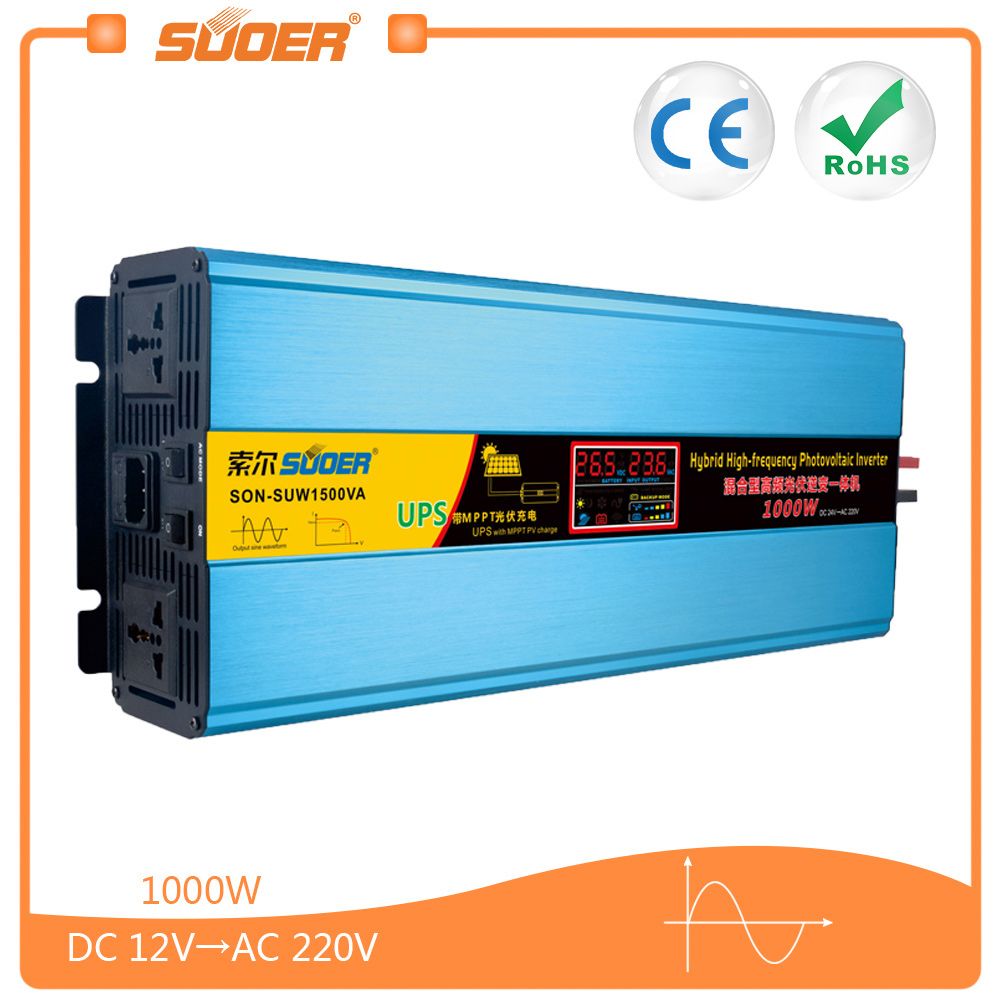

Suoer Frequency Photovoltaic 1000W DC 24V to AC 220V Sine Wave Inverter (SON-SUW1500VA)

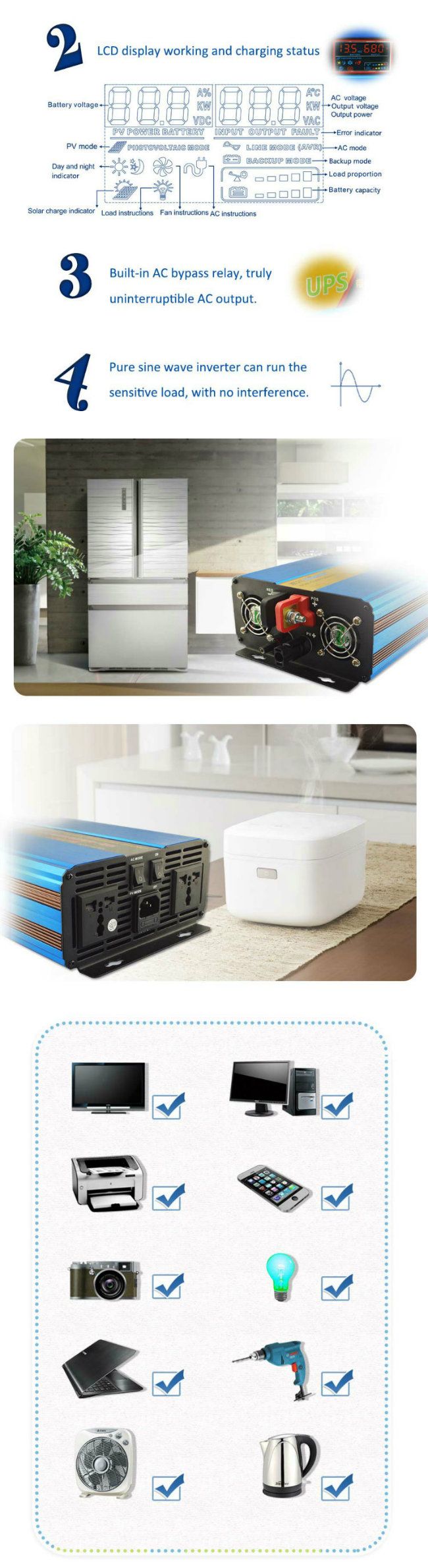

New Features1.LCD screen display
2.Built-in 20A MPPT charge controller
3.Buit-in 15A AC charger
4.Rated power 1000W,Peak power 2000W
5.Built-in electric relay of bypass AC,True uninterruptable power supply
6.Pure sine waveform output,Input and output are completely independent
7.Conversion efficiency is up to 88% with power saving mode
8.Most competitive price ever
9.Multiple protections of Input reverse polarity/undervoltage/overvoltage/short circuit/overload/over temperatureSpeicification
This hybrid high frequency photovoltaic inverter built in MPPT charge controller and mains charger. High-speed chip centralized control, overload protection, over current protection, high temperature protection, short circuit protection, battery high and low voltage protection. LCD display shows the machine operation and setup parameters. Using high quality components to ensure product quality and high performance. The inverter's output waveform is pure sine wave.
VI Function Description:
AC charging mode(City power mode): this mode is mainly used as standby power supply, which is mainly charged by city power. When the city power supply is in excess of the allowable limit, the inverter will enter the stand-by power supply mode (powered by the inverter), automatically switch to charging mode, switching time is less than 6 milliseconds. In this mode the city power charger and PV MPPT charging function will be enabled under the right conditions. This function is especially designed for the situations that the city power supply is not stable and electrical equipment needs a continuous power supply.
PV charging mode (solar power mode):
this mode is mainly used as photovoltaic power generation. When the solar power is insufficient, or when the battery voltage is lower than 22V, this machine will automatically switch to the city power supply, when the battery capacity is recharged to 80% of the capacity(the battery voltage is recovered to 28V or higher), the inverter will switch back to photovoltaic power supply (power inverter). During this mode the city power charging function will be deactivated. This function is mostly depended upon the stability of the city power supply and adequate illumination,the inverter will be preferred for generating power from solar energy
PV MPPT charging function will be enabled under the right conditions in two power supply modes above.

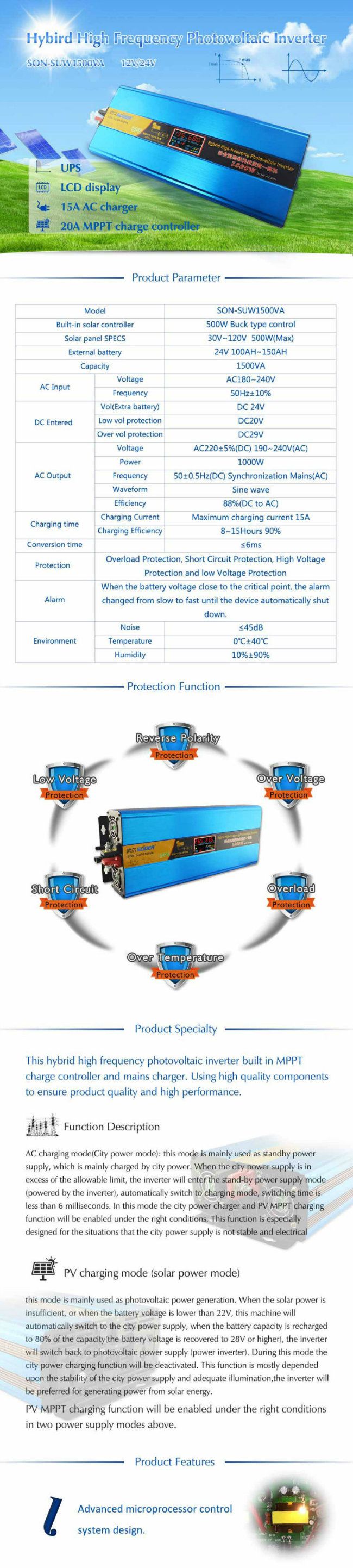

Technical parameters
| Model | SON-SUW1500 |
| Built-in solar controller | 500W Buck Type Control |
| Solar Panel SPECS | 30V~120V 500W (Max) |
| External battery | 24V 100Ah~150Ah |
| Capacity | 1500VA |
| AC Input | Voltage | AC180~240V |
| Frequency | 50Hz±10% |
| DC Entered | Voltage (External Battery) | DC24V |
| Low Voltage Protection | DC20V |
| Over Voltage Protection | DC29V |
| AC Output | Voltage | AC220V±5% (DC) 190-240V (AC) |
| Power | 1000W |
| Frequency | 50±0.5Hz (DC) Synchronization Mains (AC) |
| waveform | Sine Wave |
| Efficiency | 88% (DC TO AC) |
| Charging Time | Charging Current | Maximum charging current 15A |
| Charging Efficiency | 8~15 Hours 90% |
| Conversion Time | ≤6ms |
| Protection | Overload Protection, Short Circuit Protection, High Voltage Protection and low Voltage Protection |
| Alarm | When the battery voltage close to the critical point, the alarm changed from slow to fast until the device automatically shut down. |
| Environment | Noise | ≤45dB |
| Temperature | 0ºC±40ºC |
| Humidity | 10%±90% |

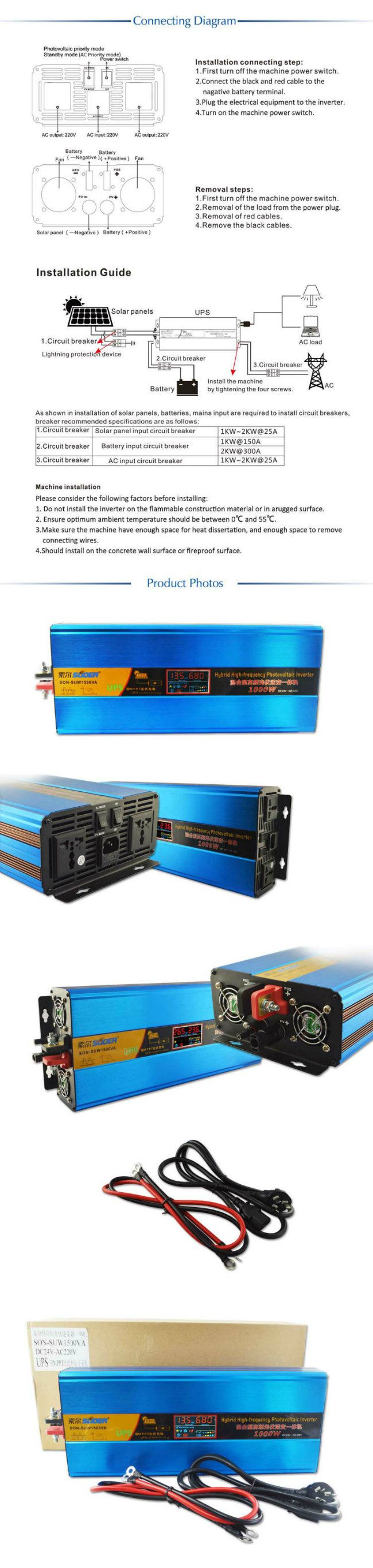

Product photos
