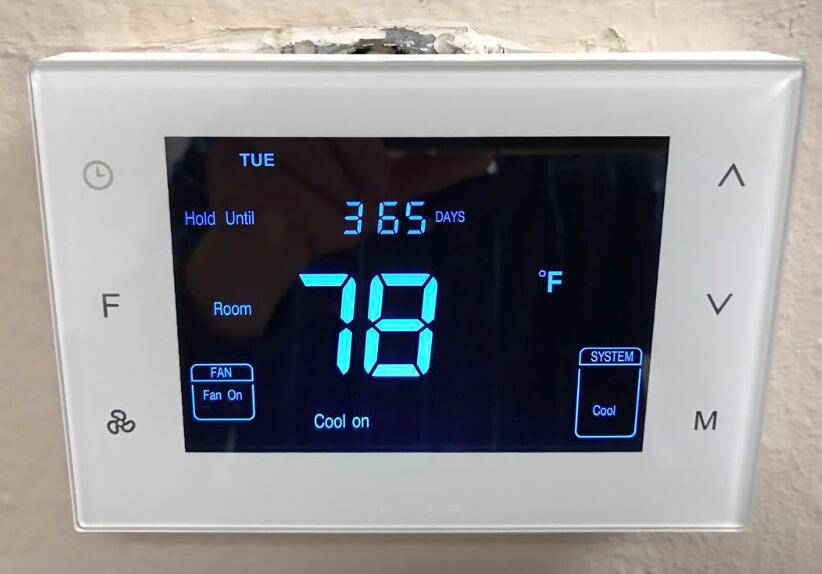

Surface Wall Mount 24V Conventional Heat Pump System Single Multi Stage HVAC Thermostat

Surface Wall Mount 24V Conventional Heat Pump System Single Multi Stage HVAC Thermostat
>> General
HTW-81-FN7 Series Multi-Stage Digital Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>>Features
--Elegant design with 4.3" LCD display
-- Individual programming Schedules:7 days*4 time periods
-- Tempered glass panel with capacitive touch buttons
-- NTC thermistor

>>Specification
>>Power supply: AC24V, 50Hz
>>Power dissipation:2W Dimension: 136*94*26mm Output: <1A (Resistant load)

>>Temperature range: 41ºF -99ºF (5ºC -37ºC)
>>Display accuracy: ±0.5 ºC
>>Wiring: Terminals
 >>Installation dimension: 60mm / 82mm (hole pitch)
>>Application

 >>1H/1C (conventional)
 >>1H/2C (conventional)
 >>2H/2C (conventional)
 >>2H/1C (conventional)
 >>1H/1C (heat pump)
 >>2H/1C (heat pump)
 >>2H/2C (heat pump)
 >>3H/2C (heat pump)

>>Wiring Diagram


>>Wiring Diagram
 >>Terminal Instruction

Terminals					Explanation			Remark
RC				Cooling power (two transformers)			Joined with R by jumper (one transformer)
	R			Heating power (two transformers)			Joined with RC by jumper (one transformer)
W (O/B)					Heat output		Changeover valve output (heat pump)
	Y				Cool output		Compressor output (heat pump)
	G				Fan output
	C				24VAC common		Connect only when AC power
Y2					Cool output 2		2nd stage compressor output (heat pump)
W2(AUX)					Heat output 2		Auxiliary heat output (heat pump)

>>Controlling Type Configuration


No.					Type		Terminals		Wiring	Compressor delay
0.0			1H/1C (conventional)				R,G,W,Y		Diagram	none
1.0			1H/2C (conventional)				R,G,W,Y,Y2			none
									conventional
2.0			2H/2C (conventional)				R,G,W,Y,W2,Y2			none
									systems
3.0			2H/1C (conventional)				R,G,W,Y,W2			none
4.0			1H/1C (heat pump)				R,G,O/B,Y			1 min (default)
5.0			2H/1C (heat pump)				R,G,O/B,Y,AUX		Diagram heat	1 min (default)
									pump systems
6.0			2H/2C (heat pump)				R,G,O/B,Y,Y2			1 min (default)
7.0			3H/2C (heat pump)				R,G,O/B,Y,AUX,Y2			1 min (default)

 --Note: Before operation, pls set the controlling type based on the real situation by referring to the Secret Menu (last page) and following the instruction.
