Sx Miniature Circuit Breaker-Circuit Breaker-IEC Standard-MCB

Name: Sx Miniature Circuit Breaker-Circuit Breaker-IEC Standard-MCB
Brand: all-electronics-online.com
SKU: 812057465
Availability: InStock
Rating: 4.9 (102 reviews)

Price:	US $ 1.9-7.3/Piece
Min Order:	96/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

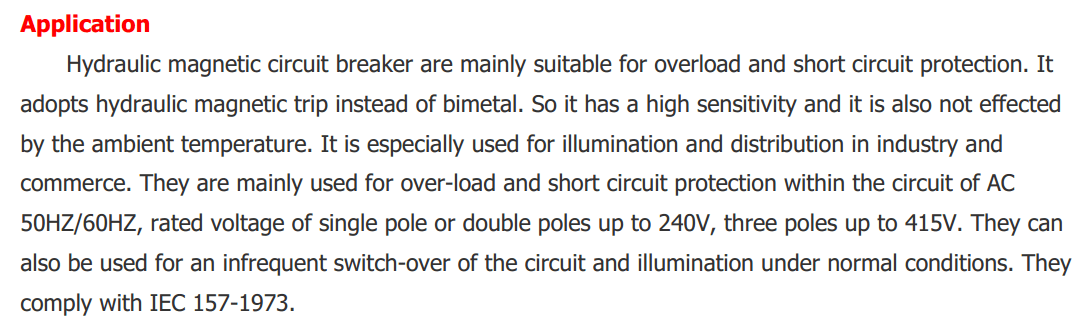

MCB SX Hydraulic magnetic mini circuit breaker is mainly suitable for overload and short circuit protection. It adopts hydraulic magnetic trip instead of bimetal. So it has a high sensitivity and the ambient temperature does also not affect it. It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole or double poles up to 240V, three poles up to 415V. They can also be used for an unfrequented switchover of the circuit and illumination under normal conditions. They comply with IEC 157-1973 BC4752-1977 and BS 3871.

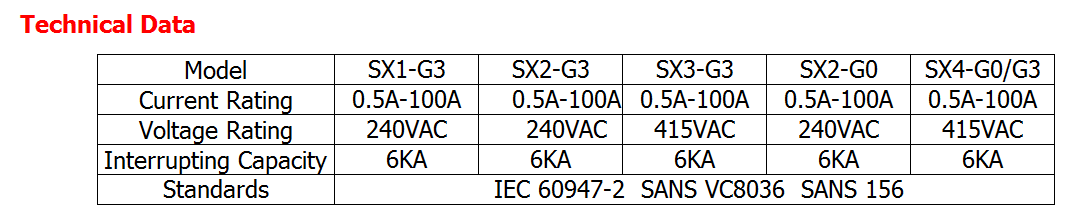

Prod Model:	SX1-G3
Characteristic:	Hydraulic Magnetic
Coulur:	Black Body+Red Handle
Interrupting Capacity:	6ka
Standards:	IEC 60947-2 Sans Vc8036 Sans 156
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Open Frame
Structure:	MCB
Poles Number:	1
Certification:	CNAS,Ma
