SZ9 On-Load Tap Changer Power Transformer

Name: SZ9 On-Load Tap Changer Power Transformer
Brand: all-electronics-online.com
SKU: 618817642
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SZ9-11, SZ9-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	10kv
Connecion Method:	Yyn0 or Dyn11
Rated Capacity:	100kVA-16000kVA
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Auto-transformer
Brand:	Powlik

Product Description

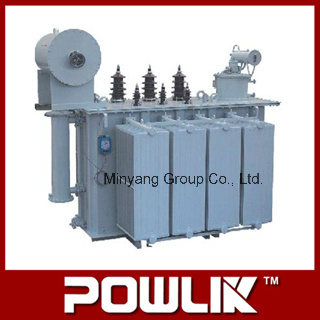

SZ9 On-Load Tap Changer Power Transformer

SZ9 Transformers are mainly used for carry current:

A.Stability of the load center voltage power grid in order to improve power supply quality;

B.As a liaison between the two networks transformers, distribution networks to use a set divided between the load;

C.For a load-current and power supply, to increase production efficiency sites;

D.On the need for strict control voltage occasions, such as electronics, medicine used power transformers

SZ9 10KV
Rated Capacity (KVA)	Voltage Group(KV)			Connection Method	Dissipation(KW)		No-load Current (%)	Impedance Voltage (%)	Gauge (Longitudinal/transverse direction)
Rated Capacity (KVA)	High-voltage	Tapping range of HV	Low-voltage	Connection Method	No-load	Load(75C)	No-load Current (%)	Impedance Voltage (%)	Gauge (Longitudinal/transverse direction)
SZ9-100/10/6	6 6.3 10	4*2.5%	0.4	Yyn0 or Dyn11	0.29	1.5	1.5	4	660/660
SZ9-125/10/6					0.34	1.8	1.4
SZ9-160/10/6					0.41	2.2	1.3
SZ9-200/10/6					0.43	3.10	1.3
SZ9-250/10/6					0.52	3.60	1.2
SZ9-315/10/6					0.61	4.30	1.1
SZ9-400/10/6					0.80	5.30	1.0		750/750
SZ9-500/10/6					0.88	6.20	1.0
SZ9-630/10/6					1.12	7.70	0.9	4.5
SZ9-800/10/6					1.36	9.40	0.8		820/820
SZ9-1000/10/6					1.59	11.00	0.7
SZ9-1250/10/6					1.87	13.10	0.6
SZ9-1600/10/6					2.40	15.60	0.6
SZ9 35KV
Rated Capacity (KVA)	Voltage Group(KV)			Connection Method	Dissipation(KW)		No-load Current (%)	Impedance Voltage (%)	Gauge (Longitudinal/transverse direction)
Rated Capacity (KVA)	High-voltage	Tapping range of HV	Low-voltage	Connection Method	No-load	Load(75C)	No-load Current (%)	Impedance Voltage (%)	Gauge (Longitudinal/transverse direction)
SZ9-2000/35	35	±3*2.5%	6.3 10.5	Yd11	2.90	20.00	1.0	6.5	1070/1070
SZ9-2500/35	35				3.30	22.00	1.0	6.5
SZ9-3150/35	35 38.5				4.00	26.00	0.9	7.0
SZ9-4000/35					4.90	30.50	0.9
SZ9-5000/35					5.80	35.00	0.9
SZ9-6300/35					7.00	39.00	0.9	7.5	1475/1475
SZ9-8000/35			6.3 6.6 10.5 11	Ynd11	8.90	44.00	0.8		1475/1475
SZ9-10000/35					10.50	51.00	0.75		2040/2040
SZ9-12500/35					12.60	60.50	0.70	8.0
SZ9-16000/35					15.20	74.00	0.70	8.0

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
