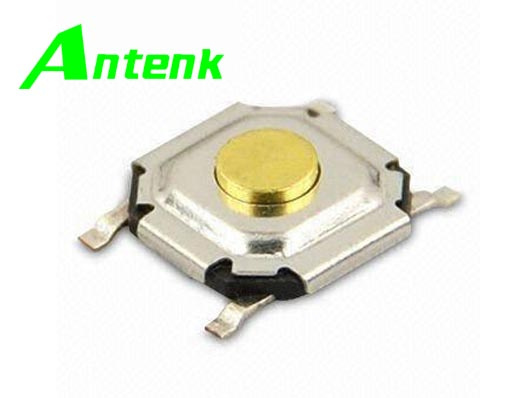

Tact Switch, with Five Directional Functions, Different Sizes Are Available

Tact Switch with Five Directional Functions, Different Sizes are Available

Made from high-quality materials

Reliable performance

Different sizes are available

Ratings: 15V DC, 20mA

Circuit: 1C to 1P

Stroke:

Lever: 1.0mm

4-directional: 8°

Operating force: Center push: 580± 150gf, 4-direction: 280± 100gf

Contact resistance: 100 milliohms maximum

Operating life: 50, 000 cycles

Dielectric strength: 500V

Terminal strength: 500gf

Displacement of actuator (knob): 1kgf

Bump test: In three vertical-axes directions, each direction was applied to 100 cycles at an acceleration of 100m/2

Shock test: Frequency 10 to 50 to 10Hz, 10 cycles at swing of 3.5mm

Solderability test: In the solder bath of 230 +/- 5 degree Celsius for 3 +/- 0.5 seconds

Resistance to soldering heat test: In the solder bath of 280 +/- 5 degree Celsius for 3 +/- 0.5 seconds

Temperature variety: Stored at a temperature of -25 to 70 degree Celsius for 30 minutes, each 10 cycles of transition with intervals of 2 to 5 minutes

Cold test: At -25 +/- 3 degree Celsius for 48 hours

Heat test: At 70 +/- 2 degree Celsius for 48 hours

Humidity test: At 40 +/- 2 degree Celsius and 90 to 95% humidity for 96 hours

Practical temperature range: -16 to 60 degree Celsius.
