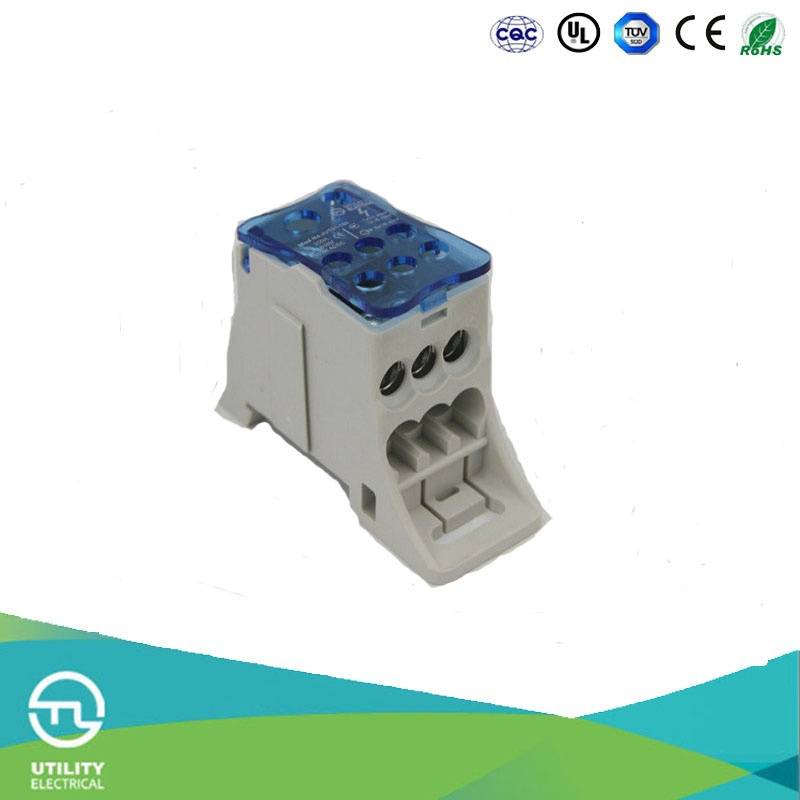

UTL Made In China Universal 1 in 7 out 1 in 12 out Terminal Block Al Cu Distribution Connector 80mm 125mm 160mm
Product Detail
Features:
Material:
Cover: PC UL94-V0 Body: PA66 UL94-V0 Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated) Fixed Part: Steel(Zinc Plated) Standard: IEC 60947-7-1 IP20
Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;
| Model No. | JUT11-125 |
| Item name | Universal Power Distribution Terminal Block |
| Color | Blue or OEM |
| Current (Amp) | 150A |
| Voltage(V) | 690V IEC |
| Dimensions (LxWxH) | 29x46x77(mm) |
| Insulation resistance | DC 1000V 1000MΩ min |
| Income line specification | →In10 to 35 x1
→In 6 to 16 x4
Out→2.5 to 16 x2 |
| Mouldar | Single-strand line,can be extended jumper,can be double neutral line |
| Payment term | A.Below US$300,western,paypal accepted
B.Above US$3000,bank account |
| Certificate | TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard |
| Logo | Customized logo are available as request |
| Design ability | We can supply sample,OEM&ODM is welcome |
Structure
| UK1.5N | JUT1-1.5 | SAK2.5EN | JUT2-2.5 |
| UK3N | JUT1-2.5 | SAK4EN | JUT2-4 |
| UK2.5B | JUT1-2.5B | SAK6EN | JUT2-6 |
| UK5N | JUT1-4 | SAK10EN | JUT2-10 |
| UK6N | JUT1-6 | SAK16EN | JUT2-16 |
| UK10N | JUT1-10 | SAK35EN | JUT2-35 |
| UK16N | JUT1-16 | SAK70/35 | JUT2-70 |
| UK35N/UKH25 | JUT1-35 | EK2.5/35 | JUT2-2.5PE |
| UKH50 | JUT1-50 | EK4/35 | JUT2-4PE |
| UKH70/UKH95 | JUT1-95 | EK6/35 | JUT2-6PE |
| UKH150 | JUT1-150 | EK10/35 | JUT2-10PE |
| UKH240 | JUT1-240 | EK16/35 | JUT2-16PE |
| USLKG1.5N | JUT1-1.5PE | EK35/35 | JUT2-35PE |
| USLKG2.5 | JUT1-2.5B/PE | ASK1/EN | JUT2-4RD |
| SLKG2.5N/USLk | JUT1-2.5PE | EW35 | E/2 |
| USLKG5 | JUT1-4PE | AKB2.5 | JUT2-2.5E |
| UKK3 BU | JUT1-2.5/2 | DK4QEN | JUT2-4/2 |
Rlated Products
UTL ELECTRICAL CO.,Ltd specialized in producing all kind of terminal block.Through persistent research and development,we have grown into a leading manufacturer of this line. We produce several series products for you choose,if you are interesting in any of our product Please feel free tocontact us or e-mail uswe are happy to give you more details .
Packaging & Shipping
Shipping:
Samples:will be prepared within three days.
Bulk order:around one weekdays.
Large order:20-25 days will be OK.
Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
Work Shop
UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.
"UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.
Certifications
UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.
Contact Us
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: Samples will be prepared within three days.
8. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
