Terminal Wire Electric Cartridge Heater Heating Element

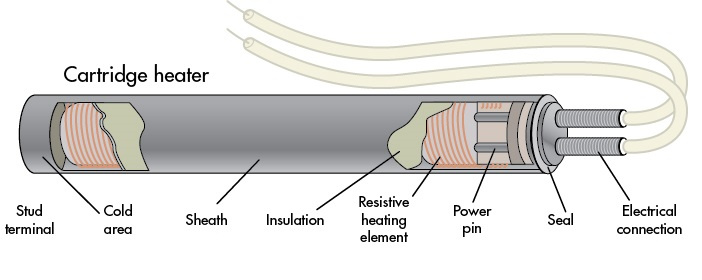

Material Specification
- Welded watertight base (Tig).
- Stainless steel AISI 304/316/321/ INCOLOY.
- Disc ceramic insulator.
- Pure magnesium oxide (UCM, Tateho).
- Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.
- MGO Rod: Tateho, OTC.
- High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.
- Conductor without connections.
Features of Product
1. Diameter: 2.5mm - 32.5mm
2. Length: 10mm - 6000mm
3. High power density
4. Long life cycle
5. Warranty: One year
6. Different type of wire available according to the usage environment.
· Injection moulding - Internal heating of nozzles
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of cutting bars
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Medical - Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
· Telecommunications - Deicing, Enclosure Heater
· Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters
· Food Service - Steamers, Dish Washers,
· Industrial - Packaging Equipment, Hole Punches, Hot Stamp.

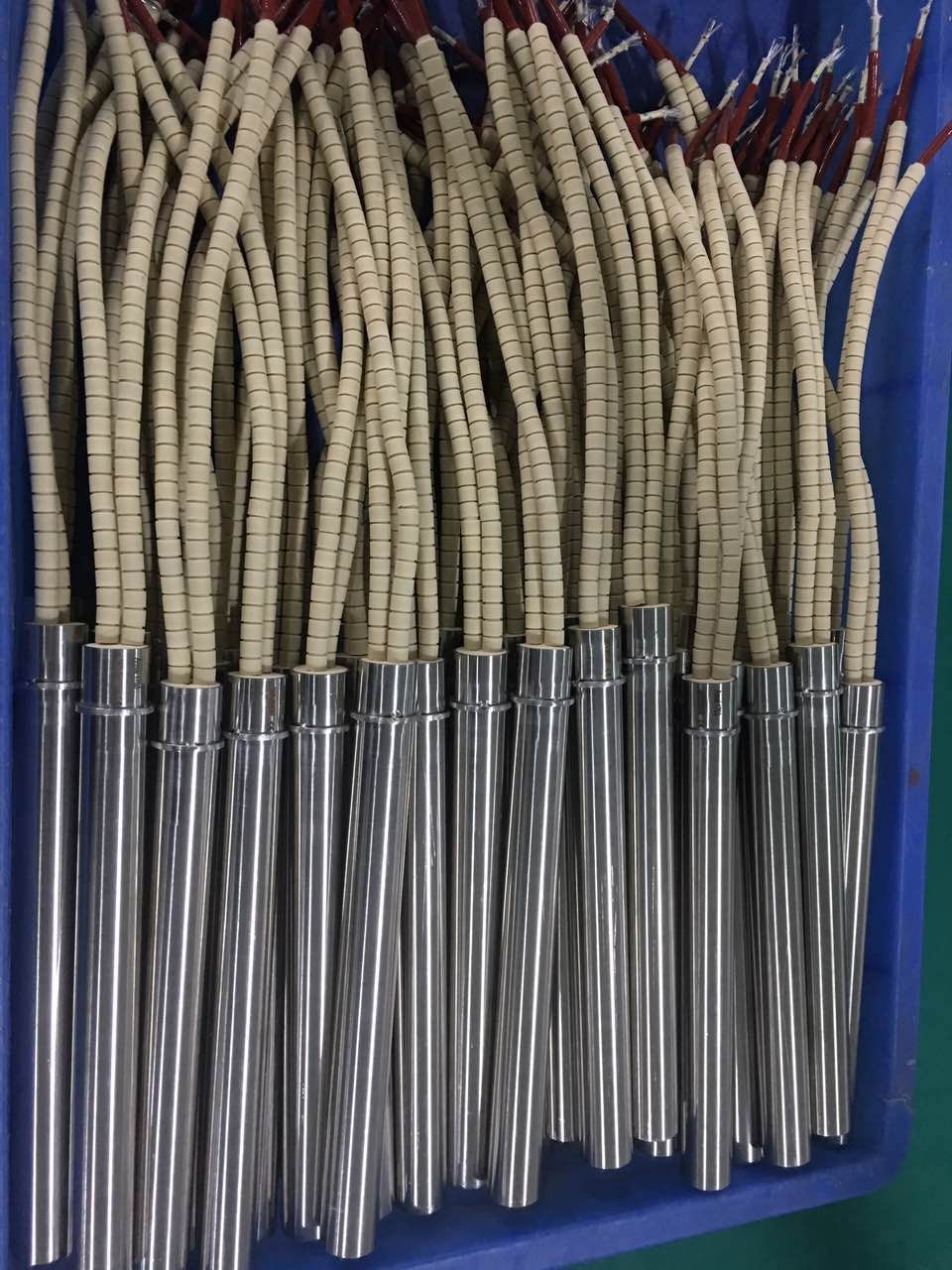

Product Shows
Technical Data
| Name | Terminal Wire Electric Cartridge Heater Heating Element |
| Diameter(mm) | 2.5-32.5mm (Non-standard can be customized) |
| Length | 10mm - 6000mm |
| Max Wattage | 40w/cm2 |
| Application | Mold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc |
| Max temperature | 927 ºC |
| Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
| Input voltage | 12V-440V (non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |
Connecting wires
a. Fiberglass insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon wire (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
Packaging & Delivery
1. Packaging Details: Terminal Wire Electric Cartridge Heater Heating Element
Export packaging : wooden box;
2. Delivery Time: About 5-7 days after getting payment ( according to quantity );
3. Delivery ways: by air, sea or express.
