Customized High Density High Power Electric Heating Element
| Price: |
Negotiable/Piece |
| Min Order: |
3/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
;

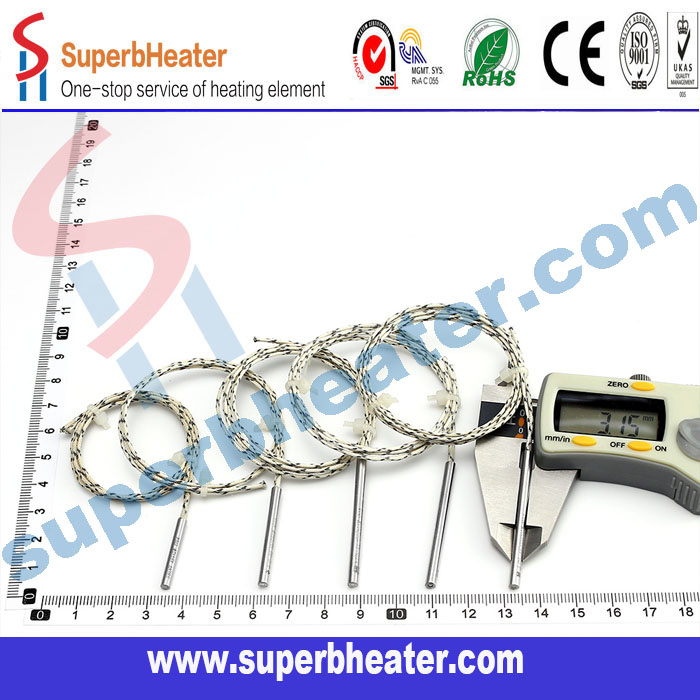

Heating of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.superb heater manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.Recommended for temperatures up to 850°CAll Cartridge Heaters are available with a built in Thermocouple Type J or KDiameter (Metric) [mm]:2.50mm; 2.8mm 3mm; 3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm; 6mm;;6.5mm;7mm;7.5mm; 8.0mm;9mm;9.53mm; 10mm;10.5mm; 11mm;12mm;12.50mm; 12.7mm; 13mm;13.50,mm;14mm; 15mm;15.88mm;16mm; 18mm; 19mm;20mm;22mm;25mm;28mm;30mm;32mm;35mm(Non-standard can be customized)Diameter (Inch) ["]: 1/8; 1/4; 3/8; 1/2; 5/8; 3/4 (non-standard can be customized)Jacket Material: A stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840.The maximum temperature of the heating element jacket: 900 ºCResistive material: NiCr8020 High voltage stability (temperature) Rated voltage ≤24V -500V-DC> 24V 1500V-ACInsulation resistance (500 [V-DC] unheated): ≥50MΩThe maximum leakage current (253 [V-AC] unheated): ≤0.5mALength error: ± 1.5mmWattage Tolerance+5% - 10% (closer tolerances are available upon special request)Specification Requirements for OrderingInput voltage: 12V-440V (non-standard can be customized)Terminal unheated length: <3mm-20mmNon-terminal unheated length: <3mm-20mm| Density | Max 40W/CM² |
| Operating temperature | Max 927ºC |

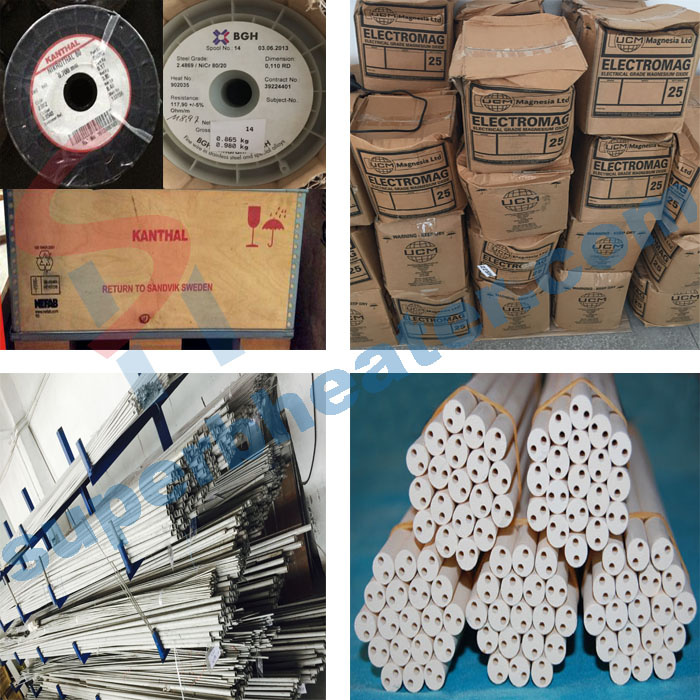

Connecting cable::a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)b. Crimp Teflon line (temperature 250 degrees)c. Crimp silicon insulated wire (temperature 200 degrees)d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.When ordering Cartridge Heaters, please specify the following information :-1.Type of Cartridge Heater ( please refer to Termination Options ).2.Ø of Cartridge Heater.3.Overall length for a straight Cartridge Heaters.4.Wattage & Voltage5.Lead type ( glass fibre / PTFE ) & lead length.Element component 1. China and Europe BGH and KANTHAL High-grade nickel chromium resistance heating wire, 2.Japan and USA MgO core, 3. Seamless Stainless steel tube 4 Built in cable, or swaged in• Special sizes, wattages, and materials are available upon request; • Custom-designed to meet your specifications.• Pin leads are availableWhy choose us:High-quality materialsInsulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...

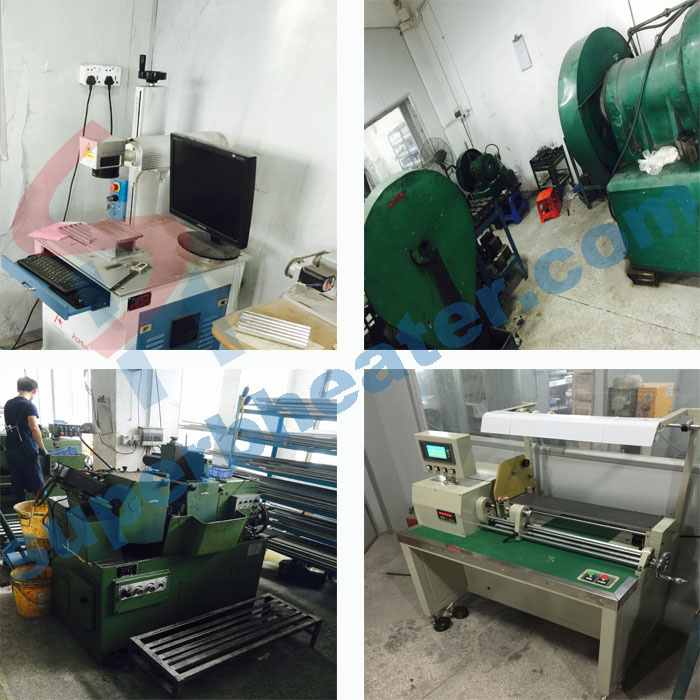

Advanced production and testing equipment

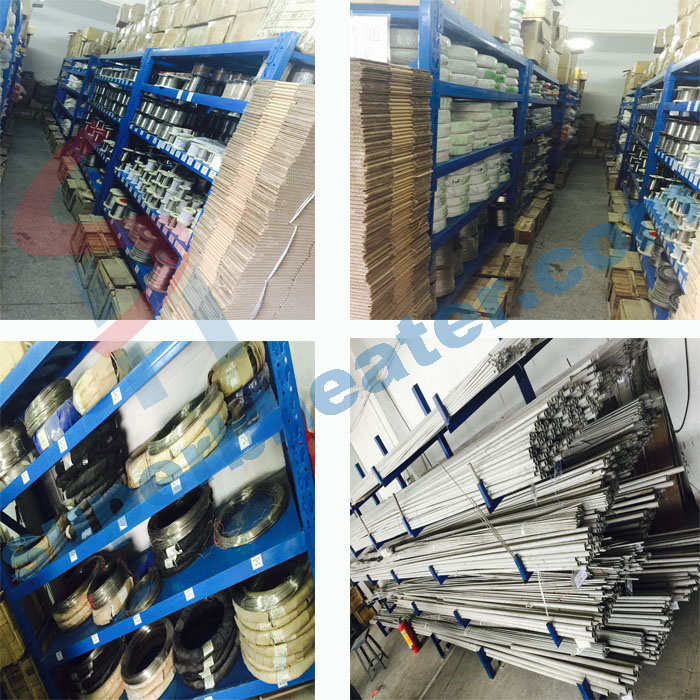

Work shop and stock

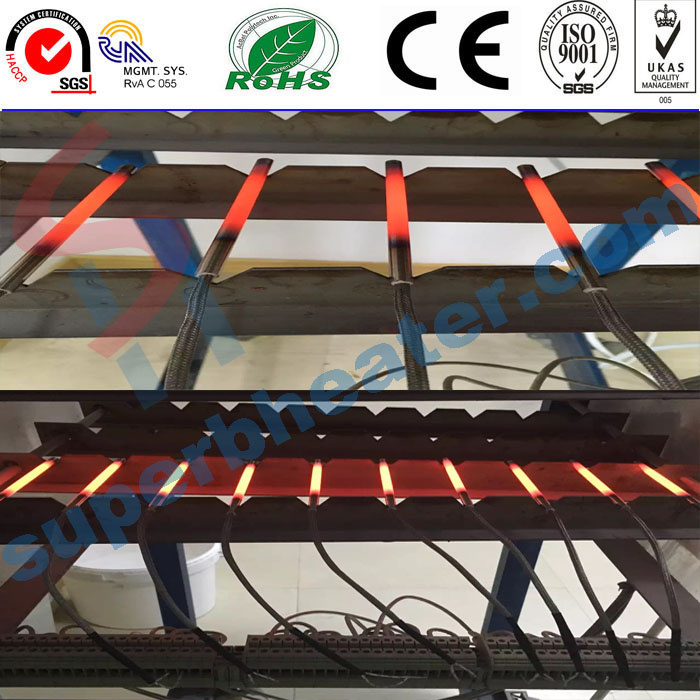

cartridge heater test:

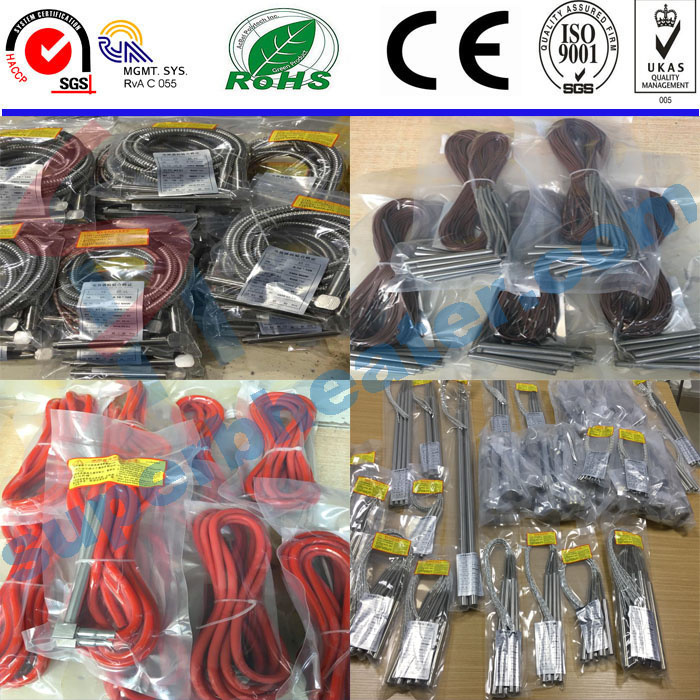

Packing and shipment:
OUR ADVANTAGES:1.Minimum order: 3pcs 2.Delivery time : in stock 1-2days ,out stock 3-7days3.More than 100 different sizes stock4.Products are divided into two gradesA grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers- Provide OEM service.
- Quality Assurance:Under normal conditions consistent with the design range : 365days
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
