| Prod Model: |
DC Gear motor GM20-130SH-EN |
| Product Name: |
DC Gear motor GM20-130SH-EN |
| Gear Type: |
spur Teeth |
| Output Shaft: |
Steel Hardened |
| Main Gear: |
Steel Hardened |
| Housing: |
Zinc Alloy |
| Bearing At Output: |
Sleeve Bearing |
| Axial Play: |
0.05-0.5mm |
| Directions: |
CW/CCW |
| Reduction Ratio: |
3-810 |
| Driver: |
outside encodered |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Drip-proof |
| Type: |
DC Gear motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description

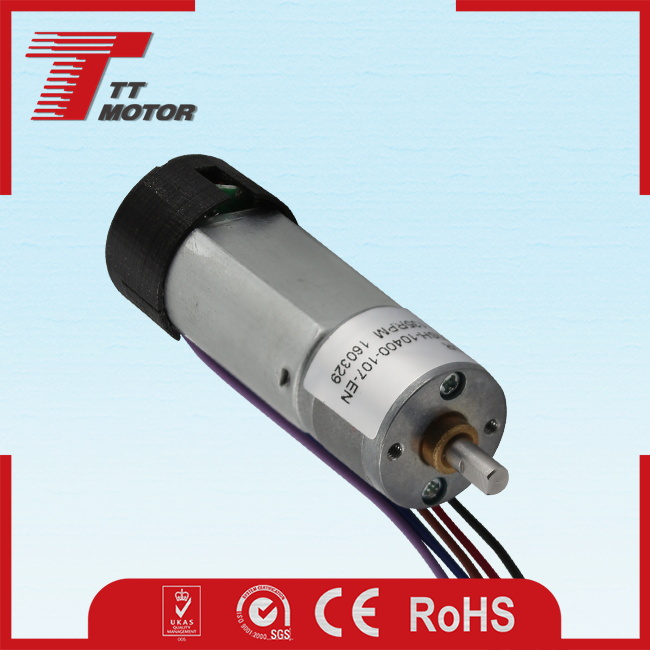

Testing machines electric 12V dc brush gear motor with encoder
Main Features
1.OEM/ODM 20mm gearbox plus 180&130 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.20mm gear motor provide 0.3Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motor can match encoder,3ppr
6.Reduction ratio:29,31,56,73,78,107,140,182,195,268,349,456,488
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TFF-130SH-14230 | 6 | 7200 | 50 | 5600 | 15 | 255 | 0.87 | 65 | 1.1 |
| TFF-130SH-11340 | 6 | 4800 | 30 | 3600 | 10 | 140 | 0.38 | 43 | 0.5 |
| TFF-130SH-11370 | 12 | 8800 | 40 | 6900 | 15 | 170 | 1.1 | 70 | 0.7 |
Gear motor technical data : GM20-130SH-14230-xxx-EN
| Reduction ratio | 29 | 31 | 56 | 73 | 107 | 182 | 268 | 349 | 456 | 488 |
| Length mm | 15.9 | 15.9 | 17.4 | 17.4 | 18.9 | 18.9 | 20.4 | 20.4 | 20.4 | 20.4 |
| No-load speed rpm | 240 | 220 | 120 | 95 | 65 | 40 | 27 | 21 | 16 | 15 |
| Rated speed rpm | 190 | 180 | 100 | 76 | 52 | 31 | 21 | 16 | 13 | 12 |
| Rated torque kg.cm | 0.3 | 0.3 | 0.5 | 0.7 | 0.9 | 1.5 | 2.0 | 2.6 | 3 | 3 |
| Max.momentary tolerance torque kg.cm | 1.3 | 1.4 | 2.2 | 2.8 | 3.8 | 5 | 5 | 5 | 5 | 5 |
Gear motor technical data : GM20-130SH-11340-xxx-EN
| Reduction ratio | 29 | 31 | 56 | 73 | 107 | 182 | 268 | 349 | 456 | 488 |
| Length mm | 15.9 | 15.9 | 17.4 | 17.4 | 18.9 | 18.9 | 20.4 | 20.4 | 20.4 | 20.4 |
| No-load speed rpm | 155 | 145 | 80 | 62 | 42 | 25 | 17 | 13 | 10 | 9.2 |
| Rated speed rpm | 131 | 123 | 68 | 52 | 36 | 21 | 14 | 11 | 8.3 | 7.8 |
| Rated torque kg.cm | 0.14 | 0.16 | 0.3 | 0.4 | 0.5 | 0.9 | 1.3 | 1.5 | 1.9 | 2.1 |
| Max.momentary tolerance torque kg.cm | 0.75 | 0.8 | 1.4 | 1.9 | 2.7 | 4 | 5 | 5 | 5 | 5 |
Gear motor technical data : GM20-130SH-11370-xxx-EN
| Reduction ratio | 29 | 31 | 56 | 73 | 107 | 182 | 268 | 349 | 456 | 488 |
| Length mm | 15.9 | 15.9 | 17.4 | 17.4 | 18.9 | 18.9 | 20.4 | 20.4 | 20.4 | 20.4 |
| No-load speed rpm | 290 | 270 | 150 | 115 | 80 | 48 | 33 | 25 | 19 | 18 |
| Rated speed rpm | 235 | 220 | 120 | 95 | 65 | 38 | 26 | 20 | 16 | 15 |
| Rated torque kg.cm | 0.3 | 0.3 | 0.5 | 0.7 | 0.9 | 1.5 | 2.0 | 2.6 | 3 | 3 |
| Max.momentary tolerance torque kg.cm | 1.4 | 1.5 | 2.3 | 3.1 | 4.1 | 5 | 5 | 5 | 5 | 5 |
