Shanghai Denghong Mechanical & Electrical Manufacturing Co., Ltd. >> Texturing Machine Used Optical Yarn Break Sensor

Texturing Machine Used Optical Yarn Break Sensor

Texturing Machine Used Optical Yarn Break Sensor
Price: Negotiable/Piece
Trade Terms: FOB,CIF,CPT
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union

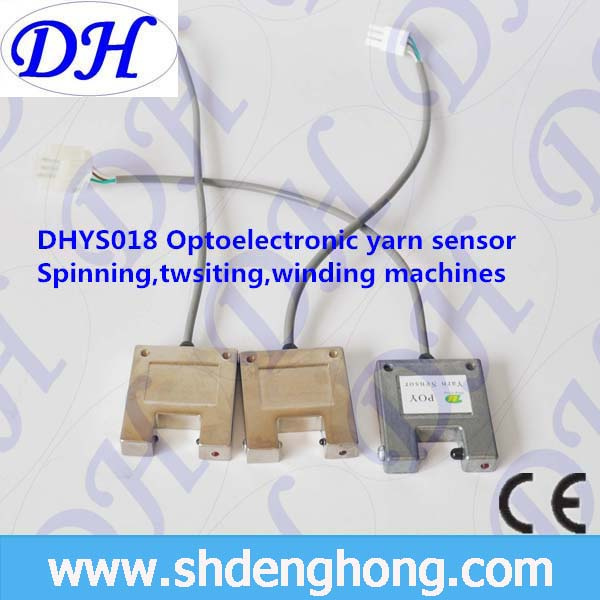

ITEM       DHYS018 optical yarn break sensor for Texturing machines
MaterialPlastic housing
Current ouputPNP output
Working Voltage18~30 VDC
Working currentMAX 1.2 A
Static current< 20 mA
Response time< 0.1 second
GuaranteeOne year without operation mistake
OriginShanghai, China
ApplicationMurata texile machines

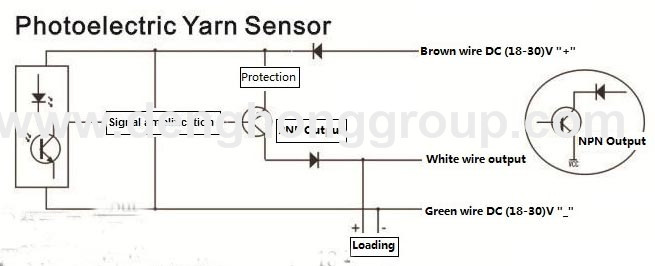

Circruit connection:



Details:

Capacitive Yarn sensors are able to be used in Winding, doubling, texturing or
Elasticizers and so on.



Main Function



Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.



Working Principle



Capacitive yarn sensor probe will check tension variations produced by electrical charges of a moving yarn.


Company introduction:



Samples are free, you only need pay the shipping fee.

Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.


Our srtongest point is that we consult. So anything you want to know about our products, please ask us!

Prod Model: DHYS018
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 24VDC
Output: NPN/ PNP
Type: Optical Yarn Sensor
Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Old name: Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers.

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers
