Yuejian Texturing Machines Rpr Yarn Sensor

Name: Yuejian Texturing Machines Rpr Yarn Sensor
Brand: all-electronics-online.com
SKU: 838286215
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product description:

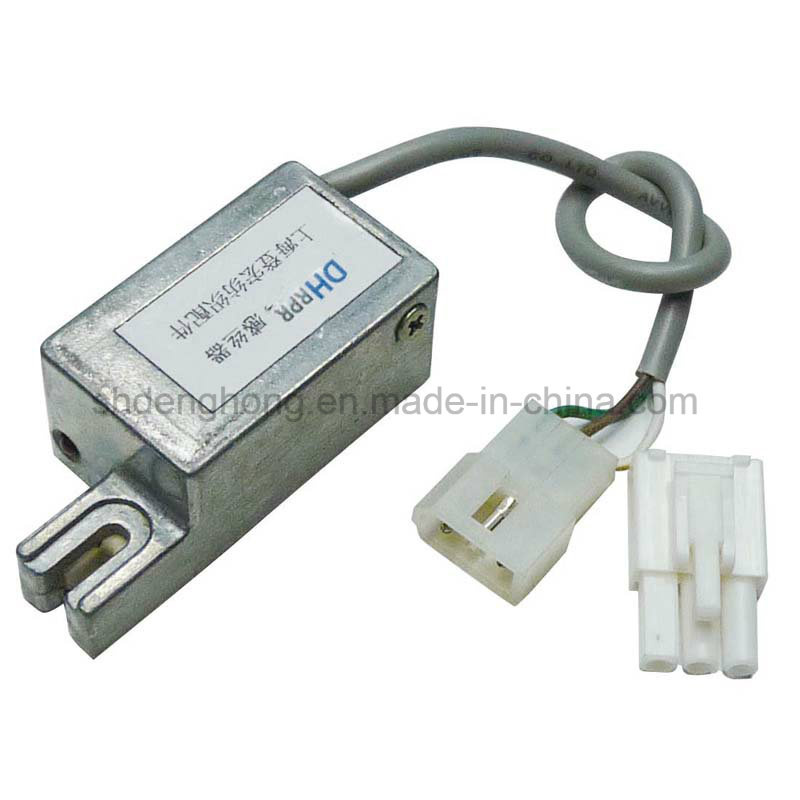

ITEM	DHYS011 RPR capacitive sensor for RPR, MURATA, RIETER texturing machines
Material	Aluminum housing
Current ouput	NPN output
Working Voltage	18~30 VDC
Working current	MAX 1.2 A
Static current	< 20 mA
Response time	< 0.1 second
Guarantee	One year without operation mistake
Origin	Shanghai, China
Application	Murata texile machines

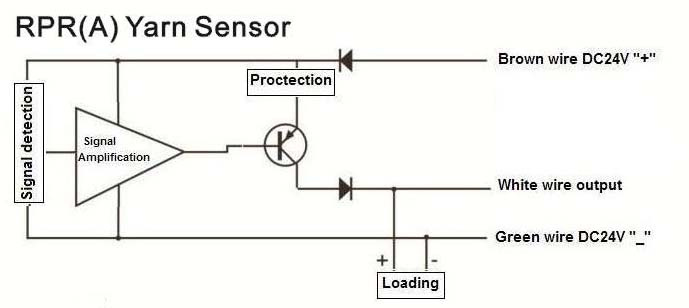

Circruit connection:

Details:

Capacitive Yarn sensors are able to be used in Winding, doubling, texturing or Elasticizers and so on.

Main Function

Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.

Working Principle

Capacitive yarn sensor probe will check tension variations produced by electrical charges of a moving yarn.

Company introduction:

Samples are free, you only need pay the shipping fee.

Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.

Our srtongest point is that we consult. So anything you want to know about our products, please ask us!

Prod Model:	DHYS011
Voltage:	24VDC
Output:	PNP
Type:	Rubbing Static Electricity
Production Process:	Electrical Board
Material:	Aluminum
Application:	Textile Machines
