The Model Ppm-T229 Pressure Transmitter for High Pressure Applicaton
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PPM-T229 |
| Pressure Range: |
0...150 MPa to 0...15000MPa |
| Certification: |
CMC |
Product Description
The model PPM-T229 pressure transmitter for high pressure applicaton
Description
The model PPM-T229 pressure transmitter has been specifically designed for high pressure applications up to 1500Mpa. This pressure transmitter features a very high long-term stability and offers high accuracy for the highest pressures. The model PPM-T229 has a particularly long service life, even in a harsh enviroment.Features
1. Long service life
2. High long-term stability
3. Wide measuring ranges: 0~150 Mpa to 0~15000Mpa
4. High accuracy: 0.25%FS or 0.5%FS
5. High reliabilityApplications
1. Water jet cutting
2. High pressure cleaning
3. Hydraulic system, hydraulic machine, booster pump
4. Oil industry, chemical industrySpecification
| Measuring medium | Gas, liquid |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Pressure range | 0~150MPa…300MPa…400MPa…600MPa…800MPa…1000MPa…1200MPa…1500MPa |
| Power supply | Sensor: 3-15VDC; transmitter:12-36VDC |
| Output signal | Sensor: 0-20mV; transmitter: 4~20mA ,0~10VDC,0~5VDC |
| Accuracy | 0.25%FS, 0.5%FS, 1.0%FS |
| Long-term stability | 0.5%FS/year |
| Medium temp | -40~+85ºC, -40~+125ºC, -40~+300ºC |
| Operation temp | -40~+85ºC, -40~+120ºC |
| Overpressure | 150%FS (1.5 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shcok resistance | 50g, 20ms |
| Process connections | G1/4, M14×1.5, 9/16-18UNF ,or other process connections on request |
| Ingress protection | IP65;IP67 |
| Electrical connections | Circular connector M12 x 1,L-connector DIN43650, 2m cable connection |
Dimensions in mm

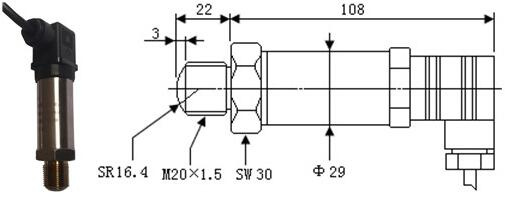

PPM-T229A

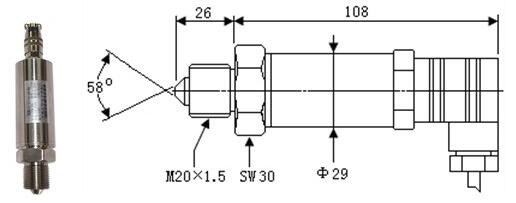

PPM-T229B

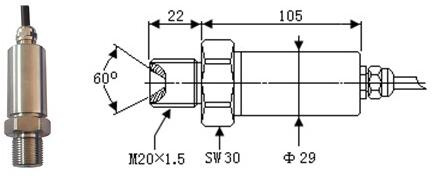

PPM-T229C

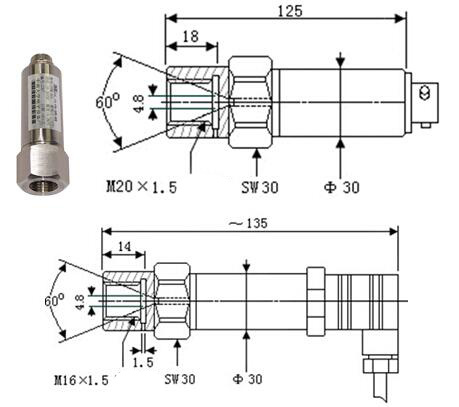

PPM-T229D

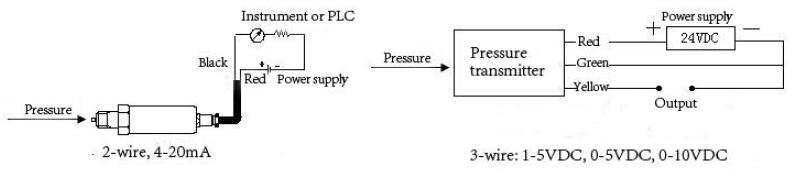

Wiring diagram
Order information
| Model PPM-T229 Pressure Transmitter |
| | Code | Pressure type |
| | G | Gauge pressure |
| | S | Sealed pressure |
| | D | Differential pessure |
| | A | Absolute pressure |
| | Code | Pressure ranges |
| | M | 0~ X MPa |
| | Code | Accuracy |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | Code | Output signal |
| | V0 | mV |
| | A1 | 4~20mA |
| | V1 | 0~5V DC |
| | V2 | 1~5V DC |
| | V3 | 0.5~4.5V DC |
| | V4 | 0~10V DC |
| | A0 | Others |
| | Code | Operation temperature |
| | T1 | -10~70ºC |
| | T2 | -25~85ºC |
| | T3 | -30~125ºC |
| | T4 | -45~150ºC |
| | T0 | Others |
| | Code | Power supply |
| | D1 | 5VDC |
| | D2 | 10VDC |
| | D3 | 24VDC(9-32)VDC |
| | D0 | Other |
| | Code | Process connection |
| | M1 | M20x1.5 |
| | M2 | M14 x1.5 |
| | M3 | M10x1 |
| | G1 | G1/4 |
| | G2 | G1/2 |
| | N1 | 1/4NPT |
| | N2 | 1/2NPT |
| | F0 | Other |
| | Code | Electrical connectiong |
| | W1 | Cable outlet |
| | W2 | DIN43650 |
| | W3 | Circular connector M12 x 1 |
| | Code | Other |
| | P1 | Commom |
| | P2 | Non-cavity diaphragm |
| PPM-T229A-G 200M 3 V0 T4 D1 M3 W1 P1 |
