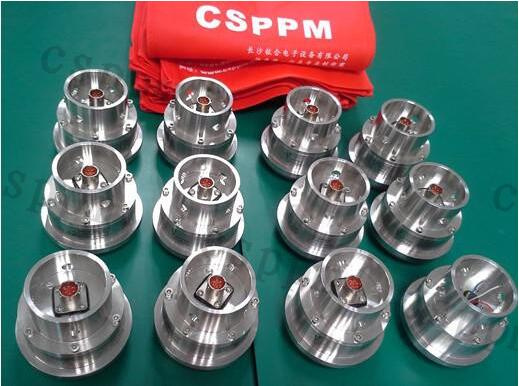

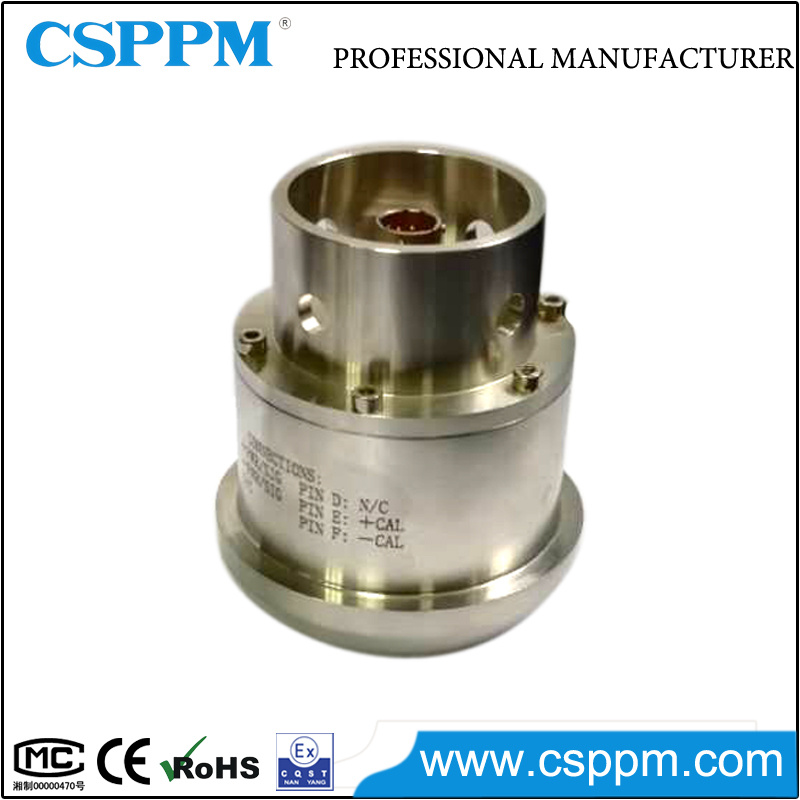

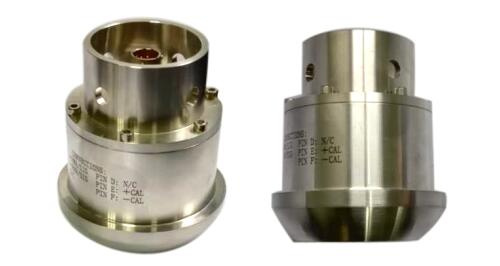

PPM-T293A hammer union Pressure Transducer for oil fields
DescriptionThe Model PPM-T293 pressure transmitters have been designed specifacally for oil field application. These pressure transmitters provide different kinds of signal output, including 4-20mA, 1-5VDC, 0-10VDC etc. The model PPM-T293 has wide measuring ranges from 0…5000PSI to 0…45000 PSI, and it features fast dynamic response speed, high accuracy, strong anti-fatigue. The hammer union pressure fitting makes it easy to install and convenience to use at oil well driling and servicing.Features
1.High accuracy: 0.25%FS or 0.5%FS
2.Shock and vibration resistant
3.Pressure up to 45,000 PSI
4.Hammer Union pressure fitting
Applications
Oil well drilling and servicing, Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing,Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.Specification
| Tested Media | Wet Soil,Oil,Corrosive liquidand gas |
| Pressure type | Gauge pressure(G), Sealed pressure(S), Vent Pressure(V) |
| Full Scale Pressure Range | 0~105MPa,150MPa,200MPa ,300MPa |
| Supply Voltage | 10-32VDC |
| Output Signal | 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V |
| Non-Linearity | 0.04%FS |
| Repeatability | 0.04%FS |
| Combined Accuracy | 0.1%FS,0.2%FS,0.5%FS
Alternative |
| Long-Term Stability | 0.1%FS/Year
(representative value) |
| Operating Temperature | -43~85ºC/125ºC |
| Compensated Temperature | -25~70ºC/100ºC |
| Response Time | ≤1mSec(representative value) |
| Insulation Resistance | ≥500 MΩ/100V |
| Safety overload pressure | 200%FS(2 Times Full Range,
special: 5 Times Full Range) |
| Rupture pressure | 500%FS(5 Times Full Range,
special: 10 Times Full Range) |
| Shock Limitation | About 10g/0~2000HZ |
| Impact Resistance | About 50g/1ms |
| Connection | Chuck type seal or specified |
| Wetted Materials | 17-4PH stainless steel |
| Relatvie Humidity | 0~100% RH |
| Degree of Protection | IP67 |
| Electrical Connection | Aviation connector |

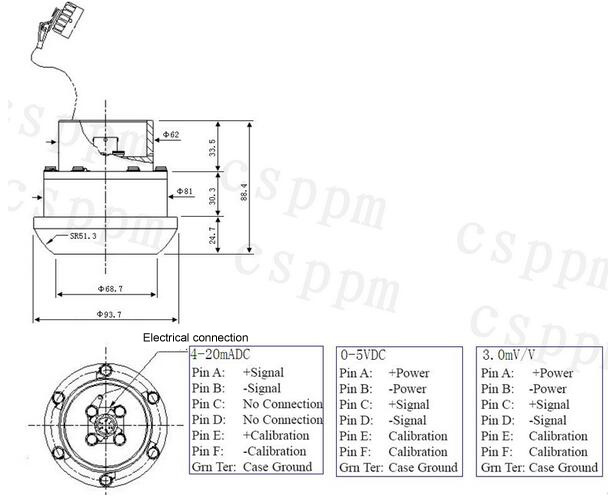

Dimensions in mm
Wiring diagram

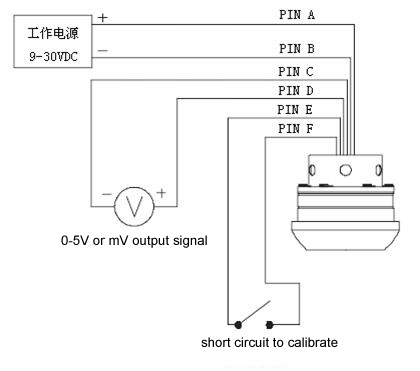

Output signal:0-5VDC, mV

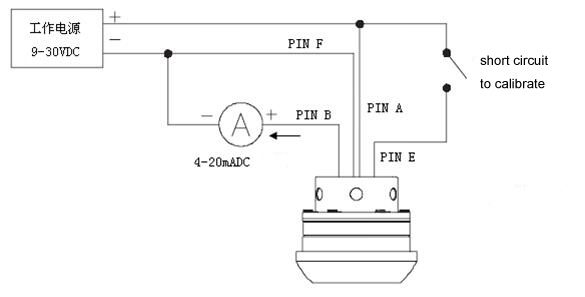

Output signal:4-20mA
Order information| Model PPM-T293A Pressure Transmitter |
| | Code | Pressure type |
| | G | Gauge pressure |
| | S | Sealed pressure |
| | D | Differential pessure |
| | A | Absolute pressure |
| | Code | Pressure ranges |
| | M | 0~ X MPa |
| | Code | Accuracy |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | 4 | 0.075% |
| | Code | Output signal |
| | V0 | mV |
| | A1 | 4~20mA |
| | V1 | 0~5V DC |
| | V2 | 1~5V DC |
| | V3 | 0.5~4.5V DC |
| | V4 | 0~10V DC |
| | A0 | Others |
| | Code | Operation temperature |
| | T1 | -10~70ºC |
| | T2 | -25~85ºC |
| | T3 | -30~125ºC |
| | T0 | Others |
| | Code | Power supply |
| | D1 | 5VDC |
| | D2 | 10VDC |
| | D3 | 24VDC(9-32)VDC |
| | D0 | Other |
| | Code | Electrical connectiong |
| | W1 | Cable outlet |
| | W3 | Circular connector M12 x 1 |
| | Code | Other |
| | P1 | Commom |
| | P2 | Non-cavity diaphragm |
| |
