Description
It is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor. The temperature sensor is affected by the temperature to produce a differential voltage signal. This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.

Features
They can measure temperatures of liquid, steam,gas and solid in producing.
Characteristics are shock resistant, high-temperature resistant and long life.
Used for temperature measuring and automatic controlling in scope from -200 to 600ºC.

Specification

Measuring Media	Liquids, gases
Pressure rating	40 MPa
Measuring element	Pt100
Measuring range	From -50...100ºC to -200...600ºC
Power supply	12-32VDC
Output	4-20mA, 0-5VDC or 0-10VDC optional
Accuracy	0.25%FS
Ambient temperature	-40~85ºC
Storage temperature	-40~85ºC
Temperature coefficients	0.25%/10ºC
Ambient humidity	95%RH
Dynamic response	0.3s
Protection	IP65
Process connection	G1/4, M20*1.5, or other on request
Electrical connection	DN43650 L-connector
Materials	Wetted parts: stainless steel Housing: stainless steel
Probe diameter	Φ4,Φ6...Φ16 optional
Installation length	10, 25...500 mm optional

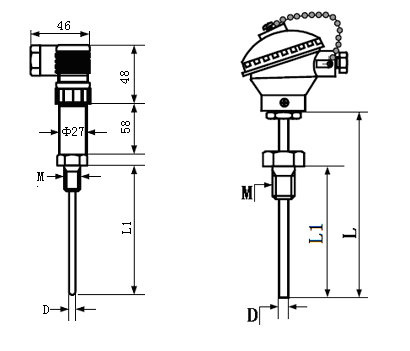

Dimensions in mm

Prod Model:	PPM-WZPB
Certification:	CMC
