Thermal Resistance with Threaded Cone Connector (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex

Product Description

Thermal Resistance with Threaded Cone Connector


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Type	Graduation	Measuring range ºC	Thermal Response Time	Specification
				d	L
WZP-620 WZP2-620	Pt100	-200~500	<90S	Φ15	300*150 350*200 400*250 450*300 500*350 550*400 650*500
WZP-620A WZP2-620A			<24S
WZP-630 WZP2-630			<45S
WZP-630A WZP2-630A			<24S
WZC-620 WZC-620A	Cu50 Cu100	-50~100	<120S
			<40S
WZC-630 WZC-630A			<120S
			<40S

1)  Type 620,621 for anti-spray type, protection class IP65;
Type 630,631 for water-proof type, protection class IP55;

Protection tube material is 1Cr18Ni9Ti, and we also produce the resistance with protection tube of other material.
3)Normal pressure < 30Mpa

Model type	thread specification
	code	M
WZP-620		M33*2
WZP-620	A	NPT1
WZP-630		M33*2
WZP-630A	A	NPT1

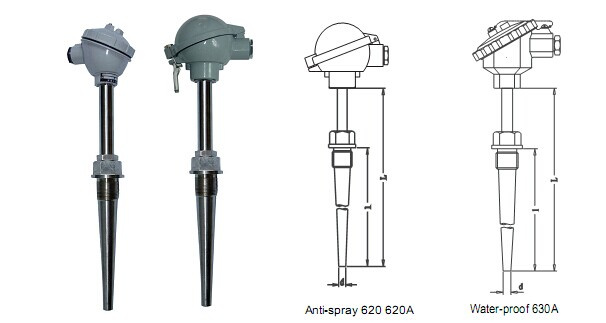

Diagram:
It can be suctomized according to your requirements.
