Threaded Base Station M4 Bt3002 Cable Connector

Prod Model:	pt-c-004
Connectors:	M4
Vswr:	Less Than 1.20
Impedance:	50ohm

Product Description

                    Threaded Base Station M4 BT3002 Cable Connector

Company profile

Shanghai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company  covering cable and accessories manufacturing, engineering  service and trading.

As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable  and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field.  Xiaowei also supply VHF vabor phone, WLAN system.

Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.

Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide.  With the develop of the business, Xiaowei extend  the service to the international trading.

Connector

Coaxial connector is used to connect feeder to antenna, feeder to feeder, feeder to instruments. It has Low VSWR and good PIM3. They could be manily devided into following types: N, Din(7-16), C, BNC, TNC, SMA, 4.2/10. Its Developmnet trend: miniaturization, high frequency, multi-function, low VSWR, large capacity and low power.

haracteristic Impedance	75ohm
Frequency Range	DC-3GHz
VSWR	1.15
Dielectric withstanding voltage	≥500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Outer Contact≤2mΩ ;Center Contact≤3mΩ

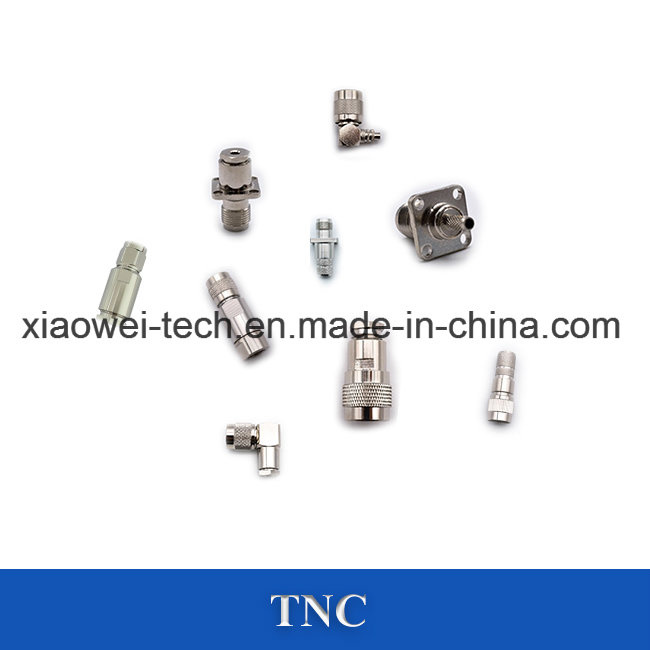

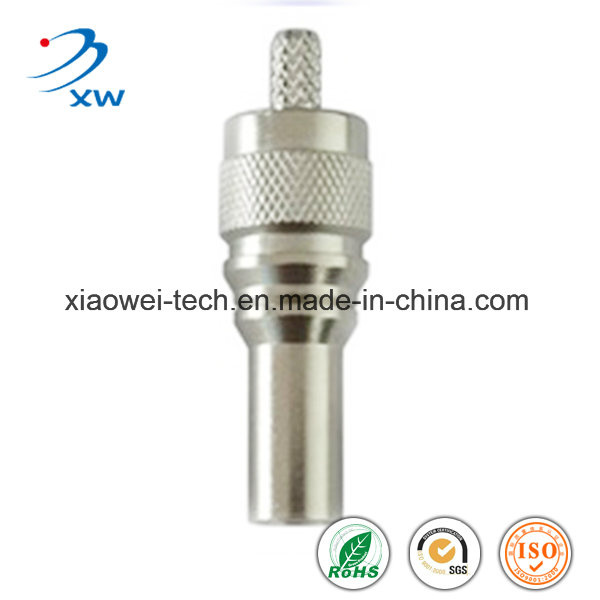

Detailed Images
