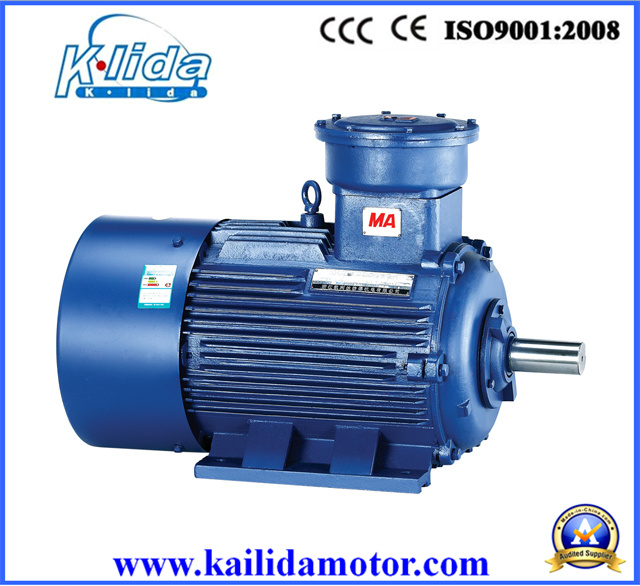

Three Phase AC Explosion-Proof Asynchronous Electric Motor with Ce

Explosion-Proof Of ExdI YB2 Series Electric Motor For Coal Mine


PICTURES:


Technical paramete
Series Name:
YB2
Certificate:CE,ISO9001,CCC,ROHS
Phase:Three Phase
Housi
ngAluminium/Cast iron
Voltage:220V-660
V
Rate Frequency50HZ-60HZ
Current1.5A-465A
Standard:IE1
Wire:100% copper
Frame Size:63-355(mm)
Frame mate
rialaluminium body(56-132 frame), cast iron(71-355 frame)
Poles:2,4,6,8
Duty:Continous S1
Insulation Class:F
IP:55
Speed590-2980r/min
Ambient Temperature-15°C-40°C
Model of CONEECTION
Y-Connection f
o
r 3 KW motor or less
while DeltaConnection for 4 KW motor or more

IM:Horizontal / Vertical
Delivery Time:30 Days
Packageply-wooden box/pallets


Kailida motors adva
ntage:


Prompt Quotation.
Competitive Price
Guaranteed
 Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.


Certificates:

Zhejiang Kailida Explosion-proof Electromechanical Co.,Ltd has complete equipments and excellent staff with more than 20 years' experience in electromechanical field. Our products are as below:
1. Explosion-proof electric motors: YB2 ,YB3 series
2. High efficiency electric motors: YX3 series
3. 3-phase and 1-phase electric asynchronous motors: Y ,Y2 ,Y3 / YY , YC , YL series
4. Welding machine: MMA, MIG, NBC, KR, TIG, WSM, CT, MZ, etc.
5.Water Pump: centrifugal pump, submersible pump, votex pump, etc.
6. Spare parts: for electric motors; for welding machine; for water pumps

With ISO9001:2000, CCC, CE , QS,MA,and EX certificated, our products have good reputation for good quality and competitive price which brings us more and long-term customer.




Three phase asynchronous motor is totally enclosed and fan-cooling, three-phase squirrel cage induction motor, that is newly designed in conformity with the relevant requirements of IEC standards. These motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.

They are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machinery, etc.
